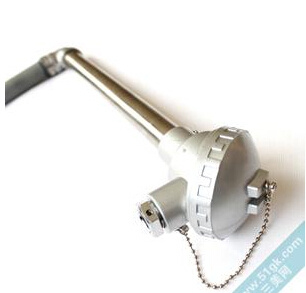

Thermocouple with Right Angle Elbow (CX-WR)

Prod Model:	CX-WR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	-200-1800c
Fixing:	Thread/Flange/None
Connection:	Terminal Box/Compensation Cable/Plug
Probe Length:	Custom
Thermocouple Wire Element:	Simplex/Duplex
Graduation:	K,N,E,T,J
Pakage:	Wooden Box
Thermalwell Material:	Ss304,316,Inconel601
Accuracy:	5%

Product Description

Thermocouple with Right Angle Elbow


Application:

It is used on production spot with high temperature or harmful gas which has effect on
junction box of thermocouple. Or that not suitable for direct horizontal or vertical
installation.

Main technical parameter

Electric outlet: M20*1.5, NPT1/2
Accuracy class: I,II
Protection class: IP65
Normal pressure: normal pressure


How to choose?
1.Diameter and length:Can be customized as customer's requirements
2.Junction box: water-proof type, splash-proof type, anti-explosion type, connector type,import type.
3.Fixed device: flange/none/screw.
4.Temperature Range: 0-1800 centigrade .
5.Terminal blocks: terminals box

Selection table:

Type	Graduation	Measuring Range ºC	Thermal Response Time	Protection Tube Material	Specification L*1
WRN-530	K	0-800	<90S	1Cr18Ni9Ti	300*150 350*200 400*250 450*300 500*350 550*500 600*450 650*500
WRN2-530
WRE-530	E	0-700
WRE2-530
WRN-530	K	0-800
WRN2-530
WRE-530	E	0-800
WRE2-530



Class-1 thermocouple shall be ordered according to agreements.
Specification L is only for reference if no special indication, and insert length of thermocouple shall be size U of thermal sleeve.



Diagram:
It can be suctomized according to your requirements.


After-sales service:
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

Payment Terms:
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal
