Thermonuclear Temperature Transmitter (QT-B107)

Name: Thermonuclear Temperature Transmitter (QT-B107)
Brand: all-electronics-online.com
SKU: 681060181
Availability: InStock
Rating: 5 (109 reviews)

Price:	US $ 120/Piece
Trade Terms:	FOB,CFR,DDP
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QT-B107
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Anti-Explosion Type:	Exiaiict6
Application:	Oil, Chemical, Metal, Electricity, Water
Output Signal:	(Two-Wire) 4~20madc;(Three-Wire)1~5VDC
Accuracy:	≤±0.5%Fs ±1.0%Fs
Material:	Stainless Steel

Product Description

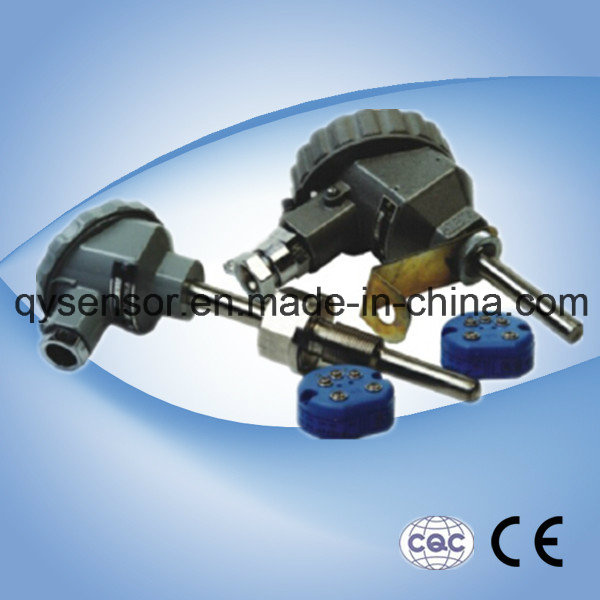

Temperature Transducer/Transmitter/Sensor QT-B107

QT-B107 series temperature transmitter use special temperature module. Can modify all kinds if thermal thermocouple and thermo-resistance, output standard signal. Have characteristics of high precision, good stability, good capability of anti-interfering, waterproof, blast-proof, temperature resistance, and anti-vibration. The body's configuration is casting and stainless steel. The zero and range can be constantly adjusted.

Advantage
-Higher accuracy
-Good linearity and long term stability
-Does not require a cold joint compensation
-No special extension lead
-Less affected by noise
-The transmitter sensor with matching characteristics with Rosemount transmitters "match"

Limitation
-Maximum temperature limits lower
-In the application without thermowell, the response time is slower

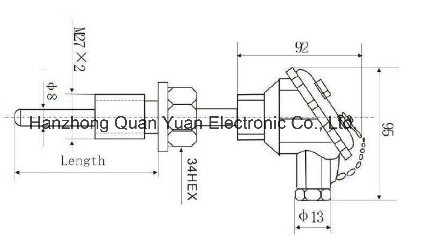

Dimensions:

Specifications:

Pressure range	-55ºC~1200ºC

Accuracy	≤±0.5%FS ±1.0%FS

Power supply	24 Vdc (12-30) VDC

Signal output	(Two-wire) 4~20mADC

	(Three-wire)1~5VDC
	(Three-wire)1~5VDC

Operating temperature	-20ºC~80ºC

Connection size	M27×2 or ceramic pipe or as user's choose

Medium	Gas and liquid compatible with 316LSS
