| Prod Model: |
XCK-J121 |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Western Europe |
| Max.Current: |
10A |
| Max. Voltage: |
660V |
| Color: |
Blue |
| Degree Of Protection: |
IP40 |
| Operating Temperature: |
10-60 |
| Pack Size: |
45X64X24 |
| Manufacturer: |
OEM |
| Condition: |
Original New |
| A Case Of Quantity: |
50 |
| A Case Of Weight: |
26kg |
| Protection: |
Dust-Proof |
| Size: |
Normal Size |
| Environment: |
﹤250℃ |
| Breaking Capacity: |
Micro-Current |
| Breaking Form: |
Single Type |
| Pressing Type: |
Rotary |
| Application: |
Widely Used |
| Brand: |
Winston |
Product Description

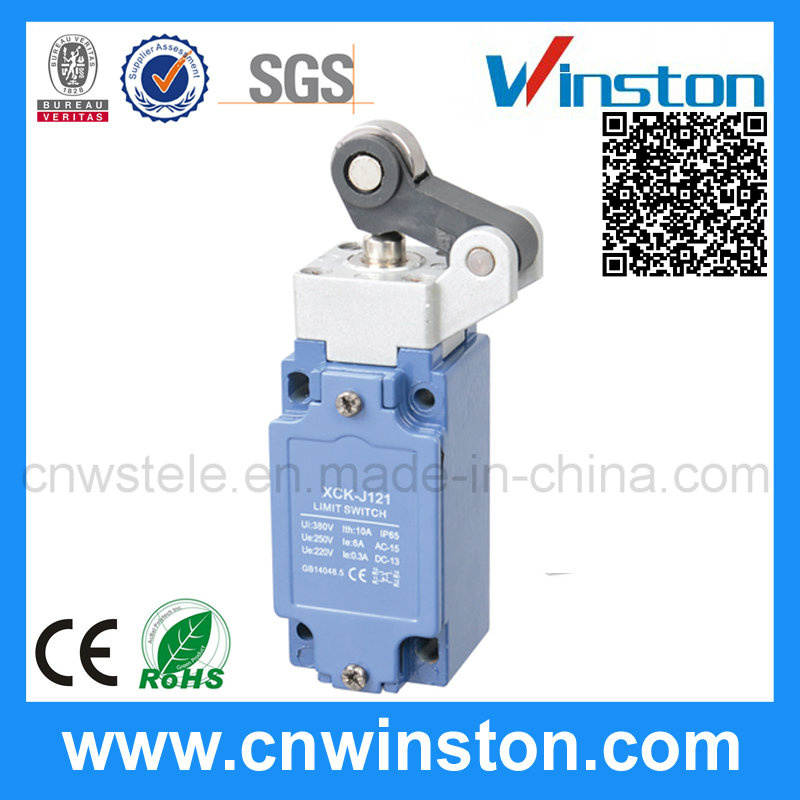

XCK-J121 limit switch shell adopts special alloy metal.Suitable for AC 50~60HZ:AC380V,DC220V,AC10A communication control circuit,As machine tools, machinery, automatic control, limit movement, the transmission mechanism or a program control.
1.Able to work in 25 ~ + 40 ºC ambient temperature:At an altitude of 2000 m; Protective class IP65; Accord with IEC337-1, GB14048.5-2001 standard
2.At an altitude of 2000 m; Protective class IP65; Accord with IEC337-1, GB14048.5-2001 standard
3.Shell is composed of special alloy metals, structure, strong and durable
4.Small volume, can waterproof, prevent oil
5.Hidden within the micro switch programses piece structure, mechanical life longer
6.With a larger OT action
7.Easy wiring duct design
8.Actuator variety, convenient use, action position can be adjusted freely
Main technology data:
| Item | XCK-J model double insulation,according to CENELEC EN50041 |
2-pole conact terminal
quick | Metal head direcacting type | Metal stell-roller direcacting type | Metal thermoplastic roller tumbler directing type | Adjustable length and thermoplastic roller tumbler type |
Metal thermoplastic cylindrical tumbler type
diameter=6mm
length=200mm |
Thermoplastic roller tumbler directing type,Single direction with horizontal movement | Multidirection
type |
| Machime life(million times) | 30 | 25 | 30 | 30 | 30 | 15 | 30 |
| Motion speed(m/s) | 0.5 | 1 | 1.5 | 1.5 | 1.5 | 1 | 1.5 |
| Protection degree | IP65 |
| Rated work charcters | AL TIPAK AC 15;A 300(UE=240V,LE=3A)AL TIVAR DC13;Q 300(UE=250V,LE=0.27A) |
Boundary dimensions:
(width*depth*heigh) | 41x41x77 |
| Complete Switch(2 poles 1-close+1-ope,quick) | XCK-J161
XCK-L1161 | XCK-J167 | XCK-J10511
XCK-J10531 | XCK-J10541
XCK-J139 | XCK-J10559 | XCK-J121 | XCK-J108 |
PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
