Wuxi Huishan Automatic Controller Co., Ltd. >> Thermostat by Mechanical Using for Floor Heating

Thermostat by Mechanical Using for Floor Heating

Thermostat by Mechanical Using for Floor Heating
Price: US $ 3.1-3.5/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: TR-90
Color: White
Dimension: 80X80X37 Cm
Sensor: Gas Filled Sylphon
Operation: Knob Adjustable
Usage: Air Conditioner
Control Type: Mechanical
Type: Temperature Controller
Material: ABS Plastic
Control Method: Mechanical

Product Description

For central air conditioner or heating appliance for room thermostat.


Specifications
ModelTR-90
Temperature range5`30 ºC
Voltage250 V/AC
Current16(4) A
Resistance load16 A
Inductive load4 A
Frequency50/60 Hz
Differential1 ºC




Packaging50 pcs/CTN
G.W.9 KGS

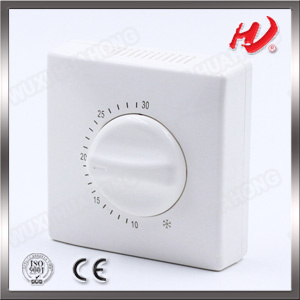

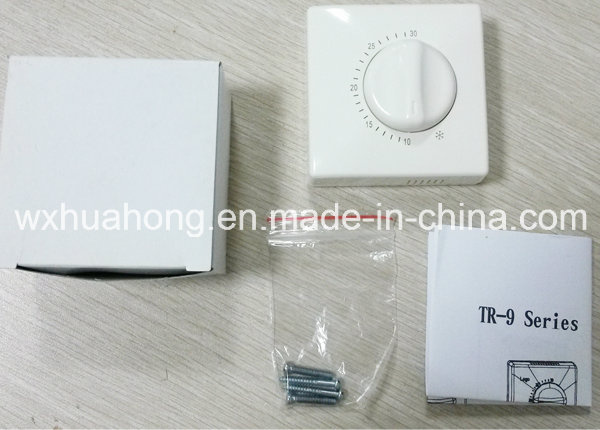

Product images

without LED indicator,
without ON/OFF switch,
without Heating, cooling switch,





Payment terms
SamplesPaypal


Western Union
Orders30% T/T in deposit, balance against B/L copy


Irrevocable L/C at sight

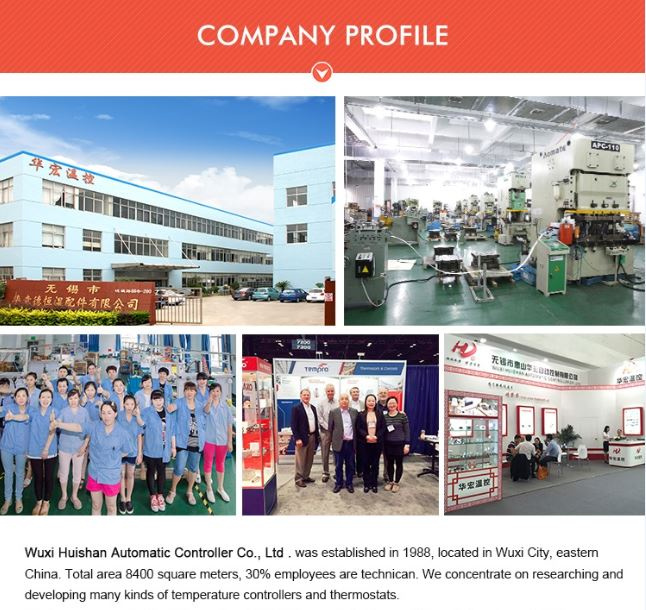

Company information

Wuxi Huishan Automatic Controller Co. Ltd., was founded in 1988. We are located in Wuxi city, which is 40 mins Far away From Shanghai by train. Financial and commercial center of China. After 20 years development, we have set up a new 8400m2 standard moredn workshop, equipped with advanced machinery and testing laboratory which enable us to be a professional manufacturer for temperature control porducts. 35% of our employees are mechanic and engineer and we are ISO9001: 2000 approved.

After 20 years continuous of developing, we have been producing high quality of room thermostats, thermostatic valves, thermostatic heads, liquid sensor for TRV, temperature and pressure safety valve, industrial thermostats, pressure switches, flow switches etc. We produce strictly according to the standard with a result that many products are CQC, EN215, CE, VDE, RoHS approved. With over 10 years export experience, we expanded our market to Europe, Middle East, North America, South America, and some of our customers are famous for international companies. We also offer OEM and ODM services to our customers, based on our strong technical force. For the same reason our customers are satisfied with our quality and service. Our production capacity is over than 3 million piecess. Looking forward to developing the market and technology togther with our overseas partners, and build up a mutual prosperous future.
