| Prod Model: |
THHN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturer: |
Factory |
| Certificate: |
ISO,Ce |
| Type: |
Insulated |
| Application: |
Heating |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Conductor Type: |
Solid or Stranded |
| Conductor Material: |
Copper or Tinned Copper |
| Sheath Material: |
Nylon |
| Range Of Application: |
Heating |
| Brand: |
Jytop |
Product Description
APPLICATION Suitable for use as follows:
THHN or THWN-2* conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the National Electrical Code 2;
When used as Type THHN, conductor is suitable for use in dry locations at temperatures not to exceed 90° C;
When used as Type THWN-2*, conductor is suitable for use in wet or dry locations at temperatures not to exceed 90° C or not to exceed 75° C when exposed to oil or coolant;
When used as Type MTW, conductor is suitable for use in wet locations or when exposed to oil or coolant at temperatures not to exceed 60° C or dry locations at temperatures not to exceed 90° C (with ampacity limited to that for 75° C conductor temperature per NFPA 79)
Conductor temperatures not to exceed 105° C in dry locations when rated AWM and used as appliance wiring material. Voltage for all applications is 600 volts
STANDARDS & REFERENCE
THHN or THWN-2* or MTW (also AWM) meets or exceeds all applicable ASTM specifications, UL Standard 83, UL Standard 1063 (MTW), Federal Specification A-A-59544, and requirements of the National Electrical Code.

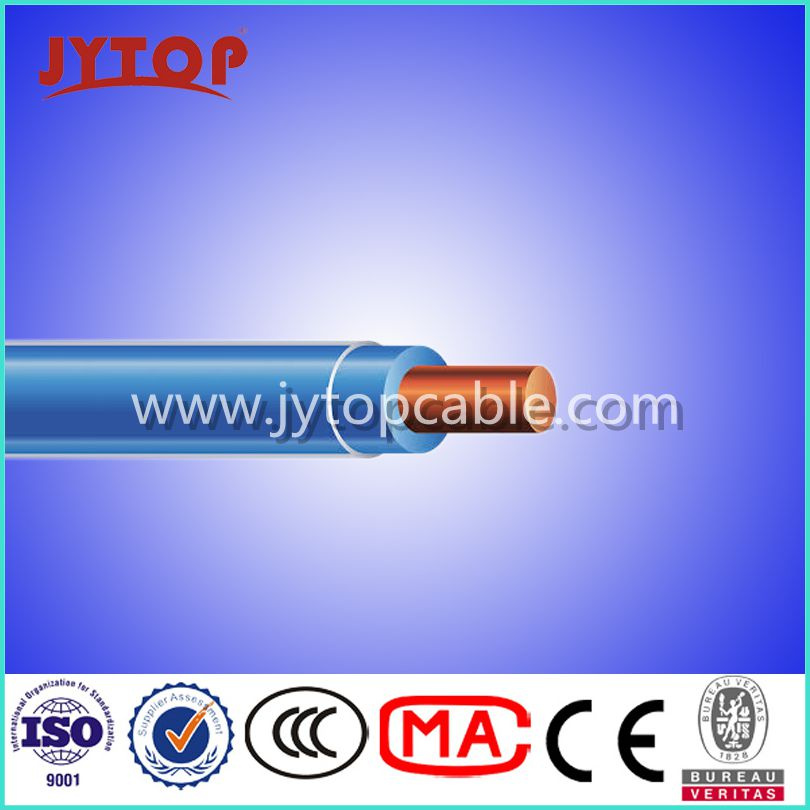

CONSTRUCTION
THHN or THWN-2* or MTW copper conductors are annealed (soft) copper, insulated with a tough heat and moisture resistant polyvinyl chloride (PVC), over which a nylon (polyamide) or UL-listed equal jacket is applied Available in black, white, red, blue, green, yellow, brown, orange, and gray; Some colors standard, some subject to economic order quantity
Conductor sizes 2 AWG and larger listed and marked sunlight-resistant in black only
SPECIFICATION
MTW or THHN or THWN-2
Conductors shall be UL-listed Type MTW or THHN or THWN-2* gasoline and oil resistant II, suitable for operations at 600 volts as specified in the National Electrical Code. Sizes 14 through 1 AWG shall be rated VW-1, larger sizes shall be listed for CT use. Sizes 2 AWG and larger listed and marked sunlight-resistant in black only. Conductors shall be annealed copper, insulated with high-heat and moisture resistant PVC, jacketed with abrasion, moisture, gasoline, and oil resistant nylon or listed equivalent
AWM
Conductors shall be UL-listed Type THHN or THWN-2* or MTW or AWM, suitable for
Operation at 600 volts at conductor temperatures not to exceed 105° C.
| Conductor | Insulation
Thickness
(mils) | Jacket thickness
(mils) | Nominal O.D | Approx. net weight/1000ft | Allowable ampacities |
Size
(AWG or kcmil) | Strands | Solid | Stranded | Solid | Stranded | 60 0 C | 75 0 C | 90 0 C |
| 14 | 19 | 15 | 4 | 102 | 109 | 15 | 16 | 15 | 15 | 15 |
| 12 | 19 | 15 | 4 | 119 | 128 | 23 | 24 | 20 | 20 | 20 |
| 10 | 19 | 20 | 4 | 150 | 161 | 37 | 38 | 30 | 30 | 30 |
| 8 | 19 | 30 | 5 | / | 213 | / | 62 | 40 | 50 | 55 |
| 6 | 19 | 30 | 5 | / | 249 | / | 95 | 55 | 65 | 75 |
| 4 | 19 | 40 | 6 | / | 318 | / | 152 | 70 | 85 | 95 |
| 3 | 19 | 40 | 6 | / | 346 | / | 188 | 85 | 100 | 110 |
| 2 | 19 | 40 | 6 | / | 378 | / | 234 | 95 | 115 | 130 |
| 1 | 19 | 50 | 7 | / | 435 | / | 299 | 110 | 130 | 150 |
| 1/0 | 19 | 50 | 7 | / | 474 | / | 371 | 125 | 150 | 170 |
| 2/0 | 19 | 50 | 7 | / | 518 | / | 461 | 145 | 175 | 195 |
| 3/0 | 19 | 50 | 7 | / | 568 | / | 574 | 165 | 200 | 225 |
| 4/0 | 19 | 50 | 7 | / | 624 | / | 717 | 195 | 230 | 260 |
| 250 | 37 | 60 | 8 | / | 694 | / | 850 | 215 | 255 | 290 |
| 300 | 37 | 60 | 8 | / | 747 | / | 1011 | 240 | 285 | 320 |
| 350 | 37 | 60 | 8 | / | 797 | / | 1173 | 260 | 310 | 350 |
| 400 | 37 | 60 | 8 | / | 842 | / | 1333 | 280 | 335 | 380 |
| 500 | 37 | 60 | 8 | / | 926 | / | 1653 | 320 | 380 | 430 |
| 600 | 61 | 70 | 9 | / | 1024 | / | 1985 | 355 | 420 | 475 |
| 750 | 61 | 70 | 9 | / | 1126 | / | 2462 | 400 | 475 | 535 |
| 1000 | 61 | 70 | 9 | / | 1275 | / | 3254 | 455 | 545 | 615 |
