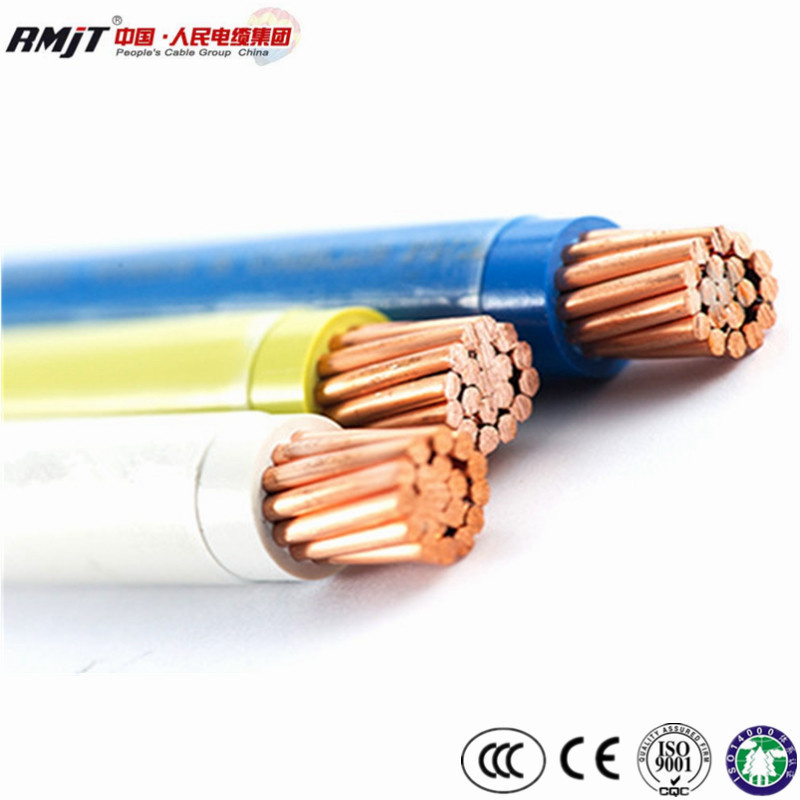

Thhn Thw Electrical Wire Cable
| Price: |
US $ 50-62/Roll |
| Min Order: |
100/Roll |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
Electric Wire |
| Rated Voltage: |
300/500V,450/750V |
| Standard: |
IEC, JIS, BS, Asin, DIN and So on |
| Color: |
Required |
| Type: |
Insulated |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Conductor Type: |
Solid or Stranded |
| Application: |
Building or Constrction |
| Range Of Application: |
Home or Building |
| Brand: |
Rmjt |

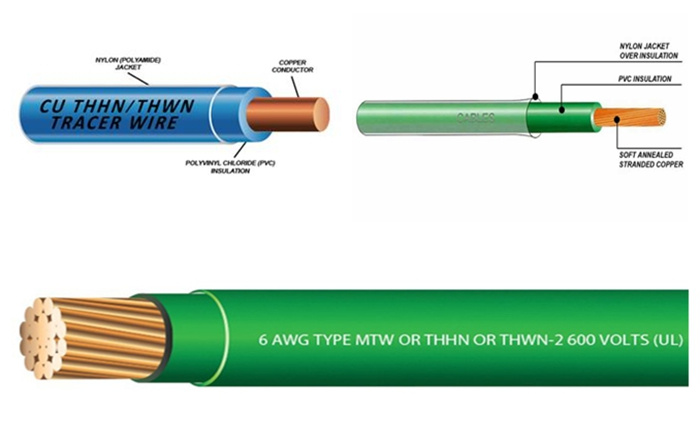

Product Description
Conductor:
Copper/Aluminum/Copper clad aluminum
Insulation:
PVC/PE/HDPE/XLPE
Apply voltage:
300/300V 300/500V 450/750V
Ambient Temperature:
Above 0°C
Operation temperature:
For PVC insulated wire, Operating temperature should not exceed 70°C except for Type 08.
Type 08 will allow 105°C.
Technical Parameters:
| Item Spec. | AWG SIZE | No./Diameter of conductor
(mm) | Insulation thickness
(mm) | Max.outer diameter (mm) | Ref .Weight(km/kg) |
| THW-16B | 16 | 7/0.49 | 0.76 | 2.8 | 19 |
| THW-14B | 14 | 7/0.62 | 0.76 | 3.4 | 29 |
| THW-12B | 12 | 7/0.78 | 0.76 | 3.9 | 42 |
| THW-10B | 10 | 7/0.98 | 0.76 | 4.5 | 62 |
| THW-8B | 8 | 7/1.23 | 1.14 | 6 | 103 |
| THW-6B | 6 | 7/1.56 | 1.52 | 7.8 | 169 |
| THW-4B | 4 | 7/1.96 | 1.52 | 9 | 249 |
| THW-3B | 3 | 7/2.20 | 1.52 | 9.7 | 306 |
| THW-2B | 2 | 7/2.47 | 1.52 | 10.5 | 376 |
| THW-1B | 1 | 19/1.68 | 2.03 | 12.5 | 487 |
| THW-1/0B | 1/0 | 19/1.89 | 2.03 | 13.6 | 600 |
| THW-2/0B | 2/0 | 19/2.12 | 2.03 | 14.7 | 739 |
| THW-3/0B | 3/0 | 19/2.38 | 2.03 | 16 | 912 |
| THW-4/0B | 4/0 | 19/2.67 | 2.03 | 17.5 | 1130 |
| THW-16A | 16 | 1/1.29 | 0.76 | 2.9 | 19 |
| THW-14A | 14 | 1/1.63 | 0.76 | 3.2 | 27 |
| THW-12A | 12 | 1/2.05 | 0.76 | 3.6 | 39 |
| THW-10A | 10 | 1/2.59 | 0.76 | 4.1 | 59 |
| THW-8A | 8 | 1/3.26 | 1.14 | 5.6 | 98 |
AWG TW WIRE SPECIFICATION
SIZE AWG
MCM | CROSS SECTION
AL mm2 | STRANDING number of
wire x diametre mm | INSULATION
THICKNESS mm | EXTERNAL
DIAMETER mm | TOTAL WEIGHT
KG/KM |
| 20 | 0.52 | 1×0.813 | 0.76 | 2.33 | 9.81 |
| 18 | 0.82 | 1×1.02 | 0.76 | 2.54 | 13.16 |
| 16 | 1.31 | 1×1.29 | 0.76 | 2.81 | 18.1 |
| 14 | 2.08 | 1×1.63 | 0.76 | 3.15 | 26.1 |
| 12 | 3.31 | 1×2.05 | 0.76 | 3.57 | 38.3 |
| 10 | 5.26 | 1×2.59 | 0.76 | 4.11 | 57.4 |
| 8 | 8.34 | 1×3.26 | 1.14 | 5.54 | 95.2 |
| 14 | 2.08 | 7×0.62 | 0.76 | 3.38 | 27.8 |
| 12 | 3.31 | 7×0.78 | 0.76 | 3.86 | 40.1 |
| 10 | 5.26 | 7×0.98 | 0.76 | 4.46 | 59.9 |
| 8 | 8.37 | 7×1.23 | 1.14 | 5.97 | 105.2 |
| 6 | 13.3 | 7×1.55 | 1.52 | 7.69 | 170.4 |
| 4 | 21.15 | 7×1.96 | 1.52 | 8.92 | 255.5 |
| 2 | 33.62 | 7×2.47 | 1.52 | 10.45 | 388.9 |
| 1 | 42.36 | 7×2.78 | 2.03 | 12.4 | 482.9 |
| 1/0 | 53.49 | 19×1.89 | 2.03 | 13.51 | 621 |
| 2/0 | 67.43 | 19×2.12 | 2.03 | 14.66 | 778 |
| 3/0 | 85.01 | 19×2.39 | 2.03 | 16.01 | 934 |
| 4/0 | 107.2 | 19×2.68 | 2.03 | 17.46 | 1159 |
| 250 | 127 | 37×2.09 | 2.41 | 19.45 | 1368 |
| 300 | 152 | 37×2.29 | 2.41 | 20.85 | 1623 |
| 350 | 177 | 37×2.47 | 2.41 | 22.11 | 1876 |
| 400 | 203 | 37×2.64 | 2.41 | 23.3 | 2128 |
| 500 | 253 | 37×2.95 | 2.41 | 25.47 | 2631 |
| 600 | 304 | 37×3.23 | 2.79 | 28.19 | 3174 |
| 650 | 329 | 37×3.37 | 2.79 | 29.17 | 3345 |
| 700 | 355 | 37×3.49 | 2.79 | 30.01 | 3609 |
Sectional area
(AWG or Kmcil) | No. of strands | Insulation thickness
(mil) | Nylon thickness
(mil) | Overall dia.
(inch) | Net weight
(lbs/1000ft) |
| 14 | Solid | 15 | 4 | .105 | 16 |
| 12 | Solid | 15 | 4 | .122 | 24 |
| 10 | Solid | 20 | 4 | .153 | 38 |
| 14 | 19 | 15 | 4 | .112 | 16 |
| 12 | 19 | 15 | 4 | .130 | 24 |
| 10 | 19 | 20 | 4 | .164 | 38 |
| 8 | 19 | 30 | 5 | .220 | 64 |
| 6 | 19 | 30 | 5 | .256 | 98 |
| 4 | 19 | 40 | 6 | .325 | 155 |
| 3 | 19 | 40 | 6 | .353 | 190 |
| 2 | 19 | 40 | 6 | .386 | 236 |
| 1 | 19 | 50 | 7 | .443 | 300 |
| 1/0 | 19 | 50 | 7 | .484 | 372 |
| 2/0 | 19 | 50 | 7 | .529 | 462 |
| 3/0 | 19 | 50 | 7 | .579 | 575 |
| 4/0 | 19 | 50 | 7 | .635 | 716 |
| 250 | 37 | 60 | 8 | .703 | 846 |
| 300 | 37 | 60 | 8 | .756 | 1005 |
| 350 | 37 | 60 | 8 | .806 | 1165 |
| 400 | 37 | 60 | 8 | .851 | 1325 |
| 500 | 37 | 60 | 8 | .934 | 1640 |
| 600 | 61 | 70 | 9 | 1.03 | 1995 |
| 750 | 61 | 70 | 9 | 1.14 | 2480 |
| 1000 | 61 | 70 | 9 | 1.32 | 3300 |
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
