| Prod Model: |
THHN THW THWN |
| Product Name: |
Flexible Electrical Wires Cooper Conductor PVC Ins |
| Voltage: |
300/300V 300/500V 450/750V |
| Insulation Color: |
Red, Black, Yellow, Blue, Green, Grey and So on |
| Standard: |
IEC, UL, BS, VDE, AS/NZS or According to You. |
| Conductor Class: |
Calss 1, Class2, Class 5, Class6 |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
House and Building |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
BV SGS |
| Sheath Material: |
No |
| Brand: |
Rmjt |
Product Description

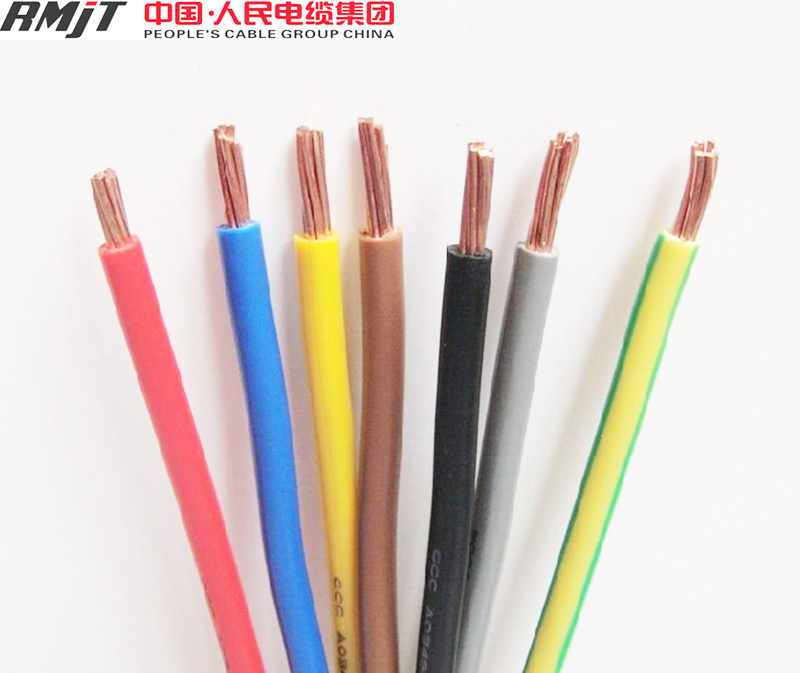

THHN THW THWN WIRE 18AWG 16AWG 14AWG 12AWG 10AWG 8AWG copper wire pvc insulation nylon jacket electric building cable
Applications:
THHN building wire is meant for use as general purpose wiring for installation in conduit or other recognized raceway.
THHN may also be used for machine tool, appliance and control circuit wiring.
Description of usage properties
The nylon sheathed cable has more excellences in physical and electrical performance than the PVC cable.
The cable has smaller outer diameter, lighter weight, less static friction coefficient than the same size of PVC cable, which greatly improve safety and convenience in installation and assembly of the cable.
It is self-lubrication, and has good resistance to corrosion, oil, acids, alkali, and moisture.
The cable is widely used in fixed installation, home appliance, lighting equipment, construction and aviation engine room with voltage up to 450/750V.
Its permitted long term working temperature shall be 70°C or 90°C, installation temperature shall be over 0°C, and maximum bending radius shall be not less than 4 times of outer diameter of the cable.
Approvals:
· UL listed Stds. 83 & 1063 as: Type THHN Wire 90°C in dry locations, Type THWN Wire 75°C in wet locations.
· A-A-59544, NEMA WC-5, UL-758
· CSA approval upon request
Description:
· Conductor:Bare copper, Soft Drawn
· Insulation:PVC
· Jacket:NYLON
· Standard Colors(denoted by a dash and number code following the part number below): Black (-0), Brown (-1), Red (-2), Orange (-3), Yellow (-4), Green (-5), Blue (-6), Violet (-7), Gray (-8), White (-9), Pink (-10), Tan (-11); Striping and Other colors available upon request.
· Gasoline & oil resistant - Type MTW 90°C Machine Tool Wire (stranded only) 105°C AWM, 80°C where exposed to oil.
Package
Packing in plastic reel, paper reel ,wooden drum or as customer's requirement.
