| Prod Model: |
THHN |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Application: |
Building |
| Sheath Material: |
Nylon |
| Brand: |
Jinshui |

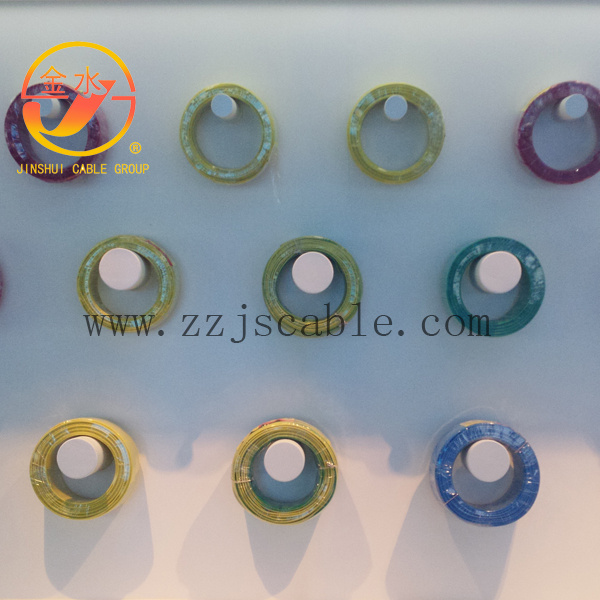

Product Description
Applications:
THHN building wire is meant for use as general purpose wiring for installation in conduit or other recognized race way.
THHN may also be used for machine tool, appliance and control circuit wiring.
Description of usage properties:
The nylon sheathed cable has more excellence features in physical and electrical performance than the PVC cable.
The cable has smaller outer diameter, lighter weight, less static friction coefficient than the same size of PVC cable, which greatly improve safety and convenience in installation and assembly of the cable.
It is self-lubrication, and has good resistance to corrosion, oil, acids, alkali, and moisture.
The cable is widely used in fixed installation, home appliance, lighting equipment, construction and aviation engine room with voltage up to 450/750V.
Its permitted long term working temperature shall be 70°C or 90°C, installation temperature shall be over 0°C, and maximum bending radius shall be not less than 4 times of outer diameter of the cable.
Approvals:
UL listed Standards. 83 & 1063 as: Type THHN Wire 90°C in dry locations, Type THWN Wire 75°C in wet locations.
A-A-59544, NEMA WC-5, UL-758
CSA approval upon request
Description:
Conductor: Bare copper, Soft Drawn
Insulation: PVC
Jacket: NYLON
Standard Colors (denoted by a dash and number code following the part number below): Black (-0), Brown (-1), Red (-2), Orange (-3), Yellow (-4), Green (-5), Blue (-6), Violet (-7), Gray (-8), White (-9), Pink (-10), Tan (-11); Striping and Other colors available upon request.
Gasoline & oil resistant - Type MTW 90°C Machine Tool Wire (stranded only) 105°C AWM, 80°C
where exposed to oil.
Established in 1984, Henan Jinshui Cable Group Co., Ltd. specializes in design and manufacture of various kinds of wires and cables. Our company's headquarters is located in Zhengzhou City of Henan Province, a famous city with convenient transportation in China.
Our company is in charge of 23 domestic sale companies and one trade company, Zhengzhou Jin Hang High-Tech Co., Ltd., mainly responsible for overseas market. There are 638 staff members in the factory, including 18 experienced engineers, 52 lab assistants and 568 workers. The capital asset reached USD10, 507, 000. We have various advance product lines and equipment, including 180 sets for producing use and 40 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We also have some ability to satisfy special need of customers. The annual product capacity of cables and wires of our factory is more than 10, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Henan Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries. We insisted that pay adequate attention to every customer's request. We insist on our principle of "Good Quality Results Trust and Honesty Makes Success". We sincerely welcome you to touch with us and visit us.
