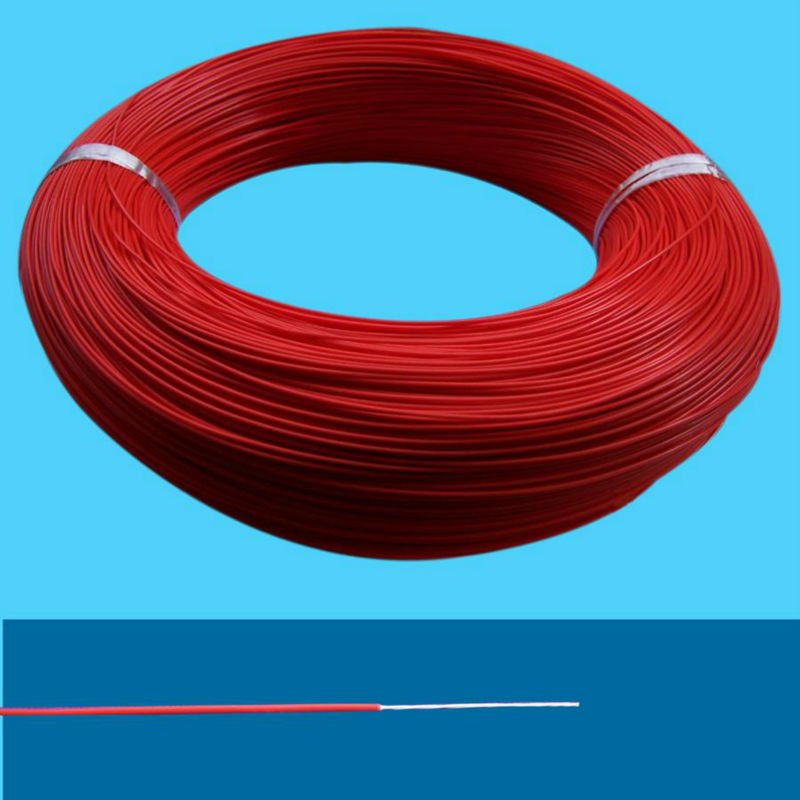

Thhn Wire Electrical Wire Building Wire
| Price: |
US $ 1/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
THHN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage Rating: |
0.6/1 Kv |
| Sample: |
Free |
| Certificate: |
ISO, CE, SABS |
| Applicable Standard: |
ASTM BS CSA IEC DIN |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
SABS |
| Brand: |
Henan Jiapu |
Product Description
THHN WireTHHN Building Wire is general purpose wiring in accordance with the NEC.
The building wire is rated at 600 volts for installat
THHN: Thermoplastic Insulation (usually PVC),
High Heat Resistant (90° C rating), dry locations only,
Nylon jacket. Also rated THWN.
THHN Building Wire is general purpose wiring in accordance with the NEC. The building wire is rated at 600 volts for installation in conduit or other recognized raceway. THHN Wire may also be used for wiring of machine tools, appliances and control circuits.
Building Wire - THHN Wire Description:
THHN Wire has a conductor of soft drawn bare copper.
THHN Wire has primary insulation of PVC with NYLON jacket.
UL listed Stds. 83 & 1063 as: Type THHN Wire 90° C in dry locations,
Type THWN Wire 75° C in wet locations.
Gasoline and oil resistant II. Type MTW 90° C Machine Tool Wire (stranded only) 105° C AWM, 80° C where exposed to oil.
CSA approval available upon request for the building wire.THHN Building Wire is general purpose wiring in accordance with the NEC.
The building wire is rated at 600 volts for installation in conduit or other recognized raceway
Cable, cables, THHN cable, THWN cable, FVN cable, digital cable, Electric wire, Electrical wires, Electric cable, Electrical cable, Electrical cables, PVC Insulated and Sheathed Cable, PVC insulated cable, insulated cable, instrumentation cable, power cable, stranded cable, double insulated, flat cable, CCC approved, AL conductor, installation wire, flexible wire, flex cable, single core, multi core cable, fire resistant, XLPE, XLPE cable, LSZH, LSOH, LSZH cable, .
Henan Jiapu Cable Group is located in Zhengzhou, the capital of Henan province, also politics, culture, economic and transport center. The group has 3 subsidiary companies which specialize in manufacturing and supplying various kinds of wires & cables. With more than 15 years of efforts and development, it has become an influential manufacturer of wires & cables making machinery in China.
The main products are as follows:
Bare Conductor (AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW)
Aerial Bundled Cable 1kV-35kV (ABC Cable)
PVC Insulated (Flexible ) Wire and PVC Insulated and Sheathed (Armoured) Power Cable
Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable
Welding Cable, Control Cable, Rubber Sheathed Cable
Fiber Optic Cable (OPGW, ADSS, etc. )
Fittings and Accessories (Suspension set, tension set, insulators, vibration dampers, joint box, terminal set, lightning arrester, etc. )
We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, Australia and so on. Welcome your OEM and ODM orders.
We are working hard all the time to improve the production lines, develop new products, focus on customer's needs, and try our best to offer the best professional services, strive to meet the customers' needs. We pursue the aim of "quality, reputation and service first" and adhere to the trade principals of "equality and mutual benefits". We win the trust of domestic customers and customers of different countries. We will take the enterprise spirit of "Unity and Striving, Reality and Innovating, Pioneering and Progressing, Honesty and Being Law-abiding". And we will cordially cooperate with friends of various circles both at home and abroad with a new gesture.
