Thin and Light PCB Pancake Slip Ring Anti-Vibration with ISO/Ce/FCC/RoHS,

Name: Thin and Light PCB Pancake Slip Ring Anti-Vibration with ISO/Ce/FCC/RoHS,
Brand: all-electronics-online.com
SKU: 797945245
Availability: InStock
Rating: 4.7 (23 reviews)

Price:	US $ 80/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BTP060
Working Speed:	100rpm
Circuits:	2~36
Current&Voltage:	as Per Requested
Electric Noise:	<7mohm
Ant-Vibration:	Military Standard

Product Description

Thin and light Pancake Slip Ring with anti-vibration
A pancake slip ring has the conductors arranged on a flat disc as concentric rings centered on the rotating shaft. This configuration has greater weight and volume for the same circuits, greater capacitance and crosstalk, greater brush wear and more readily collects wear debris on its vertical axis. However, a pancake offers reduced axial length for the number of circuits, and so may be appropriate in some applications,Pancake slip ring approach is used when length is at a premium but diameter is less restrictive.
Without the housing , it is more flexible for installation and improves the performance of Anti-shock and vibration!

Thin & light
2~36 wires
rotating smoothly
100rpm
anti-vibration
Small friction

Parameters:Thin and light Pancake Slip Ring with anti-vibration

Mechanical :

Working speed	<=100rpm
Operating temperature	-40ºC~ +100ºC
Contact material	Precious metal
IP Grade	NA

Electrical:

Circuit	<= 36
Current	2A,5A, 10A optional
Signal	Ethernet, Can-bus, RS485 ,USB
Voltage	≤380V, 240V for signal
Dielectric strength	≤1000V@50Hz between each circuit
Insulation resistance	1000MΩ@ 500VDC
Electric noise	≤7mΩ
Lead wire size	22AWG, 17AWG,14AWG,UL, color Teflon, silver or tin plated
Lead wire length	200mm

Features of Thin and light Pancake Slip Ring with anti-vibration
Use while length at a premium but diameter less restrictive
Low noise
Wear-resisting
Signal and current compatible
Anti-shock and vibration

Alternatives Thin and light Pancake Slip Ring with anti-vibration
Circuits
Loading of each circuit

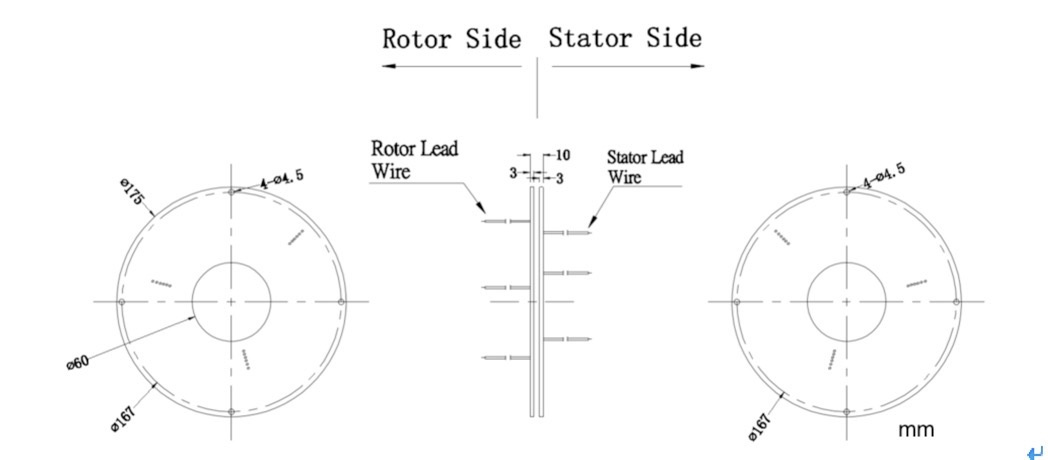

Dimension
Wire length
Installation way

Typical Applications Thin and light Pancake Slip Ring with anti-vibration
Aerospace aviation
Vehicle system
Exhibition equipment
Military instrument
Test equipment

Advantages of slip ring manufacturer---ByTune:
Affordable price
Quality guaranteed
Military standard
Response within 24 hours
Prompt delivery
Reliable package & shipment
Flexible & quick customization

Delivery time and shipment:

TEAMS WHO TRUST US

ByTune electronics Co., Ltd, since 1998, is a government supporting, hi-tech, private enterprise, with more than 200 employees, 20, 000 square feet factory and 2, 500 square feet rd & sales office. ByTune is focused in developing, designing, manufacturing slip rings nearly 20 years, we supply wide range slip rings and provide360° Rotary solutions. Besides supplying standard through hole slip rings, capsule slip rings, separate slip rings, pan cake slip rings, hydraulic slip rings, pneumatic slip rings, coax rotary joints, fiber optic slip ring etc, we have an expertized engineering team of more than 50 persons, we provide full range of customized slip rings at prompt delivery. We customize slip rings as per customers request in different applications such as agriculture machine slip ring, crane slip ring, antenna slip rings, wind turbine slip rings, auto-wrap machine slip rings...

ByTune electronics is equipped with the machines of CNC ( 2, 3, 4 and 5 axis), vertical machine tool integrating turning with milling, auto-drilling machine, precise milling machine, numerical control punch press, grinding machine, and so on… ...With advanced machines, we could do all of the processions in one-stop: CNC lathe, milling, drilling, grinding, punching, bending, casting, forging, stamping, etc … ByTune supplies quality & precise machine parts at prompt delivery.

At www.btslipring.COM, you could get high quality slip rings and machine parts at an affordable price and with superior support by contacting sales@btslipring. COM.

ByTune is ISO9001, CE, FCC, RoHS and military standard JGB9001A certificated!
