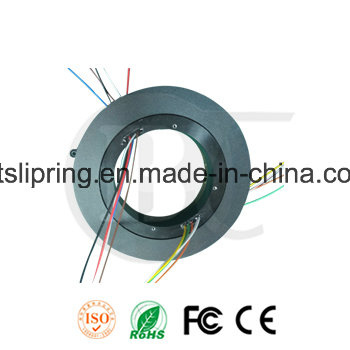

Thin & Light Enclosed Pan Cake Slip Ring with Anti-Vibration and Smoothly Rotation
| Price: |
US $ 100/Piece |
| Min Order: |
3/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
BTP061 |
| Working Speed: |
100rpm |
| Circuits: |
2~36 |
| Current&Voltage: |
as Per Requested |
| Electric Noise: |
<7mohm |
| Ant-Vibration: |
Military Standard |
| Housing Material: |
Aluminum |
| Protection Grade: |
IP54 |
Product Description
Thin & Light Enclosed Pan Cake Slip Ring with Anti-Vibration and smoothly rotationA enclosed pancake slip ring has the conductors arranged on a flat disc as concentric rings centered on the rotating shaft. This configuration has greater weight and volume for the same circuits, greater capacitance and crosstalk, greater brush wear and more readily collects wear debris on its vertical axis. However, a pancake offers reduced axial length for the number of circuits, and so may be appropriate in some applications,
Enclosed pancake slip ring approach is used when length is at a premium but diameter is less restrictive. With the AL housing, it is more robust
and convenient for installation and improves the performance of Anti-shock and vibration!
Thin & light
2~36 wires
rotating smoothly
100rpm
anti-vibration
Small friction
Parameters:Thin and light enclosed Pancake Slip Ring with anti-vibration
Mechanical :
| Working speed | <=100rpm |
| Operating temperature | -40ºC~ +100ºC |
| Contact material | Precious metal |
| IP Grade | IP54 |
Electrical:| Circuit | <= 24 |
| Current | 2A,5A, 10A optional |
| Signal | Ethernet, Can-bus, RS485 ,USB |
| Voltage | ≤380V, 240V for signal |
| Dielectric strength | ≤1000V@50Hz between each circuit |
| Insulation resistance | 1000MΩ@ 500VDC |
| Electric noise | ≤7mΩ |
| Lead wire size | 22AWG, 17AWG,14AWG,UL, color Teflon, silver or tin plated |
| Lead wire length | 200mm |
Features of Thin and light enclosed Pancake Slip Ring with anti-vibration
Use while length at a premium but diameter less restrictive
Low noise
Wear-resisting
Signal and current compatible
Anti-shock and vibration
Alternatives Thin and light enclosed Pancake Slip Ring with anti-vibration
Circuits
Loading of each circuit

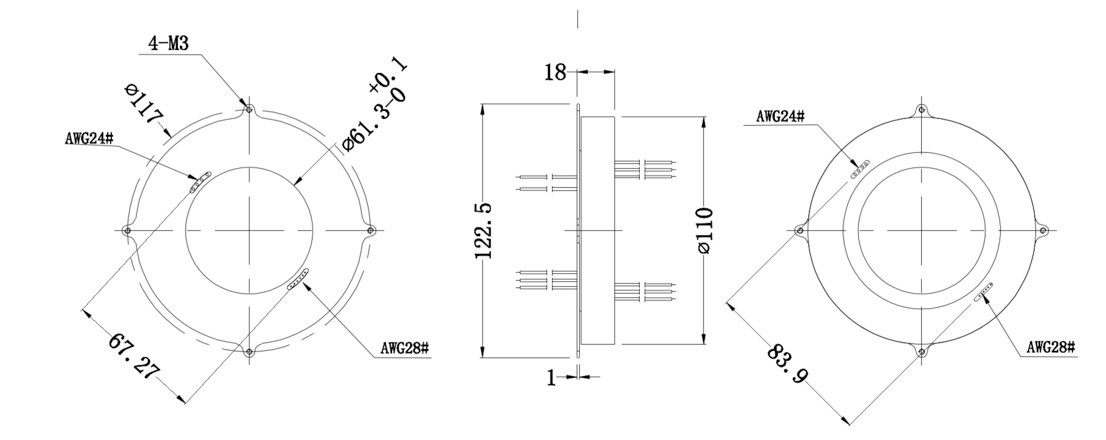

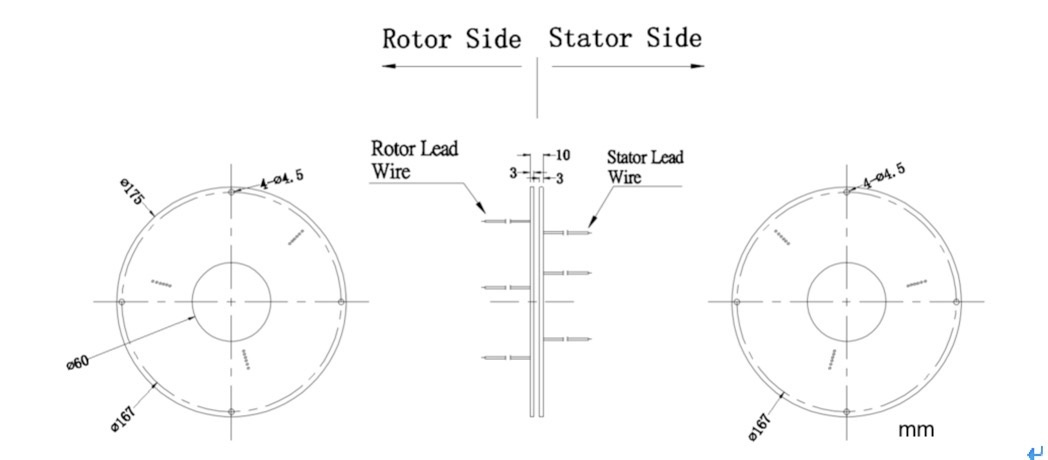

Dimension
Wire length
Installation way
Typical Applications Thin and light enclosed Pancake Slip Ring with anti-vibration
Aerospace aviation
Vehicle system
Exhibition equipment
Military instrument
Test equipment
Advantages of slip ring manufacturer---ByTune:
Affordable price
Quality guaranteed
Military standard
Response within 24 hours
Prompt delivery
Reliable package & shipment
Flexible & quick customization
Delivery time and shipment:
2 weeks ARO
By UPS ,DHL or FedEx , depends on your location
ByTune electronics Co., Ltd, since 1998, is a government supporting, hi-tech, private enterprise, with more than 200 employees, 20, 000 square feet factory and 2, 500 square feet rd & sales office. ByTune is focused in developing, designing, manufacturing slip rings nearly 20 years, we supply wide range slip rings and provide360° Rotary solutions. Besides supplying standard through hole slip rings, capsule slip rings, separate slip rings, pan cake slip rings, hydraulic slip rings, pneumatic slip rings, coax rotary joints, fiber optic slip ring etc, we have an expertized engineering team of more than 50 persons, we provide full range of customized slip rings at prompt delivery. We customize slip rings as per customers request in different applications such as agriculture machine slip ring, crane slip ring, antenna slip rings, wind turbine slip rings, auto-wrap machine slip rings...
ByTune electronics is equipped with the machines of CNC ( 2, 3, 4 and 5 axis), vertical machine tool integrating turning with milling, auto-drilling machine, precise milling machine, numerical control punch press, grinding machine, and so on… ...With advanced machines, we could do all of the processions in one-stop: CNC lathe, milling, drilling, grinding, punching, bending, casting, forging, stamping, etc … ByTune supplies quality & precise machine parts at prompt delivery.
At www.btslipring.COM, you could get high quality slip rings and machine parts at an affordable price and with superior support by contacting sales@btslipring. COM.
ByTune is ISO9001, CE, FCC, RoHS and military standard JGB9001A certificated!
