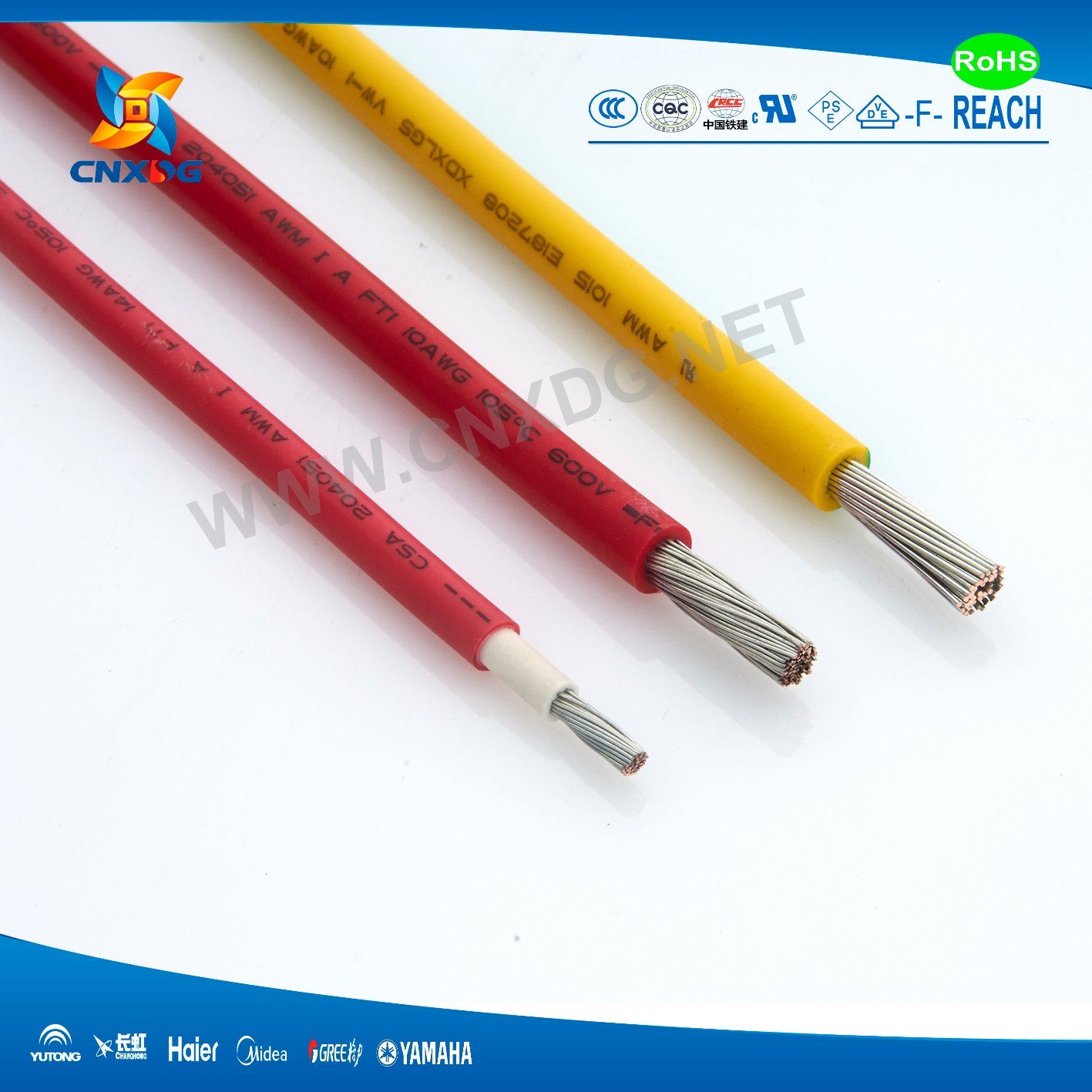

Thin-Wall Wire for Automobile Avss, AVS

Thin-Wall Wire for Automobile Avss, AVS
Price: Negotiable/Foot
Min Order: 10000/Foot
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: AVSS, AVS
Type: Insulated
Conductor Type: Stranded
Application: Heating
Conductor Material: Copper
Insulation Material: PVC
Certification: Reach, CSA, F-MARK
Brand: Xdxlgs

Product Description

Standard: JASOD D 611--94

Registration No:

MARKING:

APPLICATION: For internal wiring of vehicles meters circuits and electrical equipment in high temperature condition



Style

Cross-Sectional Area

Printing Mark
AVS0.5, 1.25, 0.5f , 1.25fBule or brown single-loop AVS-( ) XDXLGS
0.3 0.85 0.3F 0.75fBule or brown single-loop AVS-( ) XDXLGS
2, 3, 5, 2f

AVS-2(3.5.2f)XDXLGS

AVSS0.5,1.25, 0.5f 1.25fAsh-Blond single- loop
0.3, 0.85, 0.3f, 0.75fAsh-Blond single- loop
2, 2fAVSS-2(2f)XDXLGS










Rated voltage: not specified,Rated temperature:105ºC




Stranded, bare copper conductor




Sole PVC insulation for automobile




Passes JASO D 611-94  flame test




Uniform insulation thickness of wire to ensure easy stripping and cutting




Resistant to acid, alkali, heat, cold, abrasions and oil,conforming RoHS






 AVS,AVSS

 Style



Conductor



Insulation

 Droduct Dia.

20ºC Max Resistance at 20ºC

70ºCMax Insulation Resis- tance at 70ºC



Dielectric Strength AC 30 min

Standard Length



Nom. Area

/ Dia

Nom. Thick

Min. Thick

Nom.

 Dia.

Max. Dia
mm2No./mmmmmmmmmmmmΩ/KmΩ.cmV(M)
AVS0.37/0.260.80.50.321.81.950.20.011000500
0.57/0.321.00.50.322.02.132.7
0.8516/0.261.20.50.322.22.322.0
11/0.321.20.50.322.22.320.8
1.2516/0.321.50.50.322.52.614.3
2.026/0.321.90.50.322.93.18.81300
3.041/0.322.40.60.403.63.85.59200
5.065/0.323.00.70.484.44.63.52
0.3f15/0.180.80.50.321.81.948.9500
0.5f20/0.181.00.50.322.02.136.7
0.75f30/0.181.20.50.322.22.324.4
1.25f50/0.181.50.50.322.52.614.7
2.0f37/0.261.90.50.322.93.19.50300
AVSS0.37/0.260.80.30.241.41.550.20.011000500
0.57/0.321.00.30.241.61.732.7
0.8519/0.241.20.30.241.81.921.7
7/0.401.10.30.241.81.920.8
1.2519/0.291.50.30.242.12.214.9
2.019/0.371.90.40.322.72.89.00300
0.3f19/0.160.80.30.241.41.548.8500
0.5f19/0.191.0030.241.61.734.6
0.75f19/0.231.20.30.241.81.923.6
1.25f37/0.211.50.30.242.12.214.6
2.0f37/0.261.80.40.322.62.79.50300

CERTIFICATION

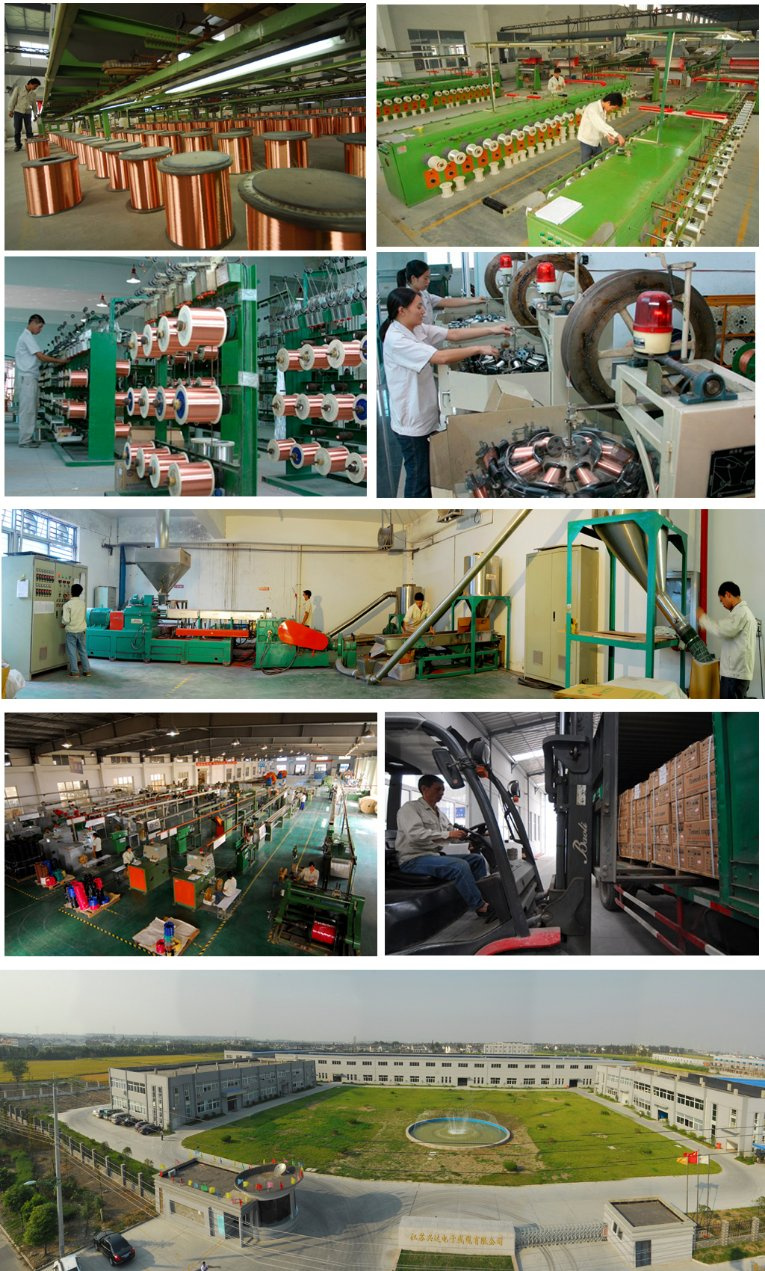

WORKSHOP






2 . What kinds of products does XINGLIAN manufacture?

1)Wire and Cable;
A.  PVC Insulated (Flexible ) Wire ;
B.  PVC Insulated and Sheathed  Cable;
C.  PVC Insulated and Unsheathed  Cable;
D.  PE/XLPE/LSF/LSZH/SRPVC/HDPE/LDPE Insulated (Flexible ) Wire ;
E.  PE/XLPE/LSF/LSZH/SRPVC/HDPE/LDPE Insulated and Jacketed Cable ;
F.  Road Vehicles High-voltage and Low-voltage Wire
G  .Road Vehicles Low-Voltage Wire


2)Connector and Wiring harness
A.For Automotive
B.For Motorcycle
C.For Household appliances
D.For Communication




3. What kind of certifications do you have?

ISO9001, ISO14001, TS16949, cUL, VDE, CE, CCC, CQC, CRCC, JQA, PSE, RoHS,REACH.





4.Which markets do you involve mainly in?

Our products have been exported mainly to North America, Europe ,Australia,South-east Asia, South America,Central America, Africa, Middle East, etc.



5. Which standards do you comply with when you produce   cables and harness ?

We are able to producewires and cables based on UL,CSA,VDE,GB, JB, IEC, BS, DIN, ASTM, JIS,JASO D, ISO,VW,QC/T PSASTE, SAE J,GJB, AS/NZS,, etc. Meanwhile, we can design and manufacture the cables and harnesses according to the samples and technical specification the customer supply.



6. What is the min.order quantity ?


It depends on the type and size of electrical wires and cables. For some small electrical wires, 100 meters can be accepted .But for the power cables with medium or high voltage, that should comply with the property of installed equipments. Anyhow,we will try our best to solve the problem and meet with the requirement If you have special request.



7. What is the production capacity per week or per month ?

For cable, we can finish 400'000km within one month.
For connector, we can finish 100'000'000pcs
For harness 9'000'000 sets




8. Do you supply the customers with installation service in foreign country ?

We don't have professional installation teams in foreign country.But if that is necessary, we will recommend our partners to cooperate with you.





Jiangsu Xinglian Electronic Technology Co., Ltd is a private joint-stock enterprise. It registered in commerce and industry bureau, established in 1994. Xinglian has set up production bases in Jiangsu, Wuhan, Chongqing. Total assets in 250 million.

Specialized in manufacturing UL electronic wire&cable, wire harness assembly of automobile& motorcycle, terminal of automobile&motorcycle, automotive high&low voltage electronic, etc.

Xinglian forms to a branding and conglomeration large scale enterprise. Our products cover many fields, such as appliance, automobile, aviation, telecommunication, medical instrument, etc. All the products pass of the certificates of UL, CSA, F-MARK, PSE, CCC, CQC, CCS, VDE. And our company is authorized by GJB9001-2000, ISO9001-2008, ISO/TS16949: 2002 system certification.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
