| Prod Model: |
LS-VS03B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Contact Capacity: |
AC220V/1A;DC24V/0.5A |
| Working Pressure: |
ATM |
| Output Signal: |
Spst No/Nc, Spdt |
| Temp. Rating: |
-20~100, 150, 200 |
| Float Material: |
SUS 304(SUS 316 Optional) |
| Protection Grade: |
IP68 |
| Float Size: |
30*28.5mm |
| Connection: |
M10; G1/8", NPT1/2";......(Customized) |
| Insert Length: |
45mm, 100mm, 150mm, 200mm, 250mm......Customized |
| Principle: |
Eddy Current |
| Wires: |
Spst |
Product Description

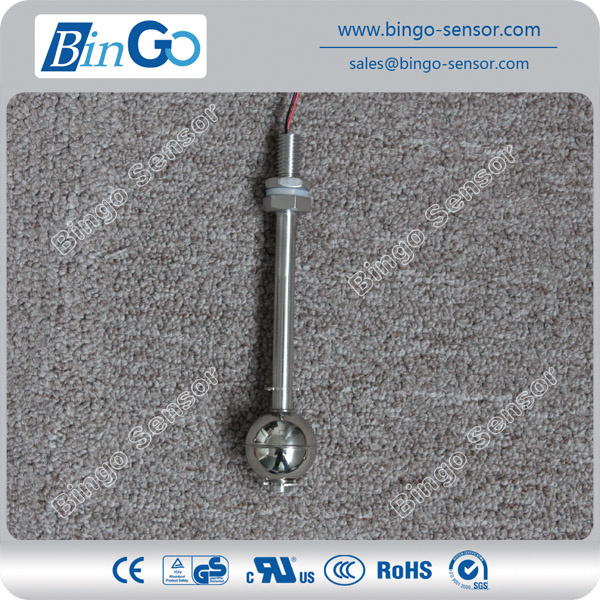

Thread connection stainless steel vertical ball float level switch for water pump
Introduction:The working principle of water level sensor is direct and simple. Set one point or multi-point of magnetic switch in sealed unmagnetic metal or industrial plastic tube. Fix the float with inner magnetic system to a certain place of magnetic switch in the pipe and let the float drift up and down; Utilize the inner magnetic system in the float to trigger the open and close of magnetic switch to operate and control the liquid level. Normal open and normal close is the state with inserting liquid. Mini float level switch is custom-made product and the switch state can shift in normal condition. Mini float level switch is widely used in level control and alarm of all kinds of Industry such as electronic, electric power, chemical, watertreatment, water supply and drainage due to its low price, reliable performance and flexible installation method.Specification:| Product Name | Thread connection stainless steel vertical ball float level switch for water pump |
| Contact Capacity | AC220V/1A; DC24V/0.5A |
| Working Pressure | ATM |
| Output Signal | SPST NO/NC, SPDT |
| Temp. rating | -20~100, 150ºC, 200ºC |
| Float Material | SUS 304(SUS 316 optional) |
| Protection Grade | IP68 |
| Float size | 30*28.5mm |
| Connection | M10; G1/8", NPT1/2";....(customized) |
| Insert length | 45mm, 100mm, 150mm, 200mm, 250mm......customized |
Frequently Asked Questions

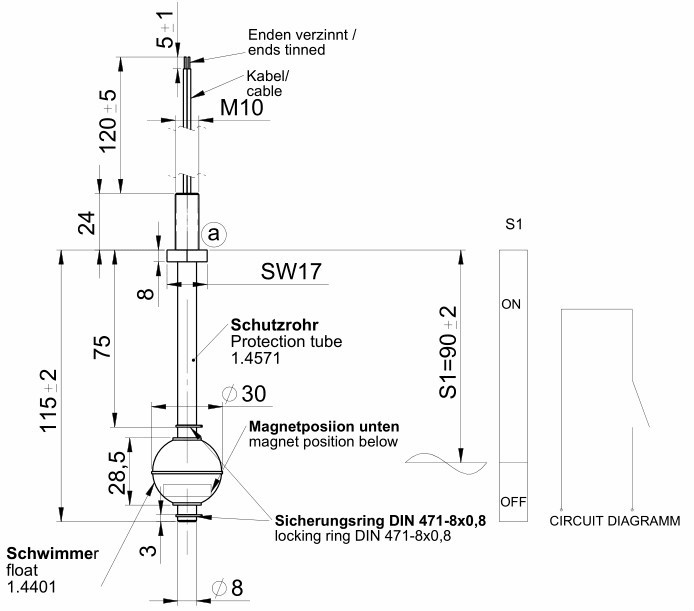

1.Product size chart:
2. Applications:
Drinking fountains, water heaters, solar energy, air conditioners, humidifiers, water, bathroom equipment, vending machines, tanks, chemical liquid level control, automotive, industrial equipment, agricultural equipment, household appliances widespread application prospect.
3. How to choose a suitable level switch?
| Users should select suitable float according to the working temp., pressure,gravity,acid and alkali of the tested liquid. |
| Temperature: |
| PVC maximum temperature is 80°C, PP maximum temperature is 80°C, |
| PVDF maximum temperature is 150°C, |
| SUS304/316L maximum temperature is 200°C. |
| Pressure: |
| Plastic float maximum pressure resistance 5kg/cm2, |
| SUS304/316L maximum pressure resistance 40kg/cm2. |
| Viscosity: |
| For viscosity liquid, it is better to choose float with big diameter and small gravity to overcome the surface tension of liquid. |
| Acid and alkali liquid: |
| Please choose PP or PVDF, if temp. is higher than 80°C, PVDF ONLY |
| Alcohol and oil etc. liquid: |
| It is suggested to use stainless SUS. |
| Please select food grade SUS316L in food field. |
| Gravity: |
| Float's gravity S.G. should be less than tested liquid. |
4. How to pay and how to delivery?
PayPal, WESTERN UNION, Maestro, MoneyGram, VISA
UPS, FedEx, TNT, DHL, EMS
5. Packaging:
1. For each type, we can send you the detailed high-resolution pictures since we have the sample in our hand.
2. For packaging, we have the professional packaging starff, pls. don't worry about the shipping.
For an example:
Our service
1. Delivery time is 5~7 days for sample and 15 working days for bulk order;
2. Strong production capacity and strict quality control system;
3. Your inquiry and problems related to our products or prices will be replied in 24 hours;
4. Well-trained and experienced staffs to answer all your inquires;
5. After-sale tracking service for all of our clients;
6. OEM is available; small quantities, mixed bulk orders are also welcome;
7. Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram;
8. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
After-sales service
1.1~2years warranty for most of our products;
2.We will arrange delivery of the goods on time:
3.Within the warranty period, we will bear all the qulity problem of our produts;
4.Beyond the warranty period, we will despatch the replacement parts to help fix the products;
5.Without any problem, we will gain the feedbacks of our products to help improve better products.

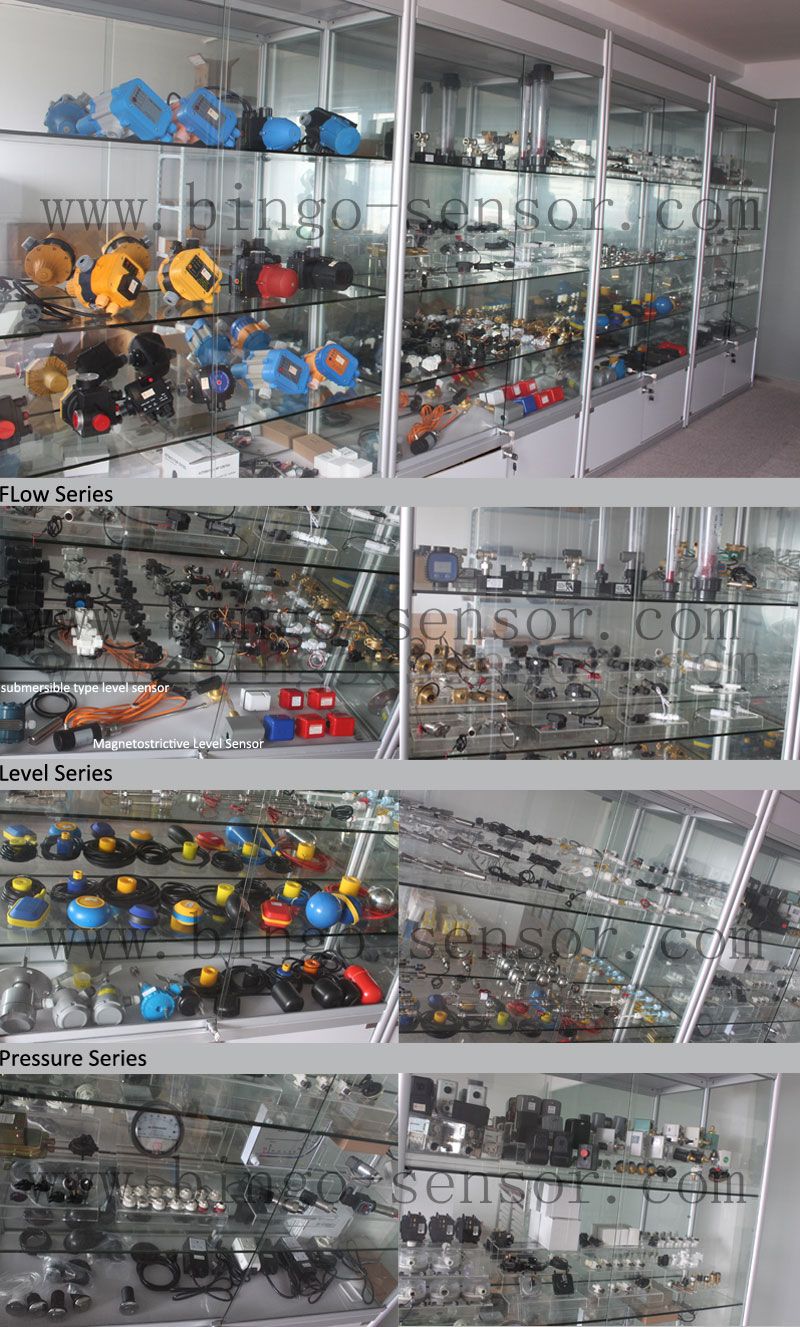

Product show room
About us:
Founded in 2009, our company is committed to supplying a full range of pressure switches / transmitters / sensors, level switches / transmitters/ meters, flow switches / transmitters/ meters.
Our company is located in the "Capital of Electric Products", Liushi, Wenzhou. Besides, we set branch in Shanghai for automation control business in 2013.
Shanghai Office
ADD: Rm. 408, #1 Building, Shanghai Zhihui Science Park, No.11, lane 911, Hulan Road, Baoshan, Shanghai
Zipcode: 201900
Liushi Office
ADD: ROOM A111, JINHAO BUILDING,No.1-8 LIUWENG ROAD,LIUSHI ,YUEQING,WENZHOU
Zipcode: 325604
Yiwu Office
ADD: No. 146-3, Chouzhou North Road, Yiwu, Jinhua
Taizhou Office
ADD: No. 7, Xianqian Road, Yuhuan, Taizhou
More information, you can browse our website: www.bingo-sensor.com
If you need thread connection stainless steel vertical ball float level switch for water pump LS-VS03B, please feel free to contact us!
