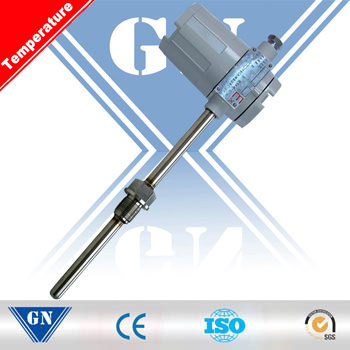

Threaded Connector Thermocouple (Thermal resistance) with Temperature Transmitter (CX-WZ/R)

Prod Model:	CX-WZ/R
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	-200-800c
Fixing:	Thread/Flange/None
Connection:	Terminal Box/Compensation Cable/Plug
Probe Length:	Custom
Thermocouple Wire Element:	Simplex/Duplex
Graduation:	N,K,E,T,J,PT100,Cu50,Cu100
Pakage:	Wooden Box
Thermalwell Material:	Ss304,316,Inconel601
Accuracy:	5%

Product Description

Threaded Connector Thermocouple ( Thermal resistance) With temperature transmitter(CX-WZ/R)

Brief introduction:

It is usually connected with display meter, recording meter and computer ect.
To directly measure the temperature of liquid, vaper, gas and solid surface
ranging from -200 to 800C during various production processes.

How to choose?
1.Diameter and length:Can be customized as customer's requirements
2.Junction box: water-proof type, splash-proof type, anti-explosion type, connector type,import type.
3.Fixed device: flange/none/screw.
4.Temperature Range: -200-800C centigrade .
5.Terminal blocks: terminals box


Selection table:

Type	Graduation	Measuring Range °C	Thermal Response Time	Protection Tube Material	Specification
					d	L×1
WRMB-240	N	0~800	<90S	dllBT4 dllCT5 dllCT6 iallCT6	Φ16	300×150  350×200   400×250   450×300   500×350   550×400   650×500   900×750 1150×1000  1650×1500 2150×2000
WRMB-240G			<24S
WRNB-240	K	0~800	<90S
WRNB-240G			<24S
WREB-240	E	0~600	<90S
WREB-240G			<24S
WRCB-240	T	0~350	<90S
WRCB-240G			<24S
WRFB-240	J	0-600	<90S
WRFB-240G			<24S
WZPB-241	Pt100	-200-600	<120S		Φ12
WZPB-241G			<24S
WZCB-241	Cu50 Cu100	-50~100	<120S
WZCB-241G			<24S

Class- I thermocouple and class A thermal resistance shall be ordered according to agreements.
Protection tube material is 1Cr18Ni9Ti, and we may produce the tube of other material.
Nominal Pressure ≤10MPa

Type	Thread Specification		d
	Code	M
WRNB-240		M27×2	Φ16
WRNB -240A	A	G3/4
WRNB -240C	C	NPT3/4
WPNB -240G		M27×2	Φ12
WPNB -240GA	A	G3/4
WPNB -240GC	C	NPT3/4

After-sales service:
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

Payment Terms:
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal

Our Integrity Promises your Quality !

Please contact with me, I will provide you professional service and high quality products.
