Three Big Power Relay Output GSM Remote Controller
| Price: |
US $ 110-130/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
GSM-TOG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
DC9V-36V |
| Alarm Input: |
Three Alarm Input Port |
| Output: |
Three Relay Output |
| Output Relay Rating: |
220V/30A |
| Box Type: |
Rain Proof Box |
| Usage: |
Door, Auto, Window, Personal |
| Application: |
Special Equipment, Industry |
| Certification: |
CE, FCC |
Product Description
Three big relay output GSM remote Control and alarm box
Very good designed safety box
- Three alarm input port
- Three 30A big power relay output
- Wide power voltage input
- On board backup battery for power off alarm support
GSM-TOG GSM relay controller Specifications:
| Power input | DC9-36V (Others DC18-72V and AC100-240V optional) |
| Working GSM band | 850/900/1800/1900MHz |
| Output rating | 3* Reay output and 30A/220V |
| Input | 3* Alarm input port |
| Box type | Rain proof box |
| Dimension Size | 220mm*160mm*60mm (including the connnector) |
- QUAD band designed for the world market
- Battery operated for power off alarm
- USB program interface on board
- Huobei intelligent design
Power supply:
- DC9-36V (This is for normal order if no special requirement)
- DC18-72V (Optional)
- AC100V-240V (Optional)
Very Smart designed with:
1. Security control or free control selection
2. SMS cost save mode,that you can use the SMS to control ,but no SMS reply
3. Device status change alarm report SMS to the specified phone number
4. Three alarm input .very easy to setup and very easy to use
4. Battery for power failure alarm

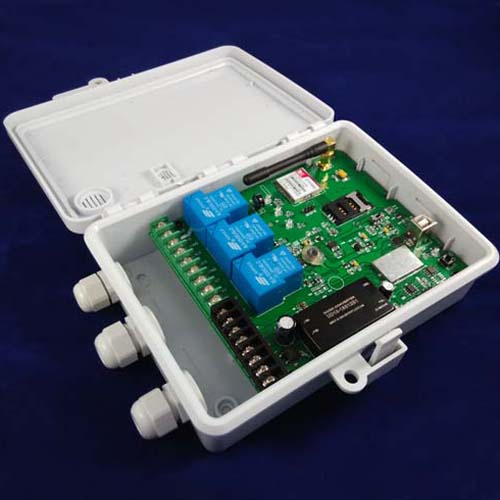

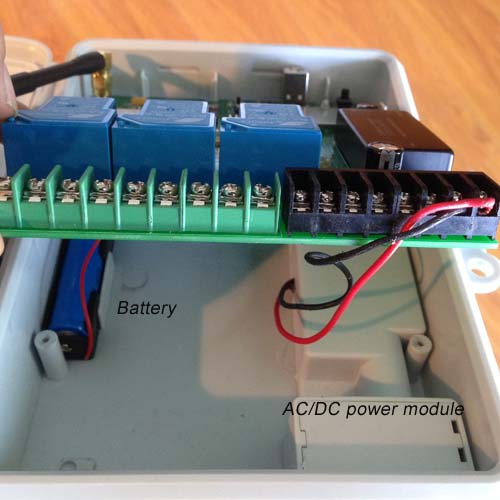

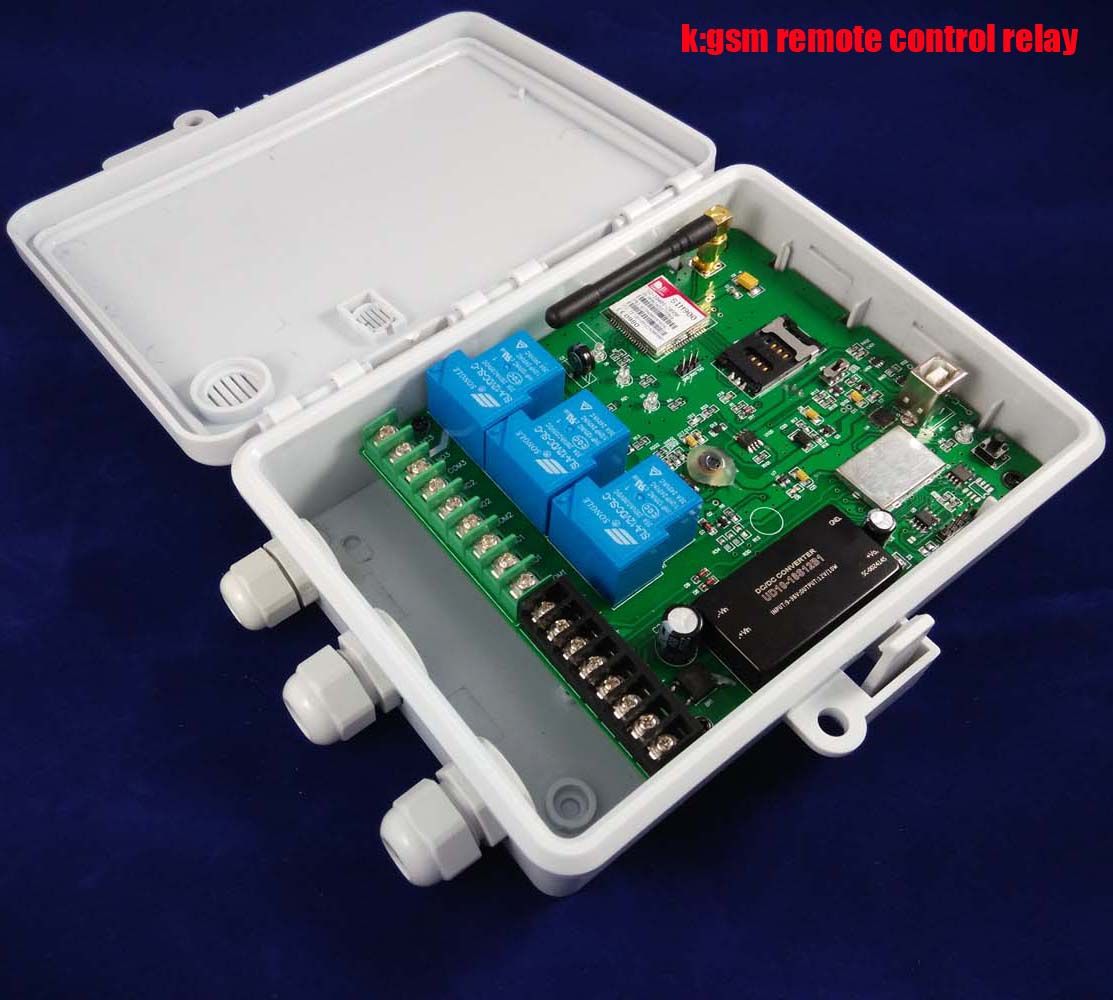

Inside box pictures:
Safety designed rain proof ABS plastic box
Can be locked with the safety key lock
No screw designed controller box
Very good and strong designed circuit board
GSM-TOG GSM controller package box
We also have the AC100-240V power input version
