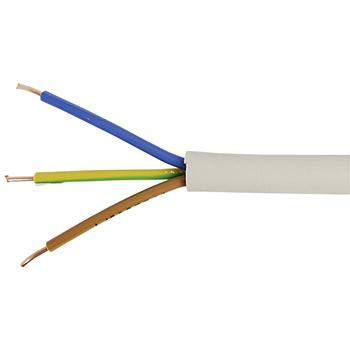

Three Core and Twin Flat Electrical Wire and Cables to BS6004
Price: |
US $ 0.88-8.88/Meter |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
500/Meter |
Pay Type: |
L/C,T/T,D/P |
Prod Model: |
twin and three core flat cable |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Insulated |
Conductor Type: |
Solid |
Application: |
Underground |
Insulation Material: |
PVC |
Certification: |
CCC |
Conductor Material: |
Solid or Stranded |
Range Of Application: |
Commercial and Residential Applications |
Brand: |
Jytop |
Product Description
three core and twin flat electrical cables to BS6004 Construction :
a wide range of copper and aluminum building wires and cables to meet today's construction wiring challenges. Designed for wet or dry locations, building wire can be armoured or non-armoured. Most building wire has a maximum voltage rating of 600V, although 1000V building wire is also available.
Building Wire Applications
Building wire is used to carry electricity into or within buildings and structures, and can be employed for a variety of commercial and residential applications - including electrical wiring systems, power generators, motors and electrical lights. ACWU and NMWU, in particular, are well-suited for direct earth burial and wiring in hazardous locations. Stranded copper wire is often used for overhead electrical transmission and distribution, and for grounding electrical systems where high conductivity and flexibility is required.

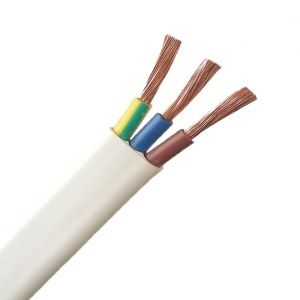

300/500V PVC Insulated PVC Sheathed Cables to BS 6004 Reference No 6193y Three Core (Flat)Size of conductor | Nominal thickness of insulation mm | Nominal thickness of sheath mm | Mean overall diameter | Approx. net weight per km kg |
Nominal cross-sectional area mm2 | Number and diameter of wires mm | Lower limit mm | Upper limit mm |
1.0 | 1/1.13 | 0.6 | 0.9 | 4.0*8.4 | 4.7*9.8 | 77 |
1.5 | 1/1.38 | 0.7 | 0.9 | 4.4*9.8 | 5.4*11.5 | 100 |
2.5 | 1/1.78 | 0.8 | 1.0 | 5.2*11.5 | 6.2*13.5 | 150 |
4 | 7/0.85 | 0.8 | 1.1 | 5.8*13.5 | 7.4*16.5 | 230 |
6 | 7/1.04 | 0.8 | 1.1 | 6.4*15.0 | 8.0*18.0 | 300 |
10 | 7/1.35 | 1.0 | 1.2 | 7.8*19.0 | 9.6*22.5 | 485 |
16 | 7/1.70 | 1.0 | 1.3 | 9.0*22.0 | 11.0*26.5 | 700 |
Notes1.Conductor of high conductivity copper wires insulated with PVC compound.Sheathed with PVC compound.2.Core colors: red, yellow and blue,(yellow in centre) Sheath colors: grey or white.

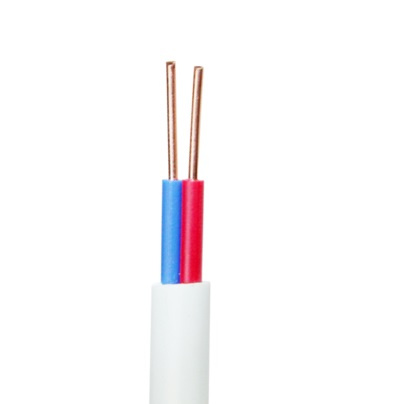

Reference No 6192yFlat Twin Size of conductor | Nominal thickness of insulation mm | Nominal thickness of sheath mm | Mean overall dimensions | Approx. net weight per km kg |
Nominal cross-sectional area mm2 | Number and diameter of wires mm | Lower limit mm | Upper limit mm |
1.0 | 1/1.13 | 0.6 | 0.9 | 4.0*6.2 | 4.7*7.4 | 55 |
1.5 | 1/1.38 | 0.7 | 0.9 | 4.4*7.0 | 5.4*8.4 | 70 |
2.5 | 1/1.78 | 0.8 | 1.0 | 5.2*8.4 | 6.2*9.8 | 105 |
4 | 7/0.85 | 0.8 | 1.0 | 5.6*9.6 | 7.2*11.5 | 150 |
6 | 7/1.04 | 0.8 | 1.1 | 6.4*10.5 | 8.0*13.0 | 205 |
10 | 7/1.35 | 1.0 | 1.2 | 7.8*13.0 | 9.6*16.0 | 325 |
16 | 7/1.70 | 1.0 | 1.3 | 9.0*15.5 | 11.0*18.5 | 465 |
Notes1.Conductor of high conductivity copper,wires insulated with PVC compound.sheathed with PVC compound.2.Color of sheath:grey or white,
Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,
PRODUCTS & STANDARDS & International Market:
1). Bare Conductor:
All Aluminum Conductor (AAC),
All Aluminum Alloy Conductor (AAAC),
Aluminum Conductor Steel Reinforced (ACSR),
Aluminum Alloy Conductor Steel Reinforced (AACSR),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),
Aluminum Conductor Aluminum Alloy Reinforced (ACAR),
Aluminum Conductor Steel Supported (ACSS),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)
All Copper Conductors(ACC),
Aluminum Coated Steel Wire(ACS),
Copper Coated Steel Wire(CCS),
Copper Coated Aluminum(CCA),
Galvanized Steel Wire(GSW),
Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire
2). Overhead Cable:
Aerial Bundled Cable (ABC).
XLPE Cable,
Flexible Cable,
Single Core Cable,
2 Core Cable,
3 Core Cable,
4 Core Cable.
3). Building wire and cable:
THHN /THWN Cable
TW/THW Cable
PVC Insulated Wire,
XLPE Insulated cable.
4. Power Cable:
Armored /Non-armored Power cable
AWA Cable
SWA Cable
Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.
We can meet customers' special requirements, and provided OEM service.
Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.
We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.
