Three Cores Underground XLPE Power Cable up to 35kv

Name: Three Cores Underground XLPE Power Cable up to 35kv
Brand: all-electronics-online.com
SKU: 711702372
Availability: InStock
Rating: 4.9 (118 reviews)

Price:	US $ 16/Meter
Min Order:	200/Meter
Pay Type:	L/C,T/T,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJV
Standards:	IEC
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	CCC
Brand:	Huatong

Product Description

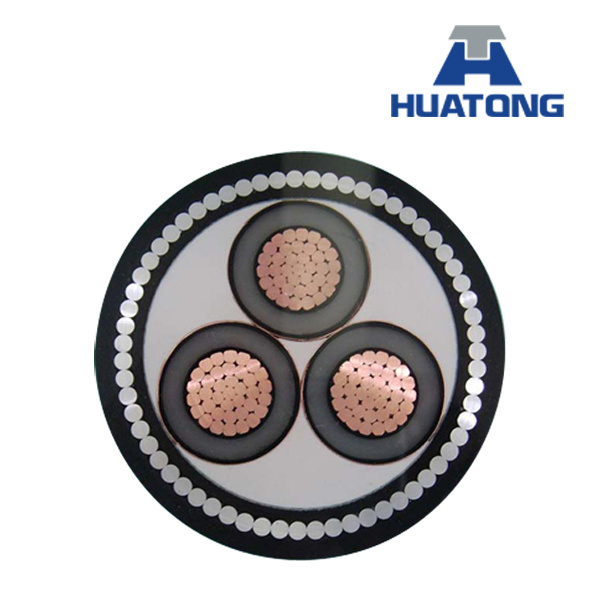

Three Cores Underground XLPE Power Cable up to 35KV

The XLPE insulated power cable is mainly used for the power trasmission, the voltage can be up to 220KV

The construction:
Copper or aluminum conductor
Semi-conductor screen
XLPE insulated
Semi-conductor material insulated screen
Steel wire or steel tape armoured
PVC or PE or HDPE sheath

Payment & Shipping Terms:
Payment Terms: L/C, T/T
Supply Ability: 500 Kilometer per Month

STANDARDS
IEC BS DIN ASTM CSA NFC AS

Nominal Cross-sectional Area	Approx. Outside Diameter of Conductor	Thickness of Insulation	Thickness of Extruded Inner Covering		Diameter of Armour Wire (nom.)		Thichness of PVC Outer Sheath (nom.)			Approx. Overall Diameter			Approx. Weight of Cable
			Thickness of Extruded Inner Covering		Diameter of Armour Wire (nom.)		Thichness of PVC Outer Sheath (nom.)			Approx. Overall Diameter			Copper Conductor			Aluminum Conductor
			AWA	DSTA	AWA	DSTA	UnAr	AWA	DSTA	UnAr	GSWA	DSTA	UnAr	AWA	DSTA	UnAr	AWA	DSTA
mm2	mm	mm	mm		mm		mm			mm			Kg/km			Kg/km
50	8.1	8.0	1.8	1.8	3.15	0.5	3.1	3.4	3.3	72	78	77	5,210	10,360	7,160	4,310	9,470	6,270
70	9.8	8.0	1.8	1.8	3.15	0.5	3.2	3.5	3.4	76	85	81	6,110	11,500	8,170	4,830	10,210	6,880
95	11.4	8.0	1.9	1.9	3.15	0.5	3.3	3.7	3.5	79	90	85	7,110	12,960	9,390	5,330	11,170	7,600
120	12.8	8.0	2	2	3.15	0.8	3.4	3.8	3.7	83	93	90	8,250	14,270	11,620	5,970	12,000	9,050
150	14.2	8.0	2	2	3.15	0.8	3.5	3.9	3.8	86	97	93	9,340	15,590	12,830	6,530	12,780	10,020
185	15.8	8.0	2.1	2.1	3.15	0.8	3.6	4	3.9	90	101	97	10,740	17,330	14,430	7,230	13,820	10,920
240	18.1	8.0	2.2	2.2	3.15	0.8	3.8	4.2	4.1	97	107	104	13,120	20,200	17,110	8,460	15,540	12,450
300	20.4	8.0	2.3	2.3	3.15	0.8	3.9	4.3	4.2	102	112	109	15,350	22,860	19,580	9,490	17,000	13,720
400	23.2	8.0	2.4	2.5	3.15	0.8	4.2	4.6	4.5	108	121	116	18,440	26,940	23,200	10,970	19,470	15,720

Huatong Cable Inc. has made outstanding contribution to STATE GRID, China SOUTH POWER GRID and the construction of domestic and foreign power market since foundation in 1993. The honors should be attributed to more than 20 years of constant R&D, market service and strong will.

Huatong Cable Inc. has set up overhead conductor division, power cable division and division of wire and cable for equipment. The division respectively takes charge of manufacture and marketing of overhead conductor, power cable and wire and cable for equipment. In 2002, our company set up the cable industry design and technology R&D department, providing technical support for product design and production. Our company makes independent innovation, and seeks cooperation with academic institutions including Shanghai Electric Cable Research Institute and China Electric Power Research Institute so as to meet the customized demands of customers and production needs of special cable. Now our company owns 25 exclusive rights to use trademark registered at home and abroad and 14 independent intellectual property patents. ACSR-720/50 aluminum cable steel reinforced has passed the technical appraisal of China Electricity Council. 500KV or above extra-high voltage conductor was put into production, came into service and had good operation record.

In 2013, Huatong Brand was awarded WELL KNOWN MARK OF China by the Trademark Office of the State Administration of Industry and Commerce, enjoying a high reputation in domestic market. The honor and legal status reflect the recognition of customers and support of the State Administration of Industry and Commerce. It is the only enterprise in cable industry in Henan that was awarded WELL KNOWN MARK OF China and Huatong brand will serve the society in the future.
