| Prod Model: |
SE-100 |
| Rated Capacity: |
10kVA~1250kVA |
| Frequency: |
50Hz/60Hz |
| Coupling: |
Yna0 Dyn11 |
| Power Frequency Withstand Voltage: |
3000V60s |
| Input Voltage: |
440V/420V/400V/380V |
| Output Voltage: |
400V/380V/220V/200V/190V/120V/100V |
| Application: |
Audio |
| Phase: |
Three |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Kewang |
Product Description

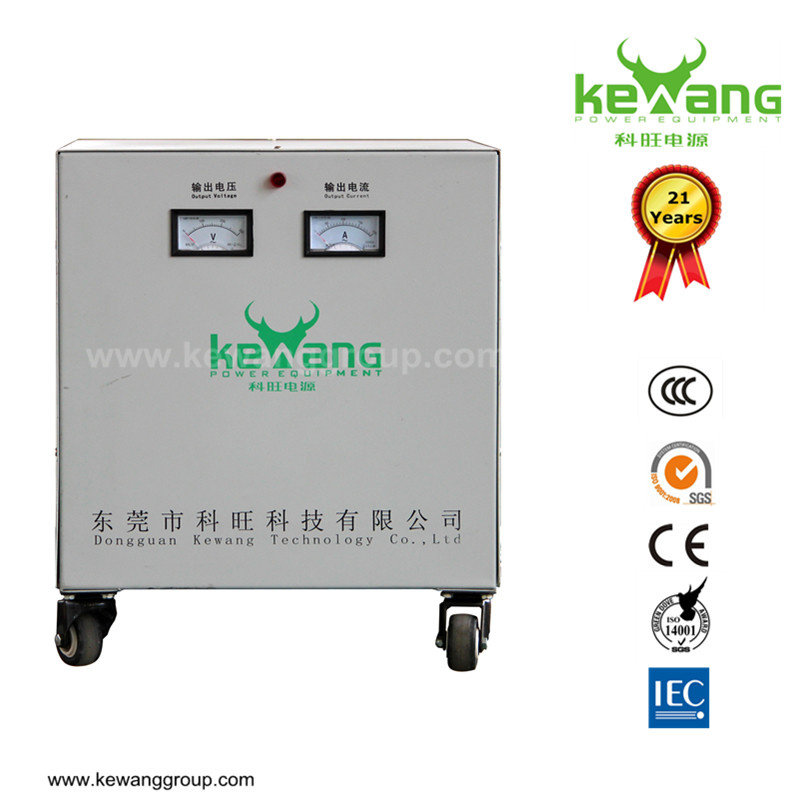

Three phase 100kVA air-cooled low voltage transformer
Kewang Group( Dongguan Kewang Technology Co., Ltd) was founded in 1995, is one of the largest professional provider and leader in the new energy and power distribution field in China with product line: Industrial type/Customized Voltage Stabilizer&Transformer, Cummins Generators, Reactor, Inverter, UPS.
Product Introduction
Adopted high quality materials and advanced techniques, by air-cooled method, via vacuum pressure impregnating and strict quality-inspection, SE air-cooled LV transformers possess following features: high efficiency, low loss, low noise, high reliability and strong load capacity; SE air-cooled LV transformers are classified into: auto transformer, isolation transformer, single phase transformer and three-phase transformer;
Input voltage: three-phase 440V,420V,400V,380V,etc.
Output voltage: three-phase 440V,380V,220V,200V,190V,120V,100V,etc.
Single phase and special products can be made as per requirements
Application:
Applied to the machineries with operating voltage less than 1000V:
Precise instruments, test equipment, electric equipment, production lines, railways, R&D science technology institutions.
| Parameters |
| Rated capacity | 10kVA~1250kVA |
| Frequency | 50Hz/60Hz |
| Coupling | Yna0 DyN11 |
| Efficiency | >95% |
| Insulation class | B/F/H |
| Power frequency withstand voltage | 3000V60S |
| Insulation resistance | 500VDC>5ΜΩ |
| Ambient temperature | 10~40ºC |
| Relative humidity | <90% |
| Specifications |
| SE Air-cooled Three-phase Auto Transformer Specification |
| Model | Capacity(kVA) | Dimension(W×D×H)mm |
Weight (kg)
|
| SE-10 | 10 | 500×400×500 | 75 |
| SE-15 | 15 | 500×400×500 | 85 |
| SE-20 | 20 | 600×500×520 | 110 |
| SE-30 | 30 | 600×500×520 | 120 |
| SE-40 | 40 | 600×500×520 | 130 |
| SE-50 | 50 | 600×500×520 | 160 |
| SE-60 | 60 | 600×500×520 | 170 |
| SE-80 | 80 | 720×560×800 | 230 |
| SE-100 | 100 | 720×560×800 | 240 |
| SE-150 | 150 | 720×560×800 | 280 |
| SE-200 | 200 | 880×680×980 | 420 |
| SE-250 | 250 | 880×680×980 | 460 |
| SE-300 | 300 | 880×680×980 | 500 |
| SE-350 | 350 | 1180×880×1280 | 580 |
| SE-400 | 400 | 1180×880×1280 | 620 |
| SE-500 | 500 | 1180×880×1280 | 700 |
| SE-600 | 600 | 1280×950×1500 | 880 |
| SE-800 | 800 | 1280×950×1500 | 980 |
| SE-1000 | 1000 | 1400×1100×1700 | 1200 |
| SE-1250 | 1250 | 1400×1100×1700 | 1400 |
| SE Air-cooled Three-phase Isolation Transformer Specification |
| Model | Capacity(kVA) | Dimension(W×D×H)mm | Weight (kg) |
| SE-10 | 10 | 600×500×520 | 110 |
| SE-15 | 15 | 600×500×520 | 130 |
| SE-20 | 20 | 600×500×520 | 160 |
| SE-30 | 30 | 600×500×520 | 170 |
| SE-40 | 40 | 720×560×800 | 240 |
| SE-50 | 50 | 720×560×800 | 280 |
| SE-60 | 60 | 720×560×800 | 320 |
| SE-80 | 80 | 880×680×980 | 420 |
| SE-100 | 100 | 880×680×980 | 460 |
| SE-120 | 120 | 880×680×980 | 500 |
| SE-150 | 150 | 1180×880×1280 | 580 |
| SE-200 | 200 | 1180×880×1280 | 620 |
| SE-250 | 250 | 1180×880×1280 | 700 |
| SE-300 | 300 | 1280×950×1500 | 880 |
| SE-400 | 400 | 1280×950×1500 | 980 |
| SE-500 | 500 | 1400×1100×1700 | 1200 |
| SE-600 | 600 | 1400×1100×1700 | 1400 |
| SE-800 | 800 | 1600×1200×1900 | 1800 |
| SE-1000 | 1000 | 1600×1200×1900 | 2200 |
| SE-1250 | 1250 | 1800×1500×2200 | 2800 |
Above size and weight only for reference
