| Prod Model: |
se-30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
440V,420V,400V,380V |
| Output Voltage: |
400V,380V,220V,200V,190V,120V,100V |
| Compatible Voltage: |
Less Than 1000 V |
| Where We Use: |
Precise Instruments, Test Equipments etc |
| Frequency: |
50Hz/60Hz |
| Rated Capacity: |
10kVA to 1250kVA |
| Product Name: |
Good Quality 3 Phase Low Voltage Current Transform |
| Insulation Class: |
B/F/H |
| Application: |
Audio |
| Phase: |
Three |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Kewang |
Product Description

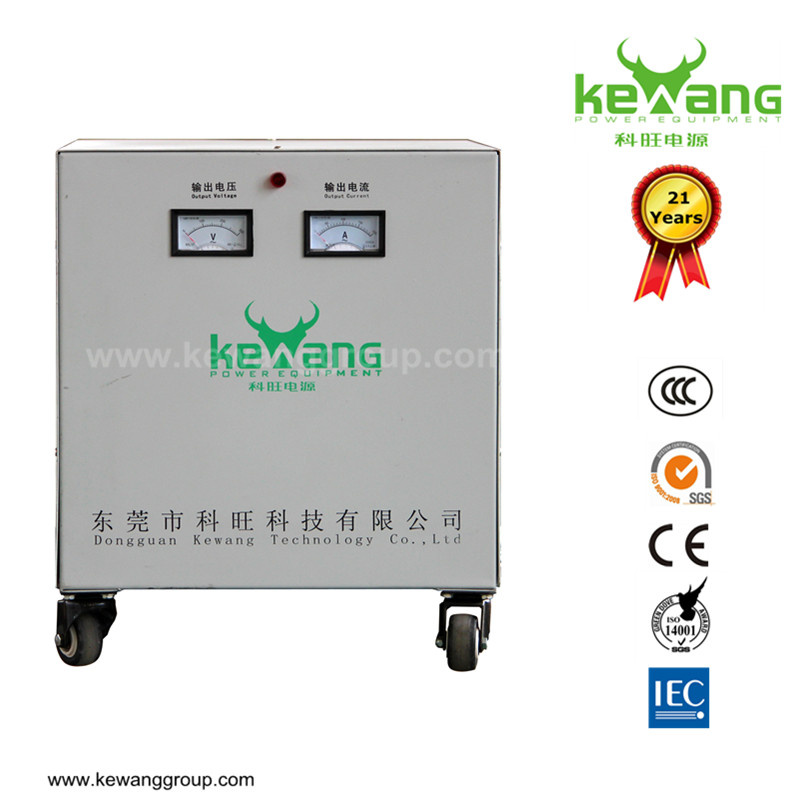

SE Series Air-cooled Low Voltage Transformer
Introduction
With high quality materials and advanced technology, by air-cooled method, via vacuum pressure impregnating and strict quality inspection, SE Air-cooled LV transformers are classified into: Auto transformer, Isolation transformer, Single phase transformer and Three-phase transformer;
Feature
1. Air-cooled method and vacuum pressure impregnating technology with ensured quality;
2. 97% high efficiency with low loss,low loise, strong load capacity;
3. Protection system: Over load, over voltage, short circuit protection;
4. Customized project accepted.
Senarios
Applied to the machines with operating voltage less than 1000V: Precise Instruments, Test Equipment, Electric Equipment, Production Lines, Railways, R&D Science Technology Institutions.
| Parameters |
| Rated capacity | 10kVA~1250kVA |
| Frequency | 50Hz/60Hz |
| Coupling | Yna0 DyN11 |
| Efficiency | >95% |
| Insulation class | B/F/H |
| Power frequency withstand voltage | 3000V60S |
| Insulation resistance | 500VDC>5ΜΩ |
| Ambient temperature | 10~40ºC |
| Relative humidity | <90% |
| Specifications |
| SE Air-cooled Three-phase Auto Transformer Specification |
| Model | Capacity(kVA) | Dimension(W×D×H)mm |
Weight (kg)
|
| SE-10 | 10 | 500×400×500 | 75 |
| SE-15 | 15 | 500×400×500 | 85 |
| SE-20 | 20 | 600×500×520 | 110 |
| SE-30 | 30 | 600×500×520 | 120 |
| SE-40 | 40 | 600×500×520 | 130 |
| SE-50 | 50 | 600×500×520 | 160 |
| SE-60 | 60 | 600×500×520 | 170 |
| SE-80 | 80 | 720×560×800 | 230 |
| SE-100 | 100 | 720×560×800 | 240 |
| SE-150 | 150 | 720×560×800 | 280 |
| SE-200 | 200 | 880×680×980 | 420 |
| SE-250 | 250 | 880×680×980 | 460 |
| SE-300 | 300 | 880×680×980 | 500 |
| SE-350 | 350 | 1180×880×1280 | 580 |
| SE-400 | 400 | 1180×880×1280 | 620 |
| SE-500 | 500 | 1180×880×1280 | 700 |
| SE-600 | 600 | 1280×950×1500 | 880 |
| SE-800 | 800 | 1280×950×1500 | 980 |
| SE-1000 | 1000 | 1400×1100×1700 | 1200 |
| SE-1250 | 1250 | 1400×1100×1700 | 1400 |
| SE Air-cooled Three-phase Isolation Transformer Specification |
| Model | Capacity(kVA) | Dimension(W×D×H)mm | Weight (kg) |
| SE-10 | 10 | 600×500×520 | 110 |
| SE-15 | 15 | 600×500×520 | 130 |
| SE-20 | 20 | 600×500×520 | 160 |
| SE-30 | 30 | 600×500×520 | 170 |
| SE-40 | 40 | 720×560×800 | 240 |
| SE-50 | 50 | 720×560×800 | 280 |
| SE-60 | 60 | 720×560×800 | 320 |
| SE-80 | 80 | 880×680×980 | 420 |
| SE-100 | 100 | 880×680×980 | 460 |
| SE-120 | 120 | 880×680×980 | 500 |
| SE-150 | 150 | 1180×880×1280 | 580 |
| SE-200 | 200 | 1180×880×1280 | 620 |
| SE-250 | 250 | 1180×880×1280 | 700 |
| SE-300 | 300 | 1280×950×1500 | 880 |
| SE-400 | 400 | 1280×950×1500 | 980 |
| SE-500 | 500 | 1400×1100×1700 | 1200 |
| SE-600 | 600 | 1400×1100×1700 | 1400 |
| SE-800 | 800 | 1600×1200×1900 | 1800 |
| SE-1000 | 1000 | 1600×1200×1900 | 2200 |
| SE-1250 | 1250 | 1800×1500×2200 | 2800 |
Above size and weight only for reference
