| Prod Model: |
BSMJ0.44-15KVAR-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Anti Rust Metal Sheet Ce Capacitor |
| Terminal Connection: |
Anti Fire Bakelite |
| Cylinder Power Capacitor Function: |
Reduce Reactive |
| Medium: |
Wax Type Power Capacitor |
| Release Electricity Time: |
30 Second Film Capacitor |
| Anti Explosion: |
Explosion Device Inside |
| Cylinder Power Capacitor Type: |
Self Healing Low Voltage |
| IEC Standard: |
IEC60831 |
| Phase: |
Single Phase |
| Handle Sample Time: |
5 Days |
| Type: |
Polypropylene Capacitor |
| Application: |
Power |
| Package Type: |
Surface Mount |
| Capacitance: |
50-100uf |
Product Description

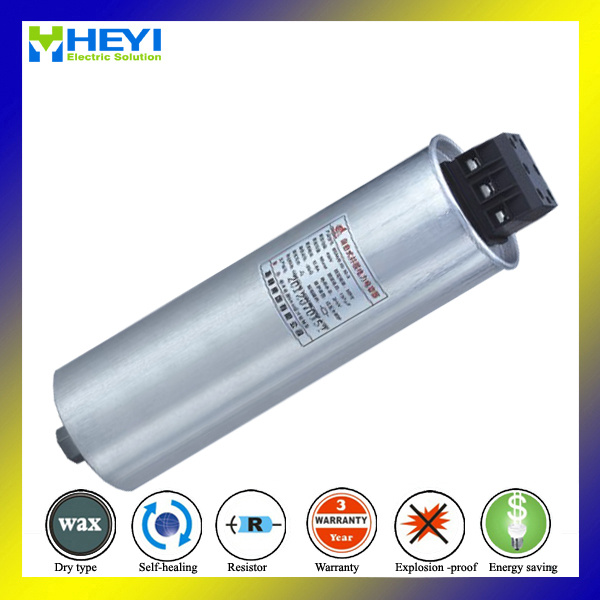

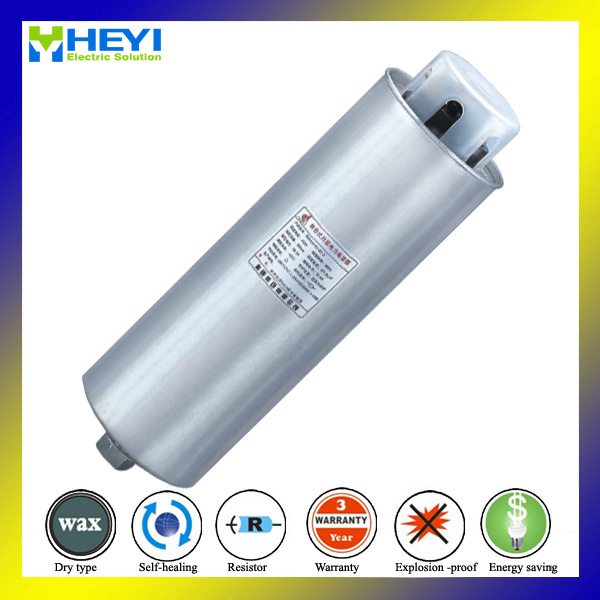

Power capacitor single phase 440v 15kvar 50hz /60hz cylinder type Ce certificate match for power capacitor bank reduce power reactive 1.low voltage shunt type
2.30% reduce power loss
3.dry type ,no pollution
4.explosion proof device inside
BSMJ 0.44kv 1~50kvar three phase
Voltage:440V
Capacity:1~50KVAR
Rated capacity UF:15.7~786.3UF
Rated current :1.3A~64.2A
Power capacitor single phase 440v 15kvar 50hz /60hz cylinder type Ce certificate Specification
Series |
Power capacitor single phase 440v 15kvar 50hz /60hz cylinder type Ce certificate |
Rated Voltage Range |
From 220-1000 VAC |
Capacitor Connection |
3 phase (1 phase on request) |
Capacitor Frequency |
50/60 Hz. |
Capacitor Power Range |
5- 60 KVAR |
Dielectric |
Metalized polypropylene film with self healing |
Protection |
IP 42 (IP 54 on request) |
Discharge Resistors |
Built in automatic discharge resistors included, less than 75V within 3 minutes after de-energizing the capacitor |
Tolerance |
±5% |
Maximum Ambient Temperature |
-25 °C--50°C (Other temperature range on request) |
Average temperature within 24 hours below 40°C&average |
temperature with a year below 30°C |
Max. Relative Humidity |
≤90% |
Max. Altitude |
≤2000m (Other altitude on request |
Over Voltage Tolerance |
1.1 UN (8 hours max. in every 24 hours) |
1.15 UN (30 minutes in every 24 hours) |
1.2 UN (5 minutes in every 24 hours) |
1.3 UN (1 minutes in every 24 hours) |
Over Current Tolerance |
30% permanently |
Max. Surge Current |
200 times of rated current |
Dielectric Loss |
≤0.2 Watt / KVAR |
Voltage Test |
Between terminals: 2.15 Un for 10 seconds. |
Between terminals to container: 3000VAC for 10 seconds |
Safety System |
Self protection device |
Capacitor Case Material |
Rust-Proof painted steel |
Execution |
Indoor, minimum distance between units : 50mm |
Standard |
IEC60831 / GBT12747 |
Power capacitor single phase 440v 15kvar 50hz /60hz cylinder type Ce certificate Advantage
1.20 years global leading profession manufacture of power capacitor
2.Metallized polypropylene film work with 20 degree the whole day

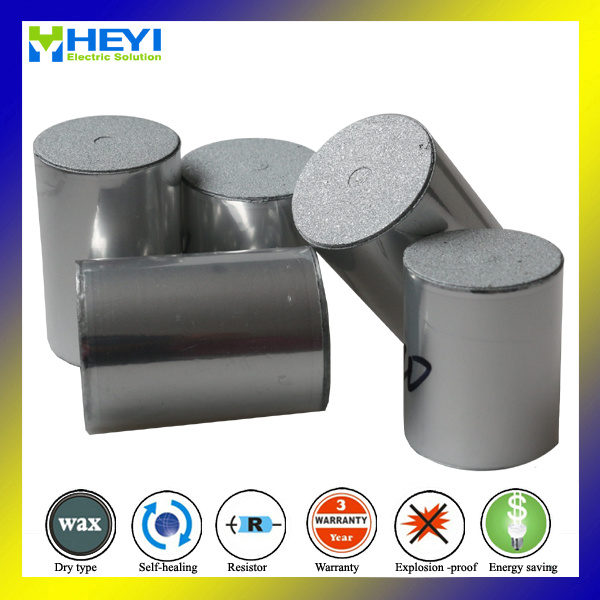

3.Import auto machine wind the film core in order confirm the core quality
4.each core will test the capacity by auto machine
5.Each products will put explosion proof device and release resistor
6.OEM is warmly welcome
7.Convenient : 45 minutes to wenzhou airport
Power capacitor single phase 440v 15kvar 50hz /60hz cylinder type Ce certificate function
1.Safety: With over pressure prodection device, automatic power disconnection to any fault or overload; the residual voltage will drop to 75V or lower in 3 minutes after capacitor being disconnected from power source.
2.Full-dry construction: Fine vacuum silicon oil prevention No pollution to the environment.
3.Long-life: Constructed with special composite electrical material and reinforced insulation materrial,The spoilage is low with tiny loss of power capacity,Normally capacity drops 2% in two years longer operation.
4.Small dimension and novel appearance,convenient for installation,designed at the customers' request,adapted in compensation capacitors.
Power capacitor single phase 440v 15kvar 50hz /60hz cylinder type Ce certificate Payment terms
1. 30% T/T advance , the balance against to the copy B/Lor LC at sigh
2. The other specific issues can negorate.
3. Pls confirm the details with us before do the prepayment.
Power capacitor single phase 440v 15kvar 50hz /60hz cylinder type Ce certificate Packing information
1. Inside foam package ,outside strong paper package
2. 10pcs/per CTN
3. G/N.W: 20/19kg
4. We can packing as your required,good looking design
Why choose Power capacitor single phase 440v 15kvar 50hz /60hz cylinder type Ce certificate
1).ISO9001,SGS,Gold golden supplier
2) Monthly Production Capacity -- 100000 Pcs
3)All goods examined before delivery by 10 QC staff
4)Prompt Reply Within 12 Hours
5)8000 square meters work environment

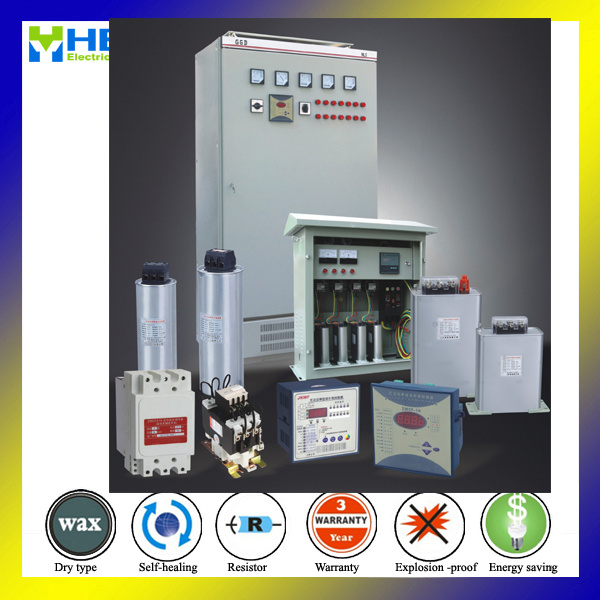

We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on
1. Who we are
Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer
Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss
2 why choose us
We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.
3 Heyi Mission, vision values
Heyi mission is to provide reliable, accurate and customized current transformer solution
Heyi vision is leading global split core CT manufacture and energy solution provider
Values Enthusiastic by our work, we offer a quality personal and close service to our customers
Some products have been approved by CE and IEC certificates.
