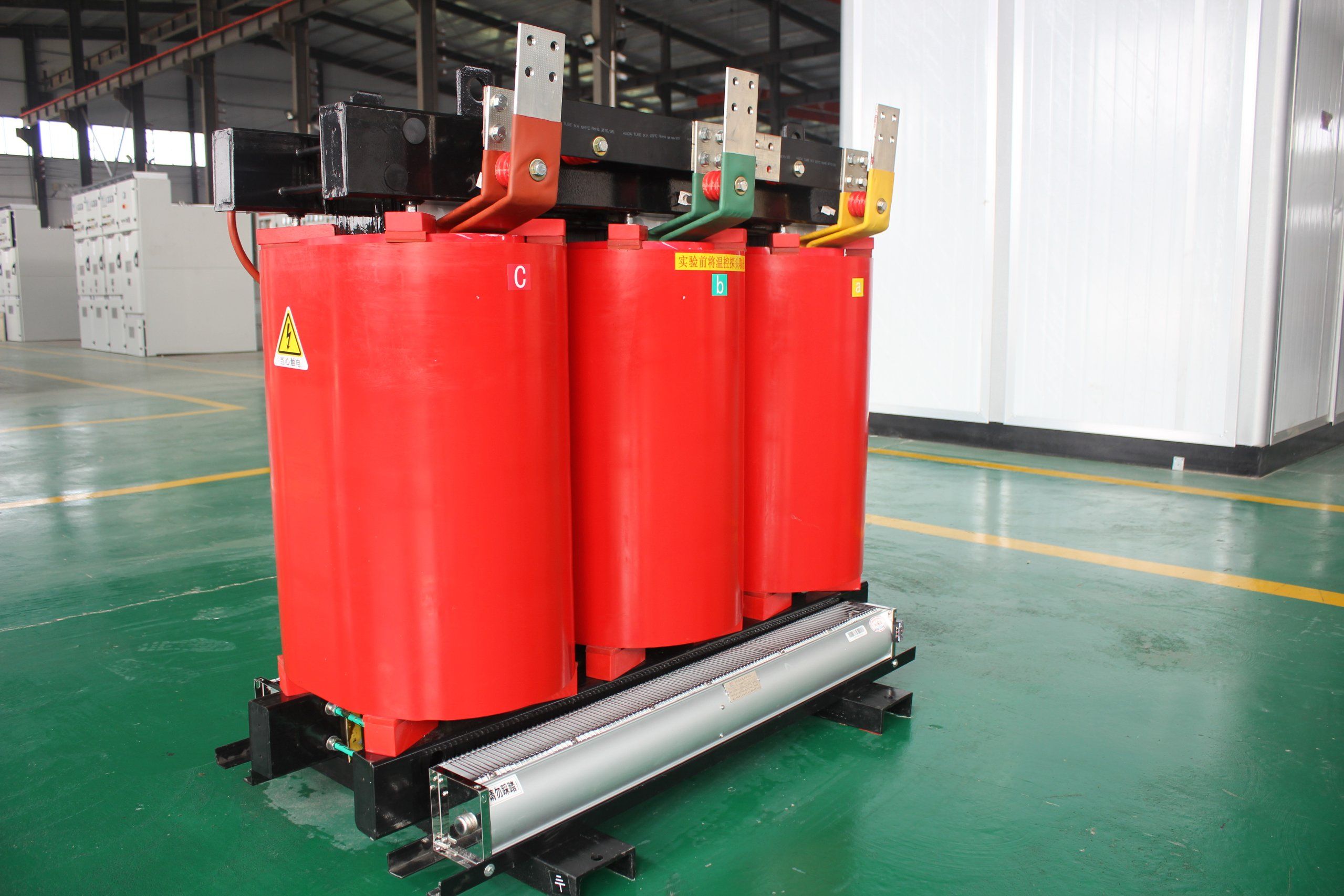

Three Phase 50kVA 10kv Dry Type Power Transformer

Prod Model:	SC(B)10
Frequency:	50-60Hz
Rated Capacity:	50kVA
Coil Structure:	Toroidal
High Voltage:	10kv
Low Voltage:	220V/400V/6kv
No Load Loss:	270W
Load Loss:	995W
No Loss Current:	2.2%
Short-Circuit Impedance:	4%
Coil Material:	Aluminum/Copper
Application:	Lighting
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Two-winding Transformer
Brand:	Zhongyi

Product Description

Product Discription

1.Safe, fireproof, no pollution, it can be installed directly in the load center.
2.Free maintenance, easy to install, low total operating costs.
3.With good moisture resistance, it can work normally under the100% humidity. After it stopped operating, the outage without pre-drying can be put into operation again.
4.Low loss, low partial discharge, low noise, good heat dissipation capacity. Under the forced air cooling conditions, it can run at 150% rated load.
5.The equipped perfect humidity protection & control system can provide reliable.

Cast-foil Coil:

Adopting the entire section of copper foil, together with the F-class turn insulation, low voltage winding is wound by the special low-voltage foil winding machine. The foil coil resolves such understanding problems as large short-circuit stress, uneven ampere turn, poor heat dissipation, existing the winding spiral angle as well as unsteady manual welding quality due to low voltage and large current coil winding products. At the same time, the winding end in our company is treated with resin potting, solidification to make shape, moisture-proof and anti-fouling, the lead copper platoon is automatically welded by argon arc welding.

emperature Control Device:

the transformer adopts BWDK series of signal thermometer. The temperature components, are embedded in the upper half of the low-voltage coil, can automatically detect and dynamically display
the work humidity of phase coils and also have the functions of over-temperature alarm and trip.

Packaging & Shipping

Packing:
1. Wrapped with plastic film.
2. Fixed in a wooden case. 3. Wooden case on a pallet.
4. Iron shelf   5. Special packaging: According to customer's requirement
Delivery Details
10-20 days according to order quantities

Company Information

  Baoding Zhongyi Electrical material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30,000 square meters, the building area of 16,000 square meters. The registered capital of the company is RMB 81,000,000.
The company mainly produces: oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards  and international standard.
Applications
 This kind  SC(B) 9dry type power transformer is applied to power system of three-phase, 50Hz as well as 35kV and below, it is the main transformer equipment of medium and small-sized transformer substation, supplies power distribution, power and illumination for the industry and agriculture, Hotel airport, power plant, hospital, skyscraper, shopping center and residential areas.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 15-20 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
 Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery with testing report.
