Three Phase AC Current Voltage Transducer

Name: Three Phase AC Current Voltage Transducer
Brand: all-electronics-online.com
SKU: 672617131
Availability: InStock
Rating: 4.4 (100 reviews)

Price:	Negotiable/Piece
Trade Terms:	FCA,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FUD-3I-3U
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Accuracy:	0.2%, 0.5%
Consumption:	Less Than 5va
Insulation Voltage:	AC 2kv/Min.1mA (Between Input ~ Output / Power)
Insulation Resistance:	More Than 20m
Surge Voltage:	5kv
Temperature:	-40 to +70 Degree
Dimension:	110mm×75mm×120mm
Output:	Digital Sensor
Usage:	Current Transducer

Product Description

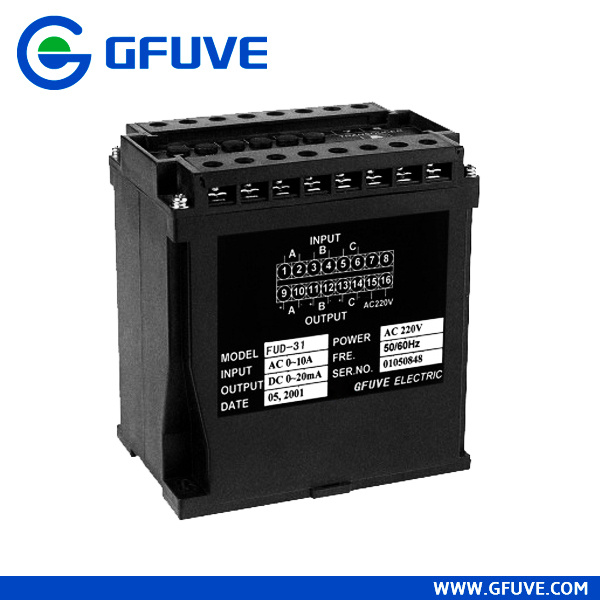

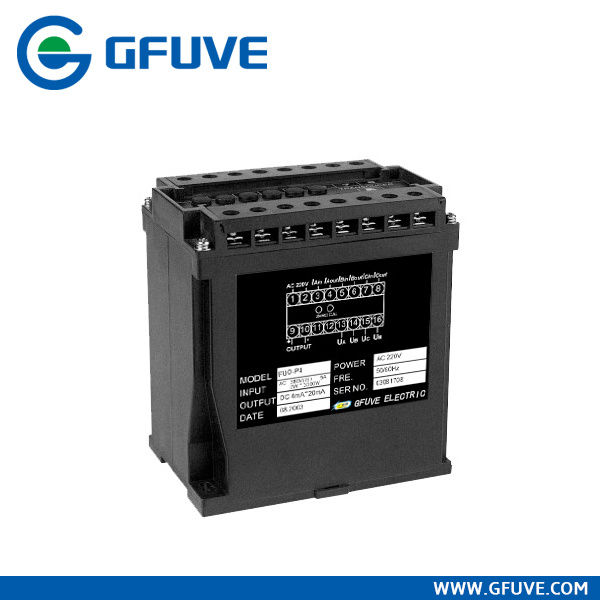

Three phase AC current voltage Transducer

Function & Feature
Transforms the measured AC current/voltage to the DC current/voltage output according to the linear scale
Excellent temperature characteristic and good working stability
Configuration compactness and briefness

FUD-Type-Input-Power Supply-Output
Type	3I: Three Phase AC Current Transducer 3U: Three Phase AC Voltage Transducer
AC Input	A1: 0~1A, A2: 0~5A, A3: 0~10A. V0: 0~70V, V1: 0~120V, V2: 0~250V, V3: 0~300V, V4: 0~450V, V5: 0~500V.
Power Supply	P1: AC110V±10%, P2: AC220V±15%, P3: AC110V~330V.
DC Output	O1: 0~5V, O2: 1~5V, O3: 0~20mA, O4: 4~20mA, O5: RS485.
Example 1: FUD-3I-A2-P2-O4
FUD Series Three Phase AC Current Transducer	Input: AC 0~5A
	Power Supply: AC220V±15%
	Output: DC 4~20mA
Example 2: FUD-3U-V2-P2-O4
Details: FUD Series Three Phase AC Voltage Transducer	Input: AC 0~250V
	Power Supply: AC220V±15%
	Output: DC4~20mA
Please check the Type, Input range, Output range and Power supply at your order.

Technical Index

Standard	GB/T 13850-1998, IEC688:1992
Accuracy	0.2%, 0.5%
Consumption	≤5VA
Accutacy drift	Annual Variation < 0.2%
Insulation Voltage	AC 2kV/min.1mA (Between Input ~ Output / Power)
Insulation Resistance	≥20MΩ (DC500V)
Surge voltage	5KV (Peak Value), 1.2/50μs
Response Time	≤350ms
Input Range	AC 0~10A ,AC 0~500V(Optional), 50/60Hz
Absorbed Power	<0.5VA/450V, <0.2VA/100V, <0.1VA/5A
Overload	Current: 2 times continuous,30 times /1s .Voltage: 2 times continuous
Load Resistance	Current output: RL≤550Ω Voltage output: RL≥2kΩ
Working environment	Temperature: -10~50 RH: 20~90%, Without condensation
Storage conditions	Temperature: -40~70 RH: 20~95%, Without condensation
Installation	35mm DIN Sliding-way or M4 screws
Dimension	110mm×75mm×120mm
