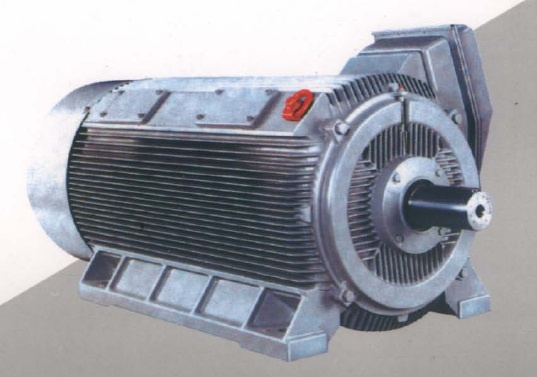

Three -Phase AC Frequency-Control Variable-Speed Asynchronous Motor

Name: Three -Phase AC Frequency-Control Variable-Speed Asynchronous Motor
Brand: all-electronics-online.com
SKU: 838522585
Availability: InStock
Rating: 4.7 (146 reviews)

Price:	US $ 158-2500/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YPTZ/YPTQ
Mounting Arrangement:	Horizontal shaft
Degrees Of Protection:	IP54
Method Of Cooling:	IC411 for series YPTZ; IC 416 for series YPTQ.
Application:	Industrial
Operating Speed:	Adjust Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	Variable Frequency Starting
Number Of Poles:	2,4,6,8
Brand:	LANZHO ELECTRIC CORPORATION

Product Description

Application

The series of motors are suitable to drive compresspr,blower,water pump,breaker ,hoist,elevator,veneer reeling machine,planisher,mixer,rotray kiln,rig and locomotive ect,and used as a prime motor operated together with the trequendy converter on the occasion necessary to make variable-speed in mining industry,mechanical industry,petrochemical industry,papermaking induatry,mctallurgical industry and building materials industry etc..

Mounting Arrangement

Horizontal shaft:

Mounting arrangement of the satandard motor: IM B3

For other mounting arrangement on user's request: e.g. IM B 35 , IM VI ect..

Degrees of protection :IP 54

Method of cooling

IC411 for series YPTZ;

IC411 for series YPTQ;

List of output for series YPTZ/YPTQ 3-Phase ac frequency-control variable-speed asynchhronous motor.

Shaft Height		Poles
		2	4	6	8
		Output power
	1	185	200	185	132
	3	200	220	200	160
	5	220	250	220	(180)
	7		280
355	1	250	315	250	200
	3	280	355	280	220
	5	315	400	315	250
	7	355	450	355	280
400	1	400	500	400	315
	3	450	560	450	355
	5	500	630	500
450	1	560	710	560	400
	3	630	800	630	450
	5	710	(860)	710	500
	7	800		(770)
500	1	900	900	800	560
	3	1000	1000	900	630
	5	1120	1120	(960)	(680)
	7		(1200)
560	1	1250	1250	1000	710
	3	1400	1400	1120	800
	5		1600	1250	900
	7			(1320)	1000
