Three Phase AC to AC 90-280VAC to 480VAC 15A Black Solid State Relay SSR Relay with Ce

Name: Three Phase AC to AC 90-280VAC to 480VAC 15A Black Solid State Relay SSR Relay with Ce
Brand: all-electronics-online.com
SKU: 795827075
Availability: InStock
Rating: 4.6 (27 reviews)

Price:	US $ 1-20/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SSR
Certificates:	Ce RoHS ISO
The Working Instruction:	LED
Ambient Temperature:	-30 ºC ~+75ºC
Insulation Resistance:	1000mΩ/500VDC
Off Leakage Current:	≤10mA

Product Description

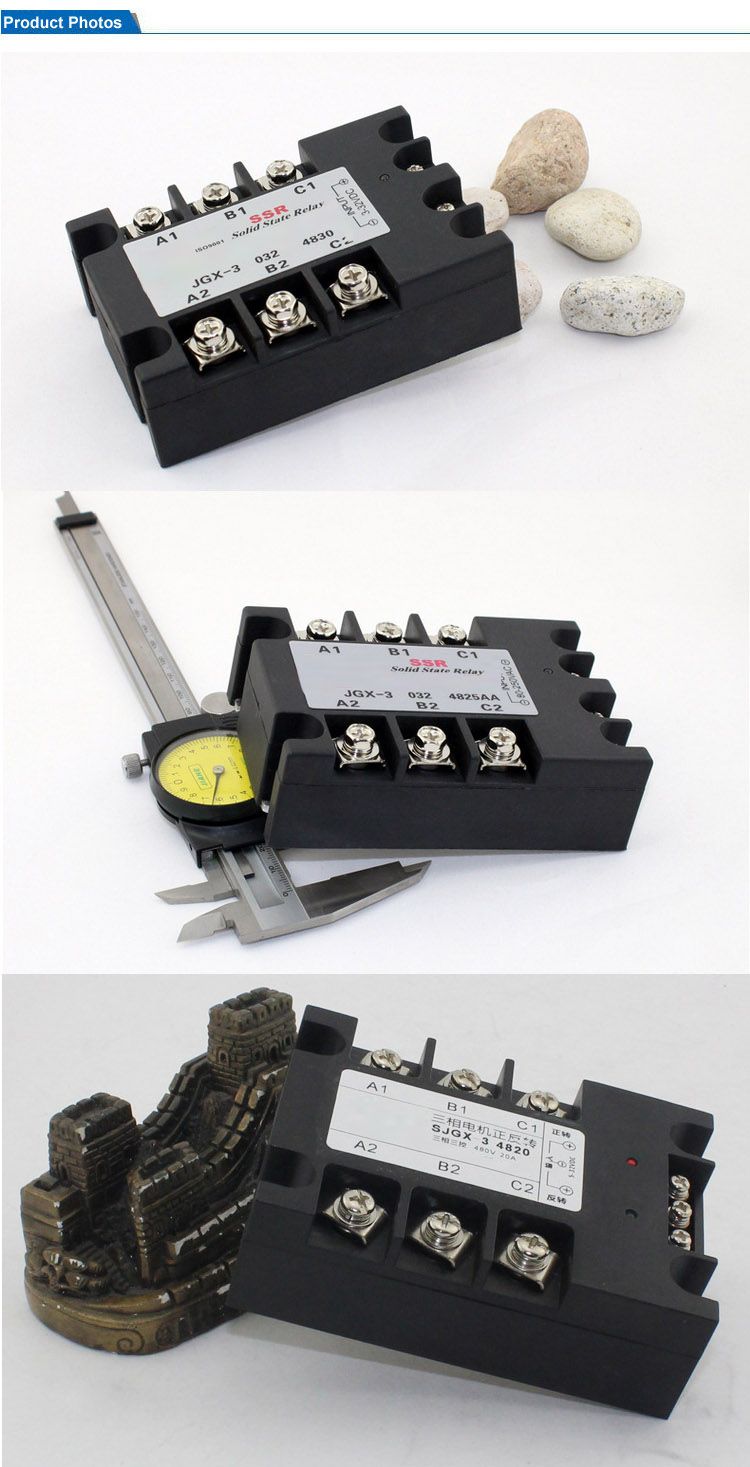

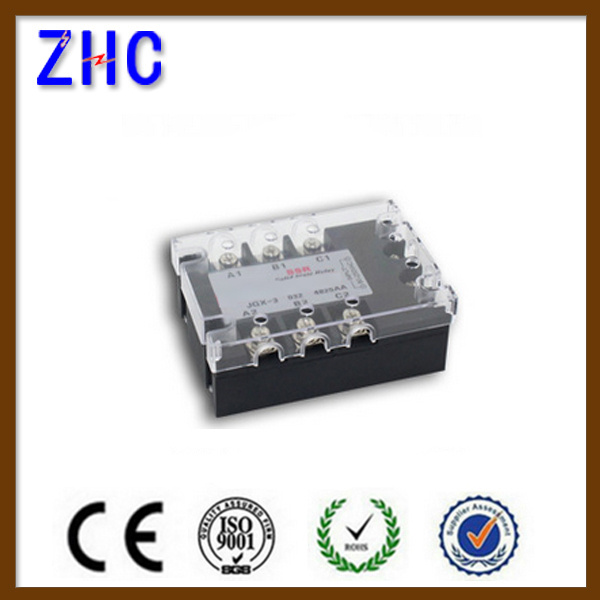

Three Phase AC To AC 90-280VAC To 480VAC 15A Black Solid State Relay SSR Relay With CE

Features:

solid-state relay (SSR) is a new non-contact electronic switching device with excellent switching performance, and it is designed with international advanced technology. It requires only a small input control current, can be well compatible with TTL, HTL, CMOS integrated circuits and etc; While the output loop adopts SCR or GTR to switch on and off the load current. There is photocoupler to isolate the input and output, no movable contact parts. It comes with the features of reliable, fast switch, noiseless, long life, compact, no spark, corrosion resistant, explosion-proof, antivibration and so on.

It is widely applied in computer external connect device, constant heating equipment; numerical control machines, remote control systems, industrial automation equipment; signal lamps, traffic lights, stage lighting control equipment; instruments, medical equipment, photocopiers, photo printing, rubber and plastic machinery , automatic washing machine and many other fields where need the explosion-proof, anti-temperature, corrosion resistant. It becomes the ideal replacements of relay (EMR) family.

DC-AC solid state relay 3 phase

Control Method	DC-AC solid state relay 3 phase
Load Current	10A,15A,20A,25A,30A,40A,50A,60A,75A,80A,100A,120A
Control Voltage	3~32VDC
Control Current	10~30mA
On Voltage	≤2V
Off Leakage Current	≤10mA
On-off Time	10ms
Dielectric Strength	2500VAC
Insulation Resistance	1000MΩ/500VDC
Ambient Temperature	-30ºC~75ºC
Mounting Method	Bolt fixed
The working Instruction	LED
Weight	450g

AC-AC solid state relay 3 phase

Control Method	AC-AC solid state relay 3 phase
Load Current	10A,15A,20A,25A,30A,40A,50A,60A,75A,80A,100A,120A
Control Voltage	70-280VAC
Control Current	AC≤12mA
On Voltage	≤1.8V
Off Leakage Current	≤10mA
On-off Time	≤1.8ms
Dielectric Strength	2500VAC
Insulation Resistance	1000MΩ/500VDC
Ambient Temperature	-30ºC~75ºC
Mounting Method	Bolt fixed
The working Instruction	LED
Weight	450g

FAQ

How to Order?
1. Please let us know what kind of model.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay the discussed deposit soon.
5. After getting your deposit payment, all goods will be sent to you in by sea or air within one month.
6. OEM/ODM is welcomed.
Terms of Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we can declare lower value if needed.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Terms of Payment:
1. For bulk order, TT or L/C at sight.
2. 30% deposit and 70% against shipping documents.
3. Sample order we accept payment such as paypal, western union, visa card.
Warranty:
1.We provide 2 year quality warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods .

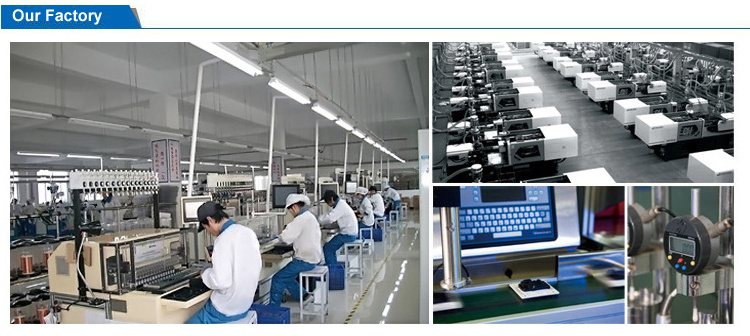

About US:

Our company in the R&D, manufacture and sale of low voltage electric applicants, such as industrial plug, aerial fittings, switches, distribution box and other related products. Our factory, with the aim of high quality and low price, offers superior OEM services, and has accumulated abundant experience in manufacturing low voltage.

1. We already get the certificate of ISO9001, CE, SGS, RoHS

2. We have 10 years of manufacture and 8 years exporting experience.

3. We have completely sales service system, ensure every detail is going smooth.

4. We have new designed products each year by our R&D Department.

5. Perfect testing system ensure each product is qualified.

6. We have a good reputation in Russia, Spain, India, Thailand, south American, MID-east market and so on.

How to Order?

1. Please let us know what kind of model.

2. Proforma invoice (PI) will be sent to you.

3. Please check and confirm the PI.

4. Once we confirmed the order, please pay the discussed deposit soon.

5. After getting your deposit payment, all goods will be sent to you in by sea or air within one month.

6. OEM/ODM is welcomed...

Shipping:

1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).

2. We Provide Drop shipping Service.

3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.

4. In order to ensure you receive your order tax free upon import, we can declare lower value if needed.

5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Payment:

1. TT or L/C at sight.

2.30% deposit and 70% against shipping documents.

Warranty:

1. We provide 2 year quality warranty.

2. If the product is defective, please notify us within 3 days of delivery.

3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods.

Based on mutual benefit, our company development business with more than 50 countries, our main market is south amercian, north Africa, Middle East Asian, south east Asian, east Europe.
