Three Phase Asynchronous Electrical Motor, 3000rpm, 315kw, Ie3 Efficiency

Name: Three Phase Asynchronous Electrical Motor, 3000rpm, 315kw, Ie3 Efficiency
Brand: all-electronics-online.com
SKU: 790582705
Availability: InStock
Rating: 4.9 (22 reviews)

Price:	US $ 58-6000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YE3-355L-2
Frame Size:	90-355
Efficiency Class:	Ie3 (IEC 60034-30)
Material:	Cast Iron
Color:	Blue (as Customers Required)
Application:	Universal
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	Direct on-line Starting
Species:	Ie3
Certification:	Ce
Brand:	TF

Product Description

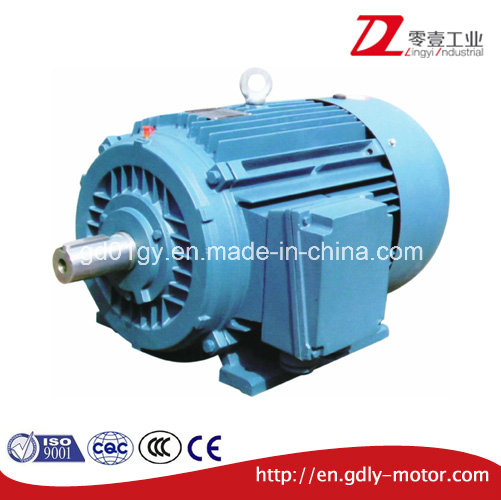

IE3 Efficiency Three Phase Asynchronous Electrical Motor

Motor Basic Information

Frame size	80- 355
Pole	2-8
Rated voltage	380V
Frequency	50Hz
Power	0.75kw-375Kw
Protection degree	IP55
Cooling method	IC411
Insulation class	F
Ambient Temperature	-15°C~40°C
Altitude	not exceed 1000 Meter
Working Duty	S1(Continuous)

Product Description

1/. YE3 series premium efficiency three phase asynchronous motor (IP55) is the low voltage totally enclosed fan cooled squirrel cage asynchronous motor.

2/. YE3 motor efficiency value completely reach class 2 standard of GB18613-2012, and conform to IE3 degree of international IEC60034-30 standard.

3/. YE3 series motor mounting dimension and power rating conform to international IEC standards, and accordance with German DIN42673 standard.

4/. Frame size 280-355 motors equipped with oil drain and injection system.

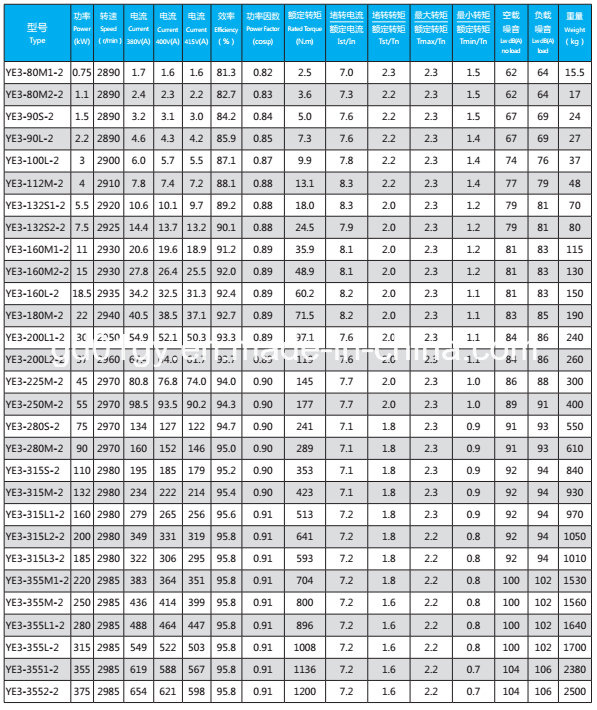

Technical Data

Application fields: machine tools, water pump, blower, compressor, and transportation, print, agriculture, food and more industries.

FAQ

Q: What is your MOQ of this item?
A: 5PCS.
For the first time cooperation, we accept trial sample order.

Q: What's your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.

Q: What's the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.

Q: Can we used our own brand on motors ?
A: Sure, we can offer OEM service,
manufacture with your authorized brand.

Our Office Block

Company Staff

Guangdong Lingyi Industrial Technology Co., Ltd set up since 1997, with 20 years development, we become one of the best companies in the industry for mechanical and electrical products system integration, logistics service and investment. The company has set up 21 subsidiaries located in southern, central, eastern and northern China, .

The products categories include:

1, Transmission Products: High and low voltage electric motors, geared motors, gear boxes, bearings, inverter and complete electrical cabinets

2, Automation Products: Automation systems, motion control, low voltage control products and systems, sensor and communication products,

3, Power distribution Products: Low-voltage power distribution products, medium voltage circuit breaker, intelligent building system and equipment.

4, Machinery components.

Count on our 20 years industry experiences. Guangdong Lingyi Industrial Technology Co., Ltd give you one-stop industrial products sourcing, procurement, system integration and services, satisfy your different needs in the industry.

We are looking forward to cooperating with you.
