| Prod Model: |
MS |
| Application: |
Industrial |
| Operating Speed: |
High Speed |
| Number Of Stator: |
Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
y-δ Starting |
| Brand: |
Dayou |
| Species: |
Ms Series |
| Certification: |
Ce/UL/CSA/So14001/ISO18001 |
| Number Of Poles: |
2/4/6/8 |
Product Description
Product Application:
MS series motors have been redesigned with quality materials, it is conform with IEC standards.MS series motors has the following several characteristics: 1) good performance;2)little vibration;3)low noise;4)safety and reliable operation;5)nice appearance;6)light weight;7)simple structure;8)easy maintenance.This motors adapt to general driver.
Main Features:
1) Waterproof,Vermin resistant,Corrosion resistant;
2) Quiet operation,Energy saving;
3) Multiple feet locations(easy installation);
4) Aluminum frame,end shields and base;
5) Shaft key and protector supplied;
6) Superior paint finish;
7) Motors made to heavy duty service factors;
8) Motors made for continous S1 duty;
9) Utilize Vacuum impregnated Class B insulation;
10) Class F insulation on request High performance and effciency;
11) Dependable,Superior life;
12) Reliable in country,city or factory environments.

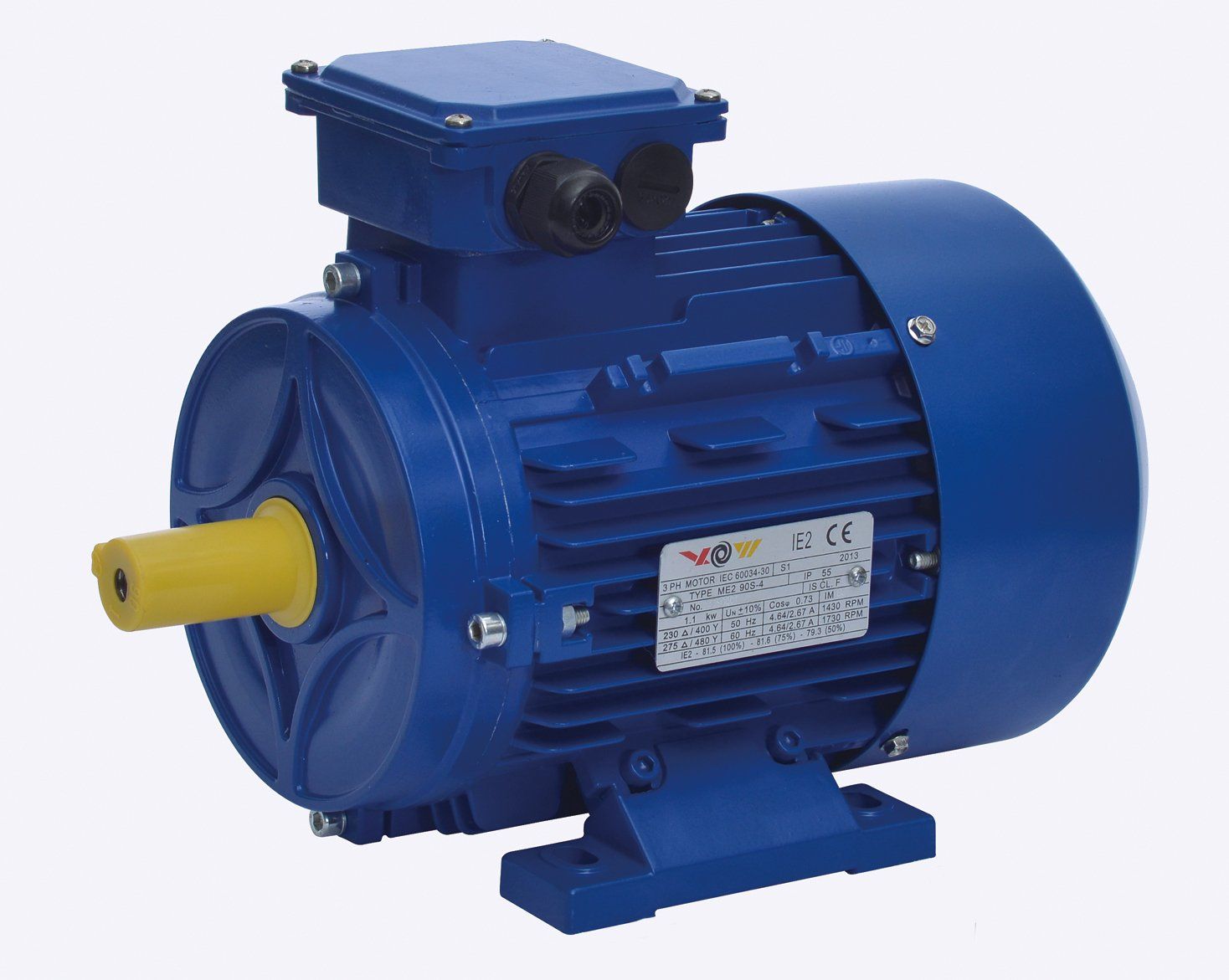

MS Series Three-Phase Asynchronous Motors Aluminum Housing
| Motor Basic Information |
| Frame size | 56-180 |
| Pole | 2/4/6/8 |
| Rated voltage | 220/380V;380/660;230/400;400/690 |
| Frequency | 50/60Hz |
| Power | 0.06kw-22Kw |
| Protection degree | IP54/55 |
| Implement Method | B3/B14/B34/B5/B35 |
| Cooling method | IC411 |
| Insulation class | F |
| Ambient Temperature | -15°C~40°C |
| Altitude | not exceed 1000 Meter |
| Working Duty | S1(Continuous) |
| Model | output | Voltage | Speed | Current | Eff. | Power factor | Tstar/Tn | Tmax/Tn | Start current |
| KW | HP | (V) | (r.p.m) | (A) | (%) | (cosΦ) |
| 2 Poles/3000rpm/50HZ |
| MS561-2 | 0.09 | 0.12 | 220/380 | 2800 | 0.57/0.33 | 62 | 0.68 | 2.3 | 2.4 | 6 |
| MS562-2 | 0.12 | 0.16 | 220/380 | 2800 | 0.67/0.38 | 67 | 0.71 | 2.3 | 2.4 | 6 |
| MS631-2 | 0.18 | 0.25 | 220/380 | 2800 | 0.91/0.53 | 69 | 0.75 | 2.2 | 2.4 | 6 |
| MS632-2 | 0.25 | 0.34 | 220/380 | 2800 | 1.17/0.68 | 72 | 0.78 | 2.2 | 2.4 | 6 |
| MS711-2 | 0.37 | 0.5 | 220/380 | 2800 | 1.65/0.95 | 73.5 | 0.8 | 2.2 | 2.4 | 6 |
| MS712-2 | 0.55 | 0.75 | 220/380 | 2800 | 2.33/1.35 | 75.5 | 0.82 | 2.2 | 2.4 | 6 |
| MS801-2 | 0.75 | 1 | 220/380 | 2800 | 3.03/1.75 | 76.5 | 0.85 | 2.2 | 2.4 | 6 |
| MS802-2 | 1.1 | 1.5 | 220/380 | 2800 | 4.42/2.55 | 77 | 0.85 | 2.2 | 2.4 | 6 |
| MS90S-2 | 1.5 | 2 | 220/380 | 2800 | 6.01/3.84 | 77 | 0.85 | 2.2 | 2.4 | 6 |
| MS90L-2 | 2.2 | 3 | 220/380 | 2800 | 8.61/4.98 | 78 | 0.86 | 2.2 | 2.4 | 6 |
| MS100L-2 | 3 | 4 | 220/380 | 2800 | 11.1/6.4 | 82 | 0.87 | 2.2 | 2.3 | 7 |
| MS112M-2 | 4 | 5.5 | 380/660 | 2800 | 8.2/4.7 | 85.5 | 0.87 | 2.2 | 2.3 | 7 |
| MS132S1-2 | 5.5 | 7.5 | 380/660 | 2800 | 11/6.3 | 85.5 | 0.88 | 2 | 2.2 | 7 |
| MS132S2-2 | 7.5 | 10 | 380/660 | 2800 | 15/8.6 | 86.2 | 0.88 | 2 | 2.2 | 7 |
| MS160M1-2 | 11 | 15 | 380/660 | 2800 | 21.3/12.2 | 88 | 0.88 | 2 | 2.2 | 7 |
| MS160M2-2 | 15 | 20 | 380/660 | 2800 | 28.7/16.4 | 89 | 0.89 | 2 | 2.2 | 7 |
| MS160L-2 | 18.5 | 25 | 380/660 | 2800 | 34.6/19.8 | 90 | 0.9 | 2 | 2.2 | 7 |
| MS180M-2 | 22 | 30 | 380/660 | 2800 | 40.9/23.4 | 90.5 | 0.9 | 2 | 2.2 | 7 |
| 4 Poles/1500rpm/50HZ |
| MS561-4 | 0.06 | 0.08 | 220/380 | 1400 | 0.49/0.28 | 56 | 0.58 | 2.3 | 2.4 | 6 |
| MS562-4 | 0.9 | 0.12 | 220/380 | 1400 | 0.67/0.39 | 58 | 0.61 | 2.3 | 2.4 | 6 |
| MS631-4 | 0.12 | 0.16 | 220/380 | 1400 | 0.84/0.48 | 60 | 0.63 | 2.2 | 2.4 | 6 |
| MS632-4 | 0.18 | 0.25 | 220/380 | 1400 | 1.12/0.65 | 64 | 0.66 | 2.2 | 2.4 | 6 |
| MS711-4 | 0.25 | 0.34 | 220/380 | 1400 | 1.44/0.83 | 67 | 0.68 | 2.2 | 2.4 | 6 |
| MS712-4 | 0.37 | 0.5 | 220/380 | 1400 | 1.94/1.12 | 69.5 | 0.72 | 2.2 | 2.4 | 6 |
| MS801-4 | 0.55 | 0.75 | 220/380 | 1400 | 2.69/1.56 | 73.5 | 0.73 | 2.2 | 2.4 | 6 |
| MS802-4 | 0.75 | 1 | 220/380 | 1400 | 3.48/2.01 | 75.5 | 0.75 | 2.2 | 2.4 | 6 |
| MS90S-4 | 1.1 | 1.5 | 220/380 | 1400 | 4.74/2.75 | 78 | 0.78 | 2.2 | 2.4 | 6 |
| MS90L-4 | 1.5 | 2 | 220/380 | 1400 | 6.31/3.65 | 79 | 0.79 | 2.2 | 2.4 | 6 |
| MS100L1-4 | 2.2 | 3 | 220/380 | 1430 | 8.6/5 | 81 | 0.82 | 2.2 | 2.3 | 7 |
| MS100L2-4 | 3 | 4 | 220/380 | 1430 | 11.7/6.8 | 82.5 | 0.81 | 2.2 | 2.3 | 7 |
| MS112M-4 | 4 | 5.5 | 380/660 | 1430 | 8.8/5.1 | 84.5 | 0.82 | 2.2 | 2.3 | 7 |
| MS132S-4 | 5.5 | 7.5 | 380/660 | 1440 | 12/6.9 | 85.5 | 0.84 | 2.2 | 2.2 | 7 |
| MS132M-4 | 7.5 | 10 | 380/660 | 1440 | 15/8.6 | 87 | 0.85 | 2.2 | 2.2 | 7 |
| MS160M-4 | 11 | 15 | 380/660 | 1460 | 22.3/12.7 | 88 | 0.85 | 2 | 2.2 | 7 |
| MS160L-4 | 15 | 20 | 380/660 | 1460 | 30.17.1 | 89 | 0.85 | 2 | 2.2 | 7 |
| MS180M-4 | 18.5 | 25 | 380/660 | 1470 | 36.4/20.8 | 90.5 | 0.85 | 2.2 | 2.2 | 7.5 |
| MS180L-4 | 22 | 30 | 380/660 | 1470 | 43.1/24.6 | 91 | 0.85 | 2.2 | 2.2 | 7.5 |
| 6 Poles/1000rpm/50HZ |
| MS90S-6 | 0.75 | 1 | 220/380 | 910 | 4.0/4.3 | 72.5 | 0.7 | 2.2 | 2.2 | 5.5 |
| MS90L-6 | 1.1 | 1.5 | 220/380 | 910 | 5.5/3.2 | 73.5 | 0.72 | 2.2 | 2.2 | 5.5 |
| MS100L-6 | 1.5 | 2 | 220/380 | 940 | 6.9/4.0 | 77.5 | 0.74 | 2.2 | 2.2 | 6.5 |
| MS112M-6 | 2.2 | 3 | 220/380 | 940 | 9.7/5.6 | 80.5 | 0.74 | 2.2 | 2.2 | 6.5 |
| MS132S-6 | 3 | 4 | 220/380 | 960 | 12.4/7.2 | 83 | 0.76 | 2 | 2 | 6.5 |
| MS132M1-6 | 4 | 5.5 | 380/660 | 960 | 9.4/5.4 | 84.5 | 0.77 | 2 | 2 | 6.5 |
| MS132M2-6 | 5.5 | 7.5 | 380/660 | 960 | 13/7.5 | 85.3 | 0.78 | 2 | 2 | 6.5 |
| MS160M-6 | 7.5 | 10 | 380/660 | 970 | 16.5/9.43 | 86.2 | 0.8 | 2 | 2 | 6.5 |
| MS160L-6 | 11 | 15 | 380/660 | 970 | 24.1/13.8 | 87.5 | 0.79 | 2 | 2 | 6.5 |
| MS180L-6 | 15 | 20 | 380/660 | 970 | 31.5/18 | 89 | 0.81 | 2 | 2 | 7 |
| 8 Poles/750rpm/50HZ |
| MS132S-8 | 2.2 | 3 | 220/380 | 710 | 10/5.8 | 85.5 | 0.71 | 2 | 2 | 5.5 |
| MS132M-8 | 3 | 4 | 220/380 | 710 | 13.3/7.7 | 82 | 0.72 | 2 | 2 | 5.5 |
| MS160M1-8 | 4 | 5.5 | 380/660 | 720 | 10.2/5.8 | 81 | 0.73 | 2 | 2 | 6 |
| MS160M2-8 | 5.5 | 7.5 | 380/660 | 720 | 13.6/7.8 | 83 | 0.74 | 2 | 2 | 6 |
| MS160L-8 | 7.5 | 10 | 380/660 | 720 | 17.7/10.1 | 85.5 | 0.75 | 2 | 2 | 6 |
| MS180L-8 | 11 | 15 | 380/660 | 730 | 25.1/14.3 | 87.5 | 0.76 | 2 | 2 | 6.5 |
