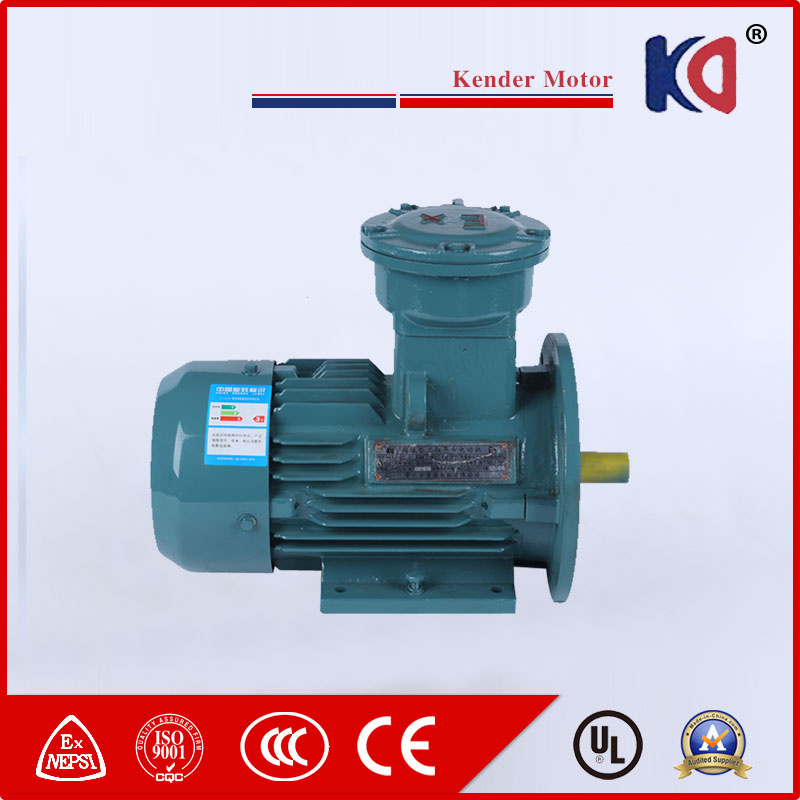

Three Phase Atex Electrical AC Motor with Preferential Price
| Price: |
US $ 55-65/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
YB3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Yb3-71m1-6 |
| Rate Power: |
0.18kw |
| Current: |
0.67A |
| Speed: |
880 R/Min |
| Voltage: |
380V |
| Efficiency: |
56% |
| Power Factor: |
0.66 Cosφ |
| Stall/Rated Torque: |
1.9tst/Tn |
| Stall/Rated Current: |
4.0 Ist/in |
| Noise: |
52db |
| Application: |
Power Tools |
| Operating Speed: |
Adjust Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Explosion-Proof Three-Phase |
| Rotor Structure: |
Winding Type |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Direct on-line Starting |
| Brand: |
Kender |
Product Description
| 1 | Frame NO | YB3-63M --YB3-355L |
| 2 | Rated power | 0.18KW--315KW |
| 3 | Rated voltage | 220V/380V/400V/415V/660V/1140V or on request |
| 4 | Rated Frequency | 50 Hz / 60 Hz; |
| 5 | Poles | 2,4,6,8,10 |
| 7 | Mounting | Foot mount,Face mount,Flange mount,Foot cum face mount,Face cum flange mount. |
| 8 | Duty | Continuous (S1); |
| 9 | Insulation Class | B,F,H |
| 10 | Protection Class | IP55; |
| 11 | Cooling Method | IC411; |
| 12 | EX-mark | Exd I, Exd II AT4, Exd II BT4. |
Advantage of Three Phase ATEX Electrical AC Motor with Preferential PriceEnergy-saving
Stable running
Good quality
Tiny vibration
Good appearance
Reliable operation
Convenient use and maintenanceApplication of Three Phase ATEX Electrical AC Motor with Preferential Price Ideal for the coal mine where and coal dust may be present(Ex d I) and dangerous explosion areas (Ex d IIAt4,d IIBT4) in the plant with the class IIA,IIB and temperature T1-T4 flammable gas.
Technical data of Three Phase ATEX Electrical AC Motor with Preferential Price Model
Type | Rate power | Current | Speed | Efficiency | Power Factor | Stall/Rated
current
| Stall/Rated
torque
| Max/Rated
torque
| Min/Rated
torque
| Noise |
| | KW | In(A) | (r/min) | (%) | (cosφ) | Ist/IN | Tst/TN | | | db(A) |
| YB3-63M1-2 | 0.18 | 0.52 | 2720 | 65.0 | 0.80 | 5.5 | 2.3
| 2.2
| 1.6
| 61
|
| YB3-63M2-2 | 0.25 | 0.69 | 2720 | 68.0 | 0.81 | 5.5 |
| YB3-71M1-2 | 0.37 | 0.99 | 2760 | 69.0 | 0.81 | 6.1 | 64 |
| YB3-71M2-2 | 0.55 | 1.38 | 2760 | 74.0 | 0.82 | 6.1 | 2.3 | |
| YB3-63M1-4 | 0.12 | 0.44 | 1340 | 57.0 | 0.72 | 4.4 | 2.3
| 2.2
| 1.7
| 52
|
| YB3-63M2-4 | 0.18 | 0.59 | 1340 | 60.0 | 0.73 | 4.4 |
| YB3-71M1-4 | 0.25 | 0.78 | 1350 | 65.0 | 0.74 | 5.2 | 55
|
| YB3-71M2-4 | 0.37 | 1.08 | 1350 | 67.0 | 0.75 | 5.2 |
| YB3-71M1-6 | 0.18 | 0.67 | 880 | 56.0 | 0.66 | 4.0 | 1.9
| 2.0
| 1.5
| 52
|
| YB3-71M2-6 | 0.25 | 0.88 | 880 | 59.0 | 0.68 | 4.0 |
| YB3-80M1-6 | 0.37 | 1.27 | 890 | 62.0 | 0.70 | 4.7 | 54 |
| YB3-80M2-6 | 0.55 | 1.54 | 890 | 75.4 | 0.72 | 4.7 | 2.1 | 55 |
| YB3-80M1-8 | 0.18 | 0.86 | 650 | 51.0 | 0.61 | 3.3 | 1.8
| 1.9
| 1.3
| 52
|
| YB3-80M2-8 | 0.25 | 1.13 | 650 | 54.0 | 0.61 | 3.3 |
| YB3-90S-8 | 0.37 | 1.43 | 670 | 62.0 | 0.61 | 4.0 | 56 |
| YB3-90L-8 | 0.55 | 1.79 | 670 | 63.0 | 0.61 | 4.0 | 2.0 | |
| YB3-315S-10 | 45 | 99.4 | 592 | 91.5 | 0.75 | 6.2 | 1.5 | 2.0 | 0.8 | 82 |
The production process of explosion proof motor • Stamping of lamination
• Rotor die-casting
• Winding and inserting - both manual and semi-automatically
• Vacuum varnishing
• Machining shaft, housing, end shields, etc…
• Rotor balancing
• Painting - both wet paint and powder coating
• Motor assembly
• Packing
• Inspecting spare parts every processing
• 100% test after each process and final test before packingFAQ:
Q:What's the mounting size of your motor?
A:Foot mount , face mount, Flange mount ,foot cum face mount,face cum flange mount and design as customer required.
Q: Do you offer OEM service?
A: Yes.and we provide the best quality service to our customers.
Q: What is your payment term?
A: TT, western union ,Paypal. L/C,Cash.
Q: What is your lead time?
A:About 10-45 days after receiving deposit or original L/C.the balance need to accepted before shipment.
Q: What certificate do you have?
A: We have CE, ISO9001,CCC ,EX and so on.
Q:How long the warranty?
A:one year ,but except man-made destroyed.About Kender :Jiangsu Kender Motor Co.,Ltd was located in Changzhou.
The company is an enterprise which specialized in Brake motor,Exe/Exde motor, Electric motor, Induction motor, YVF motor, gear motor and cycloidal reducer.
1,The company covers an area of 5000 square meters;
2,Modern workshops have advanced production lines and professional knowledge of assembly.
3,Excellent sales team and after-sales service
4,Professional technical team
5,Broad market:Europe(Germany....)America(America,Canada...)
Asian( Korea, Japan...)
With keen interests in infrastructure development and engineering industries. K.D. Motors cater to the various segments of the industry with its wide product range from 0.12 KW to 45KW motors best suited for industrial applications.
Wish our sincere cooperation for a better future.
PackingInspecting spare parts every processing
100% test after each process and final test before packing.
Name Card:Jiangsu Kender Motor CO., LTD
Contact Person:Lynn Zhu
Tel:86-519-69655640
Fax:86-519-85160023
Address:No.19 Wenya Road Qianhuang Town Wujin District Changzhou City,Jiangsu Province,China

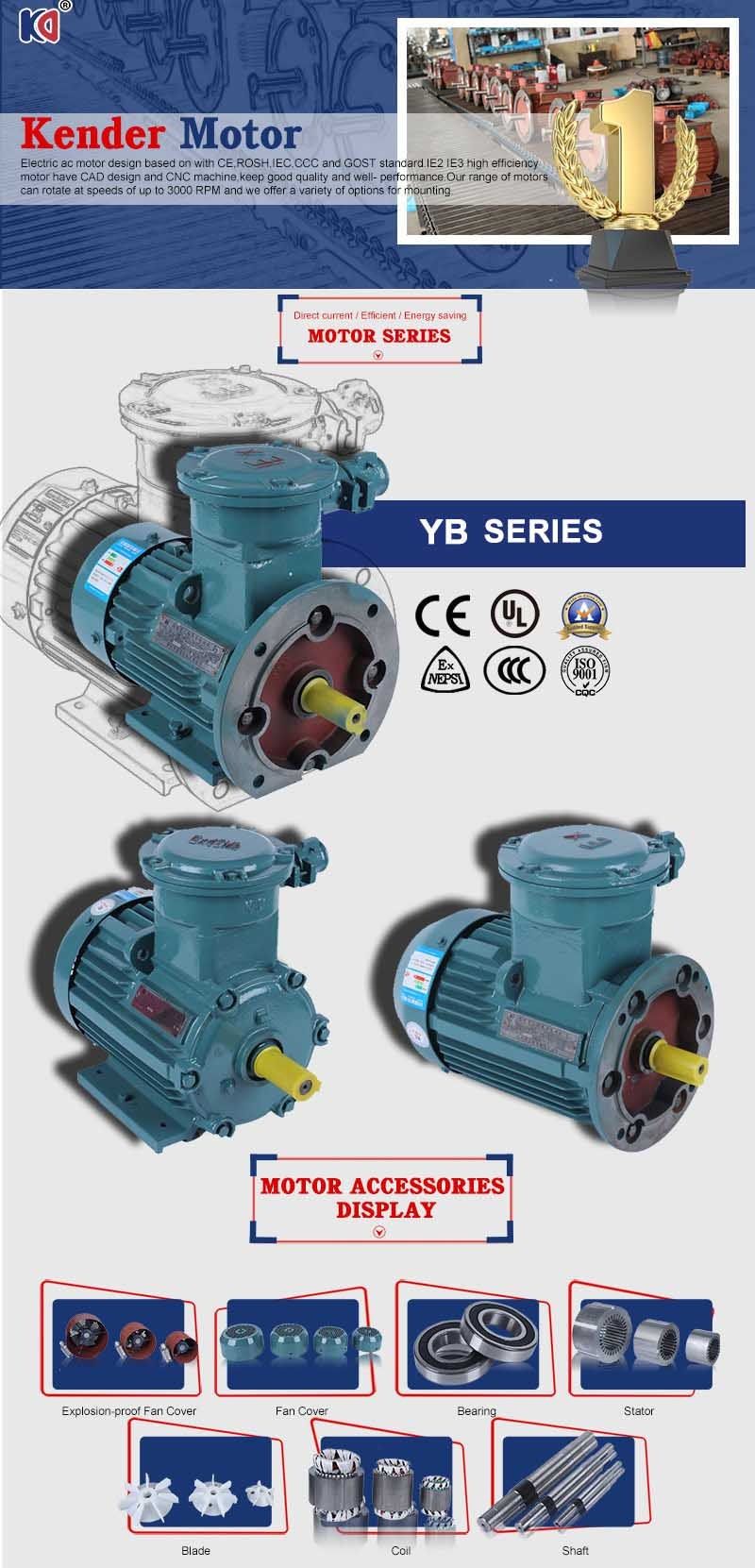

Kender Main Product YB3 series explosion proof motor, YBX3 series energy-efficient explosion proof motor, Y2, YX3, YE3 series normal motor, YEJ series Electromagnetic braking motor, YVF2 series variable-frequency and variable-speed motor, cycloidal pin gear speed reducer Special long axis motor. At the same time for the customer customization of all kinds of different voltage and non-standard motor.
The company has professional testing instruments(The stator test system, Fully automatic intelligent factory test term) and sophisticated technology and equipment(vertical CNC lathe, CNC grinding machine, disposable porous drill and so on). Our products are manufactured and control in strict accordance with the IS09001 quality system. And successively obtained CCC certification, CE certification and explosion-proof motor industrial products production license.
The company has been adhering to the "total quality control, keep improving, perfect quality, customer satisfaction" concept of the camp, Continue to strengthen management innovation, overall raise modern quality management level, Insist on brand strategy, pay attention to product quality, Based on the market at home and abroad with Sophisticated technology and equipment perfect detection means, good after-sales service strict and efficient management system.
