| Prod Model: |

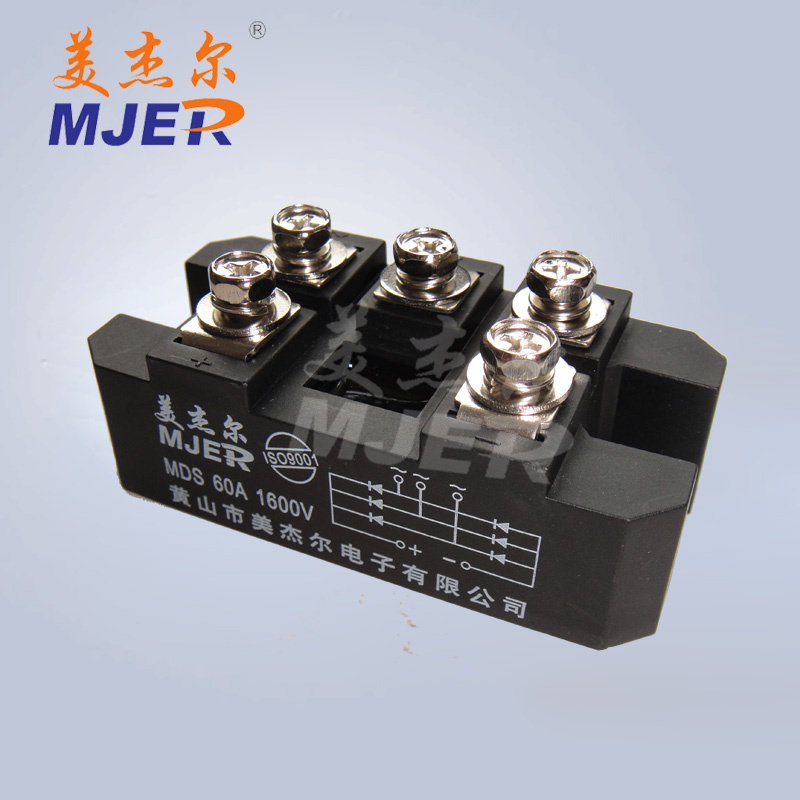

MDS60A1600V Fujifilm |
| Life: |
Over 1 Year |
| Certificates: |
Ce, ISO9001:2008 |
| Payment: |
T/T, L/C, Paypal |
| Lead Time: |
15days |
| MOQ: |
10PCS |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Compound Semiconductor |
| Type: |
Intrinsic Semiconductor |
| Package: |
Standard |
| Application: |
Motor Control, Lighting Control |
| Model: |
Mds |
| Brand: |
Mjer |
Product Description
Product Description:1)ISO9001, RoHS
2)As manufacturer, have high quality low price
3)15 years Professional Technical
4)warranty period: 18months
5)good after-sale service
Specifications:VRSM=VRRM+200V
Unless specified otherwise VFM,
Viso are measured values at. Other
Parameters in the form are measured
Values at Tjm.
MDS30A MDS60A MDS100A MDS75A
MDS150A MDS200A MDS250A MDS300A
MDS00A MDS50A MDS00A MDS00A MDS00A MDS00

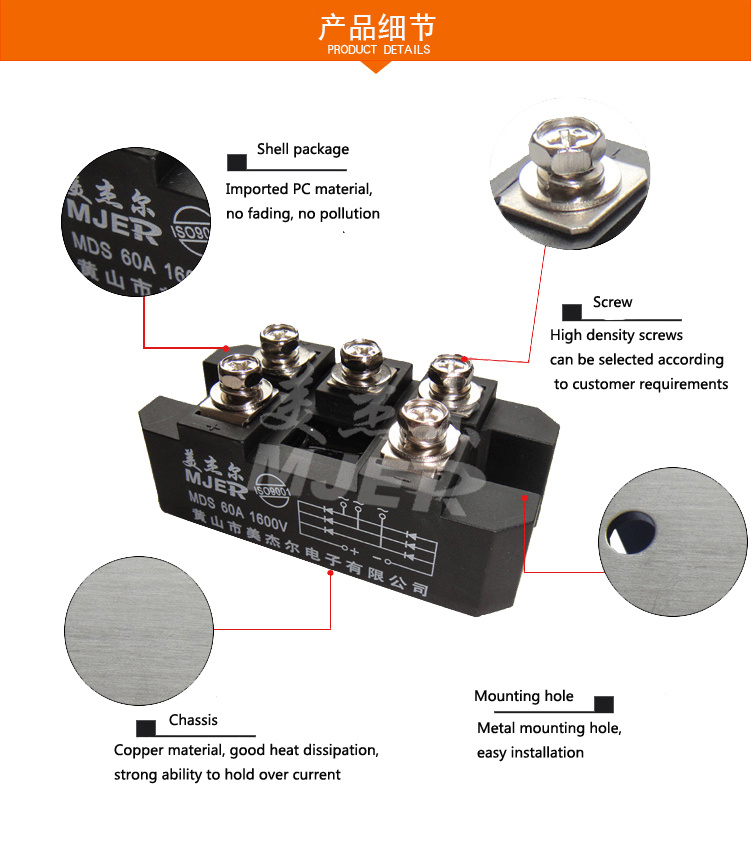

Features:Electrically-isolated chip and baseboard AC 2500V
Sealing package according to international Standard
Welding technique under the protection of Vacuum and hydrogen gas
Convenient installation, use and maintenance Compact and light weight
Max. Work junction temperature up to 150º C
Low forward voltage drop
Typical Applications
DC power supply for instrument equipment
Input of PWM frequency converter
Rectifying power supply
Excitation power supply for DC motor
Input of switch powe supply and auxiliary
Inverter current
DC power supply for current charge

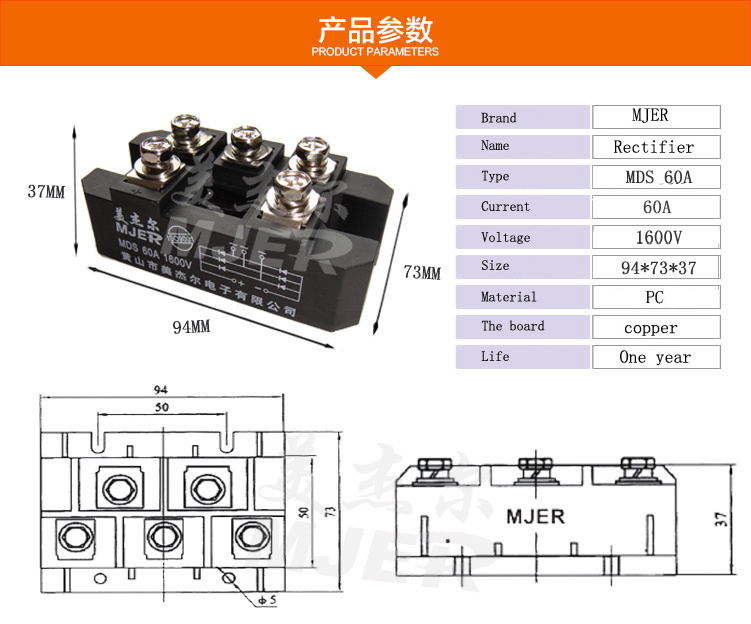

| Type | Id | IF(AV) | Tc | VRRM | IRRM | VTM/ITM | Tjm | Viso | Outline |
| | A | A | º C | V | mA | V/A | | V(AC) |
102A 102A-1 |
| MDS30 | 30 | 10 | 100 | 600~2000 | 8 | 1.45/30 | 150 | 2500 |
| MDS60 | 60 | 20 | 100 | 600~2000 | 8 | 1.45/60 | 150 | 2500 | 102A 102A-1 |
| MDS100 | 100 | 35 | 100 | 600~2000 | 10 | 1.45/100 | 150 | 2500 | 102A 102A-1 |
| MDS150 | 150 | 50 | 100 | 600~2000 | 10 | 1.50/150 | 150 | 2500 | 103A 103A-1 |
| MDS200 | 200 | 68 | 100 | 600~2000 | 10 | 1.50/200 | 150 | 2500 | 103A 103A-1 |
| MDS300 | 300 | 100 | 100 | 600~2000 | 10 | 1.50/300 | 150 | 2500 | 104A |
| MDS400 | 400 | 135 | 100 | 600~2000 | 10 | 1.50/400 | 150 | 2500 | 104A |
| MDS500 | 500 | 168 | 100 | 600~2000 | 10 | 1.50/500 | 150 | 2500 | 105A |
| MDS600 | 600 | 200 | 100 | 600~2000 | 10 | 1.50/600 | 150 | 2500 | 105A |
| MDS800 | 800 | 270 | 100 | 600~2000 | 10 | 1.50/800 | 150 | 2500 | 105A |
| MDS1000 | 1000 | 330 | 100 | 600~2000 | 10 | 1.50/1000 | 150 | 2500 | 105A |
How to Order?
1. Please let us know what kind of model.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay the discussed deposit soon.
5. After getting your deposit payment, all goods will be sent to you in by sea or air within one month.
6. OEM/ODM is welcomed.
Terms of Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we can declare lower value if needed.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Terms of Payment:
1. For bulk order, TT or L/C at sight.
2. 30% deposit and 70% against shipping documents.
3. Sample order we accept payment such as paypal, western union, visa card.
Warranty:
1.We provide 2 year quality warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods .
