Three Phase Bridge Rectifier Modules

Name: Three Phase Bridge Rectifier Modules
Brand: all-electronics-online.com
SKU: 708909022
Availability: InStock
Rating: 4.6 (111 reviews)

Price:	US $ 6-38/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

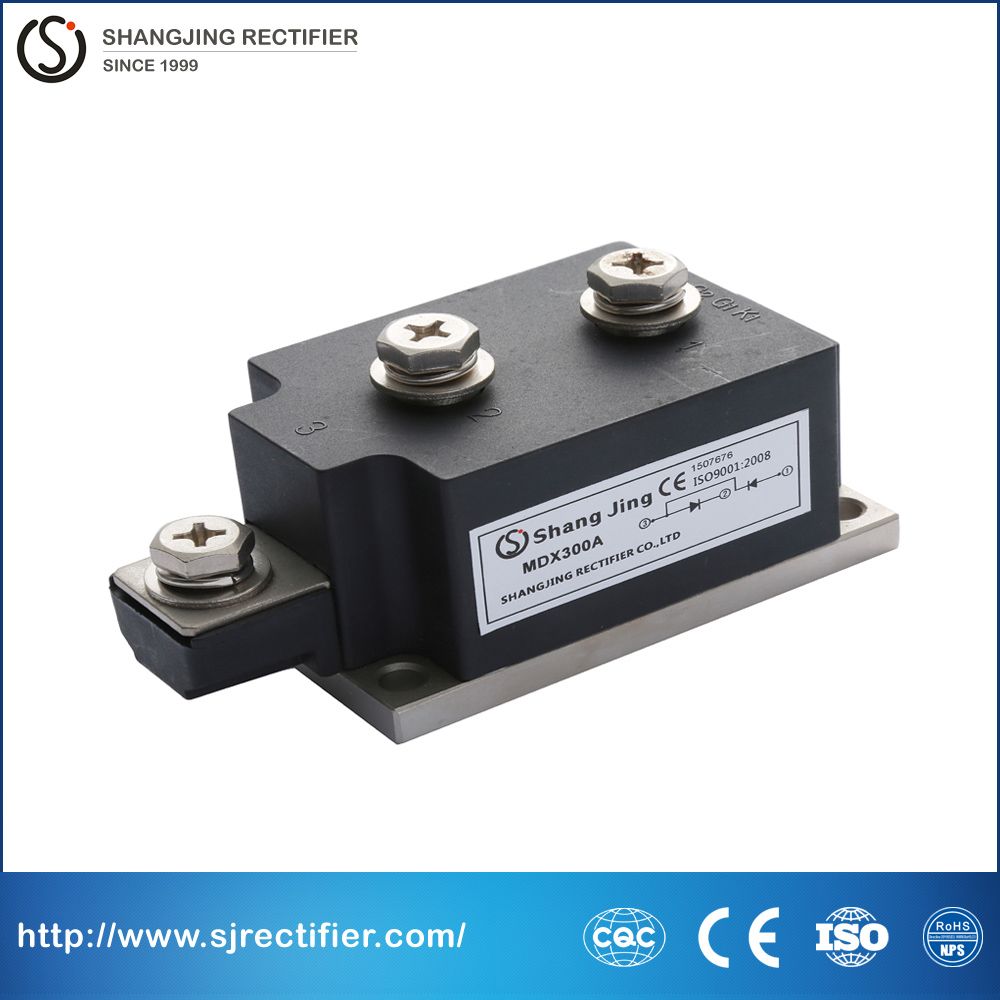

Prod Model:	MDX300
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Vrrm:	600-2000V
Irrm:	9mA
Vfm:	1.38V
If(AV):	300A
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	Standard Export Packing
Application:	Instrument's DC Power Supply
Model:	Mdx300
Batch Number:	2016+
Brand:	Shangjing

Product Description

Features
Electrical insulated for chip and base
International standard packaging
Excellent temperature characteristic
Easy to install and maintain
Low VFM

Typical Applications
Instrument's DC power supply
PWM frequency transformer
Input rectification power supply
DC motor field power supply
Switch power supply input rectification

Type	Id@Tc		VRRM	VFM@IFM		IRRM	IF(AV)	IF(RMS)	ITSM	Rjc	Tjm	Viso	Outline
Type	A	° C	V	V	A	mA	A	A	kA	° C/W	° C	V(AC)	Outline
MDS60	60	100	600-2000	1.45	60	8	20	39	0.75	0.55	150	2500	M16/M17/M18
MDS80	80	100	600-2000	1.37	80	8	25	47	1.00	0.32	150	2500
MDS100	100	100	600-2000	1.43	100	10	33	51	1.50	0.24	150	2500
MDS150	150	100	600-2000	1.40	150	10	50	71	2.50	0.15	150	2500	M19/M20
MDS200	200	100	600-2000	1.37	200	10	75	105	2.50	0.15	150	2500
MDS250	250	100	600-2000	1.37	250	10	100	157	2.75	0.14	150	2500
MDS300	300	100	600-2000	1.38	300	9	125	200	2.90	0.14	150	2500	M21
MDS400	400	100	600-2000	1.35	400	10	150	240	2.95	0.13	150	2500	M21
MDS500	500	100	600-2000	1.39	500	10	200	320	3.15	0.12	150	2500	M22
MDS600	600	100	600-2000	1.39	600	10	250	400	3.50	0.10	150	2500	M22

China Shangjing Rectifier Co., Ltd. Was co-founded by China DELIXI Group, Shanghai Rectifier Co., Ltd. And Jingtai Electric Co., Ltd. In 1999. As one of the most professional manufacturers of power semiconductors and silicon rectifying whole set equipments, as well as the manufacturer for timer switch ( programmable timer switch, digital timer switch mechanical timer switch ) and circuit breaker ( mini circuit breaker, DPN miniatire circuit breaker, DPNL residual current circuit breaker etc) our company has been devoted to provide the high quality electronicsr products for our customers all over the world.

Shangjing Rectifier Co., Ltd. is located in Liushi Town which is well known as the "Capital of Electric City" in China. We are very close to the Wenzhou Airport and the deep-water sea port, which makes it very easy for us to reach our customers from the whole world.

Our company has been certified by China Industrial Department and we have got CE certificate. Furthermore, our products are compliant to the latest RoHS directions.

We have brought advanced technologies and equipment from abroad and kept improving our management and products quality. We stick the spirit of "Chasing for high quality and Servicing our clients with all our heart and credibility", we have gained a lot of honors like "AAA class China quality & credibility company", "member of China Electric Industry Association", etc. We have been exporting our products to Europe, South and North America, Middle East, Africa and earned a lot of good feedback.

We hope our high quality products and service will be bringing successful future to all our customers.
