Three-Phase Bridge Rectifiers (SQL)

Name: Three-Phase Bridge Rectifiers (SQL)
Brand: all-electronics-online.com
SKU: 701018975
Availability: InStock
Rating: 4.6 (32 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SQL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	100-1600
Current:	5-300A
Insulation Voltage:	2500V
Warranty:	2 Years
Manufacturing Technology:	Logic IC
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Model:	Sql
Brand:	Trihero/OEM

Product Description

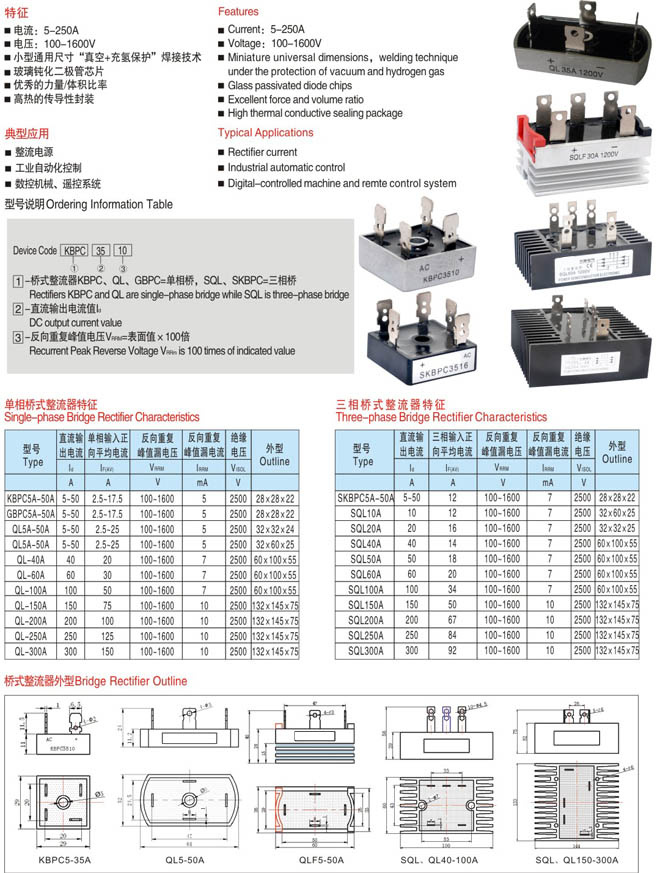

Three-phase Bridge Rectifier

Features:
1.Current: 5-250A
2.Voltage: 100-1600V
3.Miniature universal dimensions, welding technique under the protection of vacuum and hydrogen gas;
4.Glass passivated diode chips;
5.Excellent force and volume ratio;
6.High thermal conductive sealing package.

Typical Applications:
Rectifier power supply;
Industrial automatic control;
Digital-controlled machine and remote control system.

Ordering information table:
Device Code KBPC 35 10
1. Rectifiers KBPC, QL=single-phase bridge, SQL=three-phase bridge
2. DC output current value
3. Reverse repeat peak voltage Urrm = indicated value x 100

Spec. Of three-phase bridge rectifiers:

Type	Id	IF(AV)	Urrm	Irrm	VISOL	Size
Type	A	A	V	A	V	mm
SQL 40A	40	14	100~1600	7	2500	60x100x55
SQL 60A	60	20	100~1600	7	2500	60x100x55
SQL 100A	100	34	100~1600	7	2500	60x100x55
SQL 150A	150	50	100~1600	10	2500	132x145x75
SQL 200A	200	67	100~1600	10	2500	132x145x75
SQL 250A	250	84	100~1600	10	2500	132x145x75
SQL 50-10	50	2.5~25	100~1600	5	2500	32x60x25
