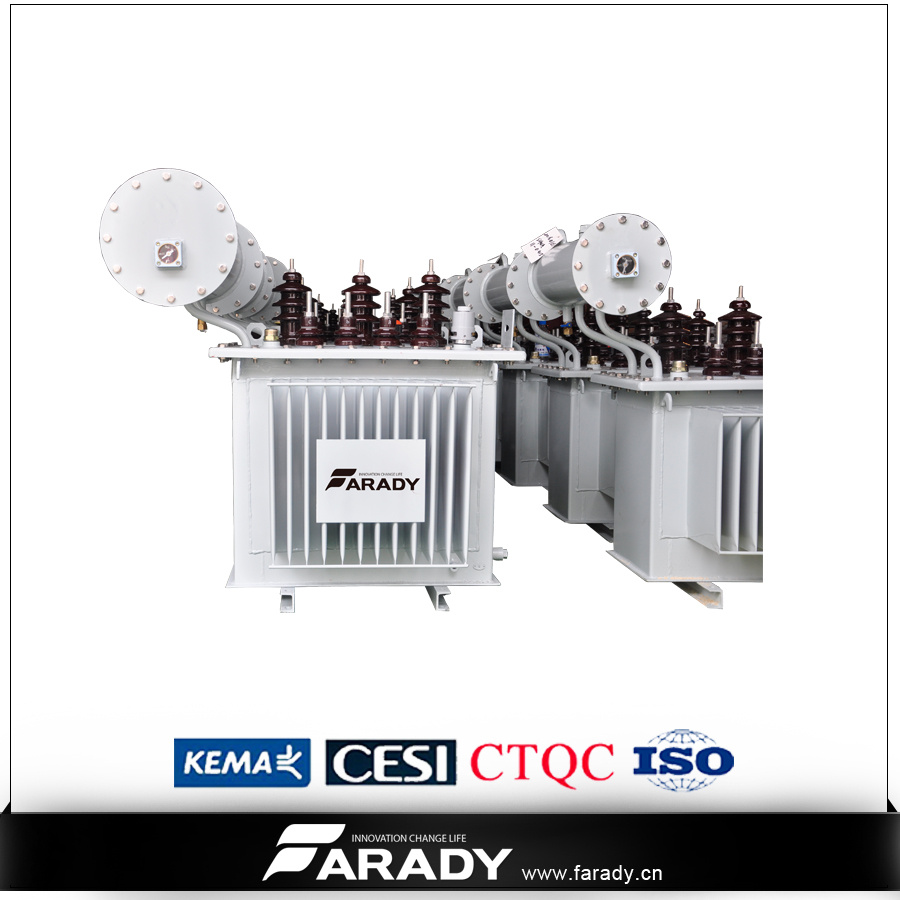

Three Phase Conservator Type Oil Transformer

Prod Model:	S11
Coil Number:	Conservator Type Oil Transformer
Tap Changer:	off Load Tap Changer
Corporation:	Kplc.Rea.Pec
Product Range:	15kVA-10000kVA, up to 44kv
Coil Material:	Copper
Oil Preservation:	Hermetically Sealed or Conservator/Free Breathing
Coil Structure:	Toroidal
System Voltage:	Max. 36 kVA 200 Bil
Coolers:	Corrugated Wall or Radiator
Color:	Grey or Customized
Application:	Power
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Two-winding Transformer
Brand:	Rarady

Product Description

 Product Description
      Farady supplies the widest range of 100kva transformer, including specific designs for power centers, substations, networks and pad mounts. 100kva oil transformer are an integral part of power systems with applications in industrial facilities, commercial buildings and utility transmission and distribution networks.
     The core and coil design of 100kva power transformer is a unique characteristic of Farady's oil type transformers,
which generate the reliability, durability and reduced dimensions required for their application in utilities, industrial installations and public distribution.farady 100kva distribution transformers are manufactured in accordance with the international quality standards ISO 9001 and ISO 14001.

Standard Features
Product Range:15kVA-10000kVA, up to 44kV
System voltage: max. 36 kVA 200 BIL
Coolers: corrugated wall or radiator
Oil preservation: hermetically sealed or conservator/free breathing
Tap changer: off-circuit or on-load
Cooling medium: mineral oil, Midel
Steel type core clamping system
High voltage (HV) multilayer winding
Low voltage (LV) foil winding or layer winding
Winding materials aluminium or copper
High temperature class transformers
Low noise solution
Efficient transformers with reduced losses
Liquid-filled
Used in special conditions
Sophisticated facilities
Usage of wooden case
3D package for drawings
Special test like Zero Sequence Impendence test
Cooling: ONAN, ONAN/ONAF, KFAF, KFW

Service condition
1.  Suitable for indoor or outdoor application
     Air temperature: Maximum temperature: +40ºC; Minimum temperature:-30ºC
     Humidity: Monthly average humidity 95%; Daily average humidity 90% .

2.  Altitude above sea level: Maximum installation altitude: 2000m.
     Max wind speed:35M/s

3.  Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
     No frequent violent shake
Note: * Beyond those services condition should enquiry to manufacturer technical dept during order


Tests
Voltage ratio. Polarity and phase relationship test on each tapping

•Resistance of all windings

•No-load current and no-load losses measurement

•Load losses measurement at rated current and frequency

•Impedance voltage measurement

•Induced over-voltage and separate source voltage withstand tests

•Impulse voltage withstand test.

•Noise level test

•Oil leakage test

•Overload test at 150% rated current for one hour after temperature rise test and hot resistance measurement of (HV - LV)


Technial Form:
11kV Series

KVA	Voltage		VECTOR GROUP	LOSSES		No-load Current	Weight (kg)		Overall dimension mm
	H.V. KV	L.V. V		No-load loss	Load loss		Oil weight	Total weight	L	W	H
20	6 6.3 10 10.5 11 13.2	380 400 415 433	Yyno Dyn11 Yzn11	90	530	2.3	55	230	720	440	855
30				100	600	2.1	75	305	750	500	990
50				130	870	2.0	80	405	800	480	1030
63				150	1040	1.9	95	455	830	615	1060
80				180	1250	1.9	105	510	840	580	1115
100				200	1500	1.8	120	530	890	645	1145
125				240	1800	1.7	130	670	910	600	1185
160				280	2200	1.6	140	810	910	700	1280
200				340	2600	1.5	160	890	1000	760	1240
250				400	3050	1.4	175	1020	1285	730	1290
315				480	3650	1.4	185	1170	1280	740	1385
400				570	4300	1.3	215	1410	1310	750	1432
500				680	5100	1.2	260	1645	1365	765	1510
630				810	6200	1.1	310	2070	1485	815	1615
800				980	7500	1.0	370	1445	1640	930	1590
1000				1150	10300	1.0	425	2800	1860	1120	1630
1250				1360	12000	0.9	480	3320	1860	1120	1830
1600				1640	14500	0.8	550	4175	1975	1175	1900

Our Company
Founded in 2006, with a registered capital of 10 million USD, Farady transformer enjoys about 10 years experience in distribution transformer manufacture.
Farady transformer is located in Liushi of Yueqing, a costal city, which is often referred as the Electric Products Capital in China. Boardered by the State road, highway, and high-speed railway, close to SHANGHAI/NINGBO/WENZHOU sea ports, and the Yongqiang International airport in Wenzhou, we enjoy a great advantage in transportation which thus can guarantee our clients the fast shipping.

Our main products include: step voltage regulator up to 35kV, conventional and complete self-protection transformer, single phase pad mounted transformer, withstand high overload transformer, capacity-adjustable transformer, amorphous transformer, energy-saving transformer, etc green transformer. All the products of ours have passed the national laboratory type test, which also wins the STATE GRID of China as one of our contractors.

The company is equipped with the state-of-the-art technology, sophisticated facilities, ISO9001 quality management system certification and ISO14001 environment certification approval.

We also enjoy the Certification of New Hi-tech Enterprises, National Spark Program, and own more than 70 item transformer patents, with which our products are not only popular in the domestic market but also exported to Southeast Asia, South America, Africa and the middle east.

Today, boasting the value of products specialization, brand management, and business globalization, with the sprits of pragmatism, innovation, efficiency, and responsibility, Farady Company is dedicated to become the biggest name in the international business of transformers in China, and contributes its share to the transformation from the Made in China into the Invented in China.

Farady offers a complete range of distribution transformers designed to grant the reliability, durability, and efficiency required in utility, industrial, and commercial applications. Farady's liquidfilled transformers are manufactured in accordance with the most demanding industry and international standards. Compliance with important standards, from IEC to VDE, is a matter of course, just as much as the exclusive use of high-quality materials. Qualified employees implement the demanding standards in daily practice.
