Three Phase Double Winding 20kv Distribution Transformers
| Price: |
US $ 1-7700000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |
| Prod Model: |
S11-M-20/30~2500KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Rectifier |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Ville |
Product Description
20kv three phase double winding distribution transformer with off load tap changer

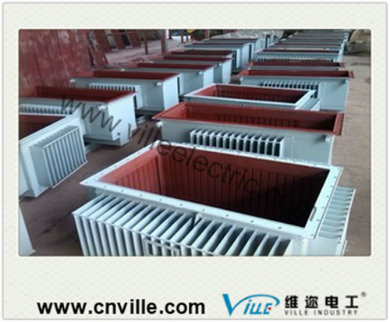

It adopts advanced electromagnetic design software,and meets IEC60076,GB1094,GB/T6451,GB/T25289-2010 standards,without such device like conservator,air breather...,so it ensures that the transformer oil is not in contact with air,improving the anti-oxidation capacity of the transformer oil and delaying its aging. the core is made of high quality cold-rolled grain-oriented silicon steel sheet,with laminated structure miter joint,so as to reduce the no-load losses and no-load current. the tank is a corrugated type,the corrugated fins can swell and shrink with the change of transformer oil,so that the pressure can be maintained inside the tank,increase its reliablility and anti-corrosion capacity.the coil of distribution transformer,wound by high intensity enameled wrapped conductors with good ampere-turn balance and reasonable insulation structure. has a strong short-circuit withstand capacity.the distribution transformer adopts the free-untanking structure. with sealing material parts made of high quality acrylic rubber,it can effectively prevent againest ligh-aging and heat-aging.
Capacity: 30~2500kva
Voltage :20± 5% or ± 2x2.5% LV:0.4KV
Vender group:Yyn0 or Dyn11
Impedance:5.5%, 6%
the loss value also apply to high voltage double voltage 20(10) three phase transformers.

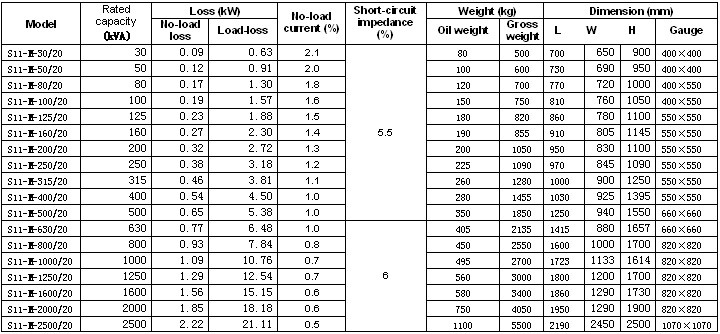

Specifications
It has the features of high efficiency and low loss, can save a lot of operation cost
This type of transformer adopts high-permedibility cool-rolling si-steel piece as iron core.It is processed with big fill factor and there is no spacing inside the mangnetic path. The HV and LV coil is continuously winded around the core with good concentricity and compact winding. The product is of low con-sumption and slight noise pollution by combining new generation of technolgy good performance and energy saving. It is widely used in power distribution system.
IEC 60076 -1-2-3 2000 Power Transformer
GB1094.1-2-1996 Power Transformer
GB1094.3-5-2003 Power Transformer
GB/T6451-1999 Technical parameters and requirements for three-phase oil-immersed power transformer.
| Performance characteristics |
1. The features of this product are high efficiency and low loss.It can save a lot of operation cost,and the social benefits are very significant.

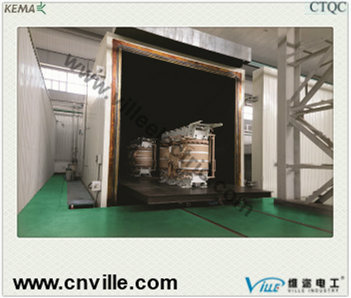

2. The iron cores are made of the imported high-conduction magnetism,cold-roll,and grain-oriented silicon-steel sheets.The iron cores and windings adopt the vacuum drying and vacuum oil-filling processes,which make the internal moisture down to the very low level.
3. The conservator is hermetically sealed,which make the internal running oil to insolate with oxygen and moisture efficiently.
4. The above features guarantee the transformer does not need do replace the oil during the normal operation,greatly decrease the maintenance cost,and prolong the service.
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
