| Prod Model: |
SCB10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
100kVA 480vto220V Electrical Power Transformer |
| Coil Structure: |
Isolation |
| Product Type: |
Transformers 480V to 220V |
| Frequency: |
50/60Hz |
| Tapping: |
±2*5% |
| Coil Material: |
Copper |
| Color: |
Ral7032-Grey or Customized |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Two-winding Transformer |
| Certification: |
Ctqc |
| Brand: |
Farady |
Product Description
Product Description

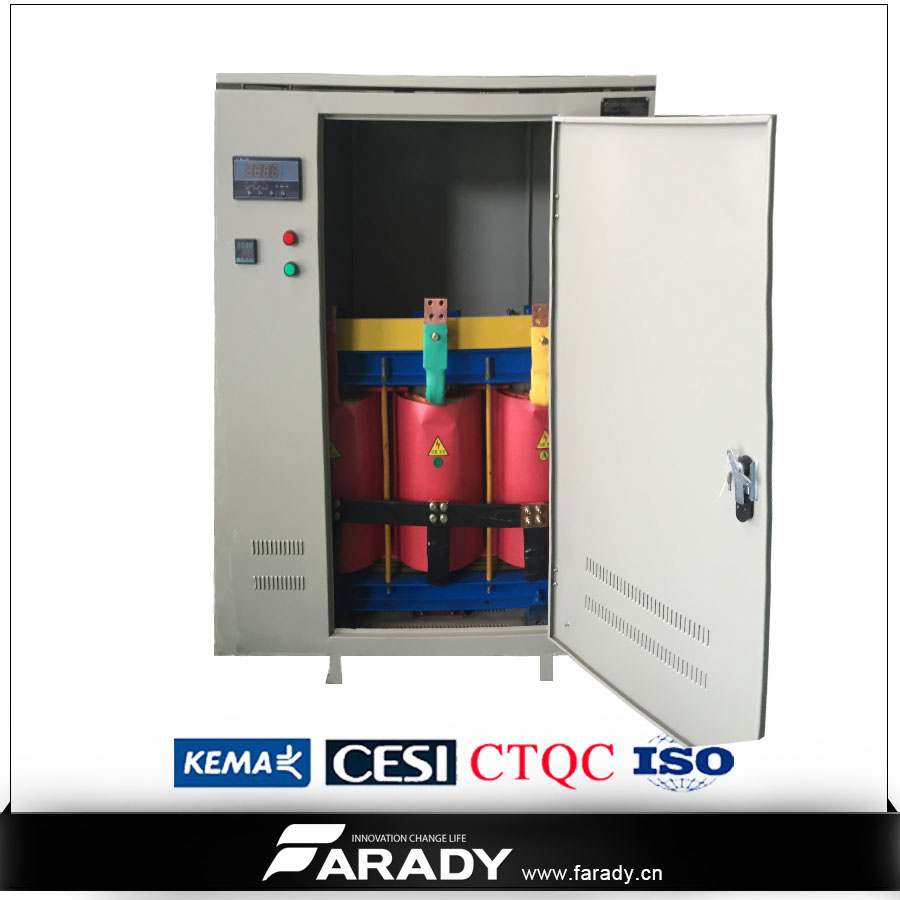

SC(B)10 series three phase resin-cast dry-type distribution transformer are in conformity with standard of IEC76,with features of low loss, compact and light weight, low noise level,clamp-proof,anti-fouling,high mechanical strength, flame resisting, strong overload ability and low partial discharge quality,they are application to power transmission and distribution system,hotel,restaurant,commercial building,stadiums,chemical plants,stations,aiports,offshore drilling platforms,especially to heavy load centers and places with special fire protection requirements
We are professional manufacturer of power transformer,electrical transformer,step voltage regulator,oil immersed and cast resin dry type transformer
ISO9001&14001 approval company
Each series transformer we manufacutured was type tested
Professional technical team ensure our product was always advanced amony your competitor
Type
| Voltage combination | Vector group | Insulation level | Loss(W) | Imp voltage
% | No load current | Noise
(db)A | Dimension
(L*W*H)
mm | Weight
(kg) |
| Primary | Tapping range | Secondary | No Load loss | Full
load loss |
| SC(B)10-30/10 | 6
6.3
6.6
10
10.5
11
13.2
17.5
20
24
33
35
40.5
| ±2x2.5% | 0.4 or other | Yyn0 or Dyn11 | LI75AC35
LIOAC3 | 190 | 700 | 4.0 | 2.2 | 43 | 680*400*686 | 300 |
| SC(B)10-50/10 | 270 | 990 | 2.0 | 43 | 690*400*686 | 360 |
| SC(B)10-80/10 | 360 | 1370 | 1.8 | 43 | 730*450*796 | 500 |
| SC(B)10-100/10 | 400 | 1570 | 1.8 | 44 | 730*500*816 | 600 |
| SC(B)10-125/10 | 470 | 1840 | 1.6 | 44 | 780*600*950 | 700 |
| SC(B)10-160/10 | 540 | 2120 | 1.4 | 44 | 950*650*1124 | 850 |
| SC(B)10-200/10 | 620 | 2520 | 1.4 | 45 | 990*650*1164 | 950 |
| SC(B)10-250/10 | 720 | 2750 | 1.4 | 45 | 1020*650*1207 | 1100 |
| SC(B)10-315/10 | 880 | 3460 | 1.2 | 47 | 1050*750*1320 | 1250 |
| SC(B)10-400/10 | 970 | 3980 | 1.2 | 48 | 1100*800*1450 | 1550 |
| SC(B)10-500/10 | 1160 | 4880 | 1.2 | 48 | 1140*800*1430 | 1850 |
| SC(B)10-630/10 | 1340 | 5870 | 1.0 | 50 | 1250*800*1500 | 1900 |
| SC(B)10-800/10 | 1520 | 6950 | 6.0 | 1.0 | 52 | 1330*800*1540 | 2200 |
| SC(B)10-1000/10 | 1760 | 8120 | 0.8 | 54 | 1400*960*1640 | 2750 |
| SC(B)10-1250/10 | 2090 | 9690 | 0.8 | 54 | 1450*960*1690 | 3300 |
| SC(B)10-1600/10 | 2450 | 11730 | 0.8 | 56 | 1560*960*1930 | 4000 |
| SC(B)10-2000/10 | 3320 | 14450 | 0.6 | 57 | 1680*960*1930 | 4800 |
| SC(B)10-2500/10 | 4000 | 17170 | 0.6 | 57 | 1720*1010*1950 | 5500 |
Packaging shipping
Long time shipment & Seaworthy wooden box
Wooden package optional:1,choose one unit/ wooden box2,choose 2unit/ wooden box to save costCompany informationWe are professional manufacturer of power transformer,electrical transformer,step voltage regulator,oil immersed and cast resin dry type transformer
ISO9001&14001 approval company
Each series transformer we manufacutured was type tested\
Professional technical team ensure our product was always advanced amony your competitor
Founded in 1996, with a registered capital of 10 million USD, Zhejiang Farady Electric enjoys about 20 years' experience in MV transmission and distribution electrical equipment manufacture.
We are National Hi-tech enterprise, National Spark plan Program, State Hi-tech enterprise, State Innovation R&D center, Patent demonstrate company.
Farady is located in Liushi of Yueqing, Zhejiang, China, main products include: Transformer/RMU/switchgear/AVR/ACR and MV indoor and outdoor switch. All the products of ours have passed the national and international laboratory type test, Farady Electric was qualified supplier of China State Grid and China southern Grid
With ISO9001/14001/18001, we are strike for create value for our partner and customer
There is more than 20 distributors and agents worldwide already trust us and distribute Farady product there, we are not only export product, but also provide whole technology solution to help partner to establish local factory in our business line.
Today, boasting the value of products specialization, brand management, and business globalization, with the sprits of pragmatism, innovation, efficiency, and responsibility, Farady Company is dedicated to become the top name in the international business from China, and contributes its share to the transformation from the Made in China into the Invented in China.
