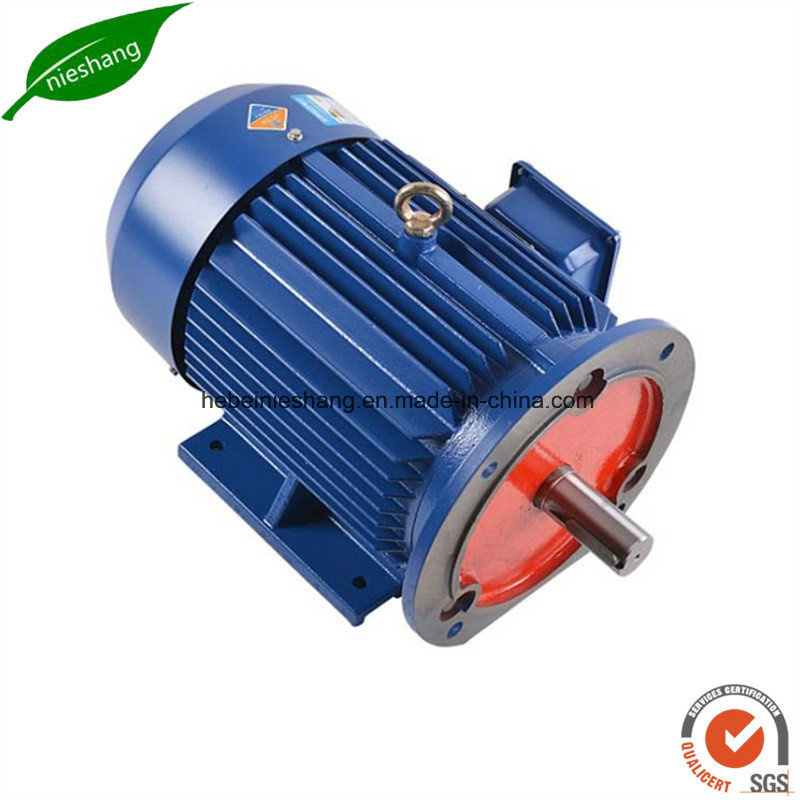

Three Phase Electric Induction Electric Motor

Name: Three Phase Electric Induction Electric Motor
Brand: all-electronics-online.com
SKU: 684133811
Availability: InStock
Rating: 4.5 (94 reviews)

Price:	US $ 40-800/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	motor
Name:	Three Phase Electric Induction Electric Motor
Use:	Industrial, Universal, Household Appliances, Power
Efficiency Class:	Ie1
Frame Size:	H80-355
Poles:	2,4,6,8 Poles
Rated Power:	0.09-315kw
Rated Voltage:	220/380V, 380/660V
Frequency:	50Hz, 60Hz
Protection Class:	IP44, IP54, IP55, IP5
Insulation Class:	B, F, H
Number Of Stator:	Three-Phase
Function:	Driving
Brand:	Ns

Product Description

Yx3 Three Phase Electric Induction Motor

ratedvoltage:380v

altitude:not exceeding1000 meters

YX3
				bjn			/	/	/
		kW	r/min	A	%	Cosφ	LRT/RLT	LRA/RLA	BDT/RLT	LwdB(A)	V
1	YX3-80M1-2	0.75	2860	1.77	77.5	0.83	2.3	6.8	2.3	62	380
2	YX3-80M2-2	1.1	2880	2.43	82.8	0.83	2.3	7.3	2.3	62	380
3	YX3-90S-2	1.5	2890	3.23	84.1	0.84	2.3	7.6	2.3	67	380
4	YX3-90L-2	2.2	2890	4.59	85.6	0.85	2.3	7.8	2.3	67	380
5	YX3-100L-2	3	2890	6.04	86.7	0.87	2.3	8.1	2.3	74	380
6	YX3-112M-2	4	2910	7.88	87.6	0.88	2.3	8.3	2.3	77	380
7	YX3-132S1-2	5.5	2910	10.7	88.6	0.88	2.2	8	2.3	79	380
8	YX3-132S2-2	7.5	2910	14.3	89.5	0.89	2.2	7.8	2.3	79	380
9	YX3-160M1-2	11	2940	20.8	90.5	0.89	2.2	7.9	2.3	81	380
10	YX3-160M2-2	15	2940	28	91.3	0.89	2.2	8	2.3	81	380
11	YX3-160L-2	18.5	2940	34.4	91.8	0.89	2.2	8.1	2.3	81	380
12	YX3-180M-2	22	2950	40.7	92.2	0.89	2.2	8.2	2.3	83	380
13	YX3-200L1-2	30	2960	55.1	92.9	0.89	2.2	7.5	2.3	84	380
14	YX3-200L2-2	37	2960	67.7	93.3	0.89	2.2	7.5	2.3	84	380
15	YX3-225M-2	45	2960	82	93.7	0.89	2.2	7.6	2.3	86	380
16	YX3-250M-2	55	2970	100	94	0.89	2.2	7.6	2.3	89	380
17	YX3-280S-2	75	2970	135	94.6	0.89	2	6.9	2.3	91	380
18	YX3-280M-2	90	2970	162	95	0.89	2	7	2.3	91	380
19	YX3-315S-2	110	2970	195	95	0.9	2	7.1	2.2	92	380
20	YX3-315M-2	132	2970	234	95.4	0.9	2	7.1	2.2	92	380
21	YX3-315L1-2	160	2970	280.1	95.4	0.91	2	7.1	2.2	92	380
22	YX3-315L2-2	200	2970	350	95.4	0.91	2	7.1	2.2	92	380
23	YX3-355M-2	250	2980	436	95.8	0.91	2	7.1	2.2	100	380
24	YX3-355L-2	315	2980	549	95.8	0.91	2	7.1	2.2	100	380
25	YX3-80M1-4	0.55	1430	1.38	80.7	0.75	2.3	6.3	2.3	56	380
26	YX3-80M2-4	0.75	1430	1.85	82.3	0.75	2.3	6.5	2.3	56	380
27	YX3-90S-4	1.1	1430	2.66	83.8	0.75	2.3	6.6	2.3	59	380
28	YX3-90L-4	1.5	1430	3.58	85	0.75	2.3	6.9	2.3	59	380
29	YX3-100L1-4	2.2	1450	4.78	86.4	0.81	2.3	7.5	2.3	64	380
30	YX3-100L2-4	3	1450	6.36	87.4	0.82	2.3	7.6	2.3	64	380
31	YX3-112M-4	4	1450	8.39	88.3	0.82	2.3	7.7	2.3	65	380
32	YX3-132S-4	5.5	1450	11.4	89.2	0.82	2	7.5	2.3	71	380
33	YX3-132M-4	7.5	1450	15.2	90.1	0.83	2	7.4	2.3	71	380
34	YX3-160M-4	11	1470	21.6	91	0.85	2.2	7.5	2.3	73	380
35	YX3-160L-4	15	1470	28.9	91.8	0.86	2.2	7.5	2.3	73	380
36	YX3-180M-4	18.5	1470	35.4	92.2	0.86	2.2	7.7	2.3	76	380
37	YX3-180L-4	22	1470	42	92.6	0.86	2.2	7.8	2.3	76	380
38	YX3-200L-4	30	1470	56.9	93.2	0.86	2.2	7.2	2.3	76	380
39	YX3-225S-4	37	1480	69.8	93.6	0.86	2.2	7.3	2.3	78	380
40	YX3-225M-4	45	1480	84.7	93.9	0.86	2.2	7.4	2.3	78	380
41	YX3-250M-4	55	1480	103	94.2	0.86	2.2	7.4	2.3	79	380
42	YX3-280S-4	75	1480	137	94.7	0.88	2.2	6.7	2.3	80	380
43	YX3-280M-4	90	1480	164	95	0.88	2.2	6.9	2.3	80	380
44	YX3-315S-4	110	1480	199	95.4	0.88	2.2	6.9	2.2	88	380
45	YX3-315M-4	132	1480	239	95.4	0.88	2.2	6.9	2.2	88	380
46	YX3-315L1-4	160	1480	286	95.4	0.89	2.2	6.9	2.2	88	380
47	YX3-315L2-4	200	1480	358	95.4	0.89	2.2	6.9	2.2	88	380
48	YX3-355M-4	250	1490	441	95.8	0.9	2.2	6.9	2.2	95	380
49	YX3-355L-4	315	1490	555	95.8	0.9	2.2	6.9	2.2	95	380
50	YX3-90S-6	0.75	940	2.04	77.7	0.72	2.1	5.8	2.1	57	380
51	YX3-90L-6	1.1	940	2.87	79.9	0.73	2.1	5.9	2.1	57	380
52	YX3-100L-6	1.5	940	3.78	81.5	0.74	2.1	6	2.1	61	380
53	YX3-112M-6	2.2	950	5.42	83.4	0.74	2.1	6	2.1	65	380
54	YX3-132S-6	3	960	7.26	84.9	0.74	2	6.2	2.1	69	380
55	YX3-132M1-6	4	970	9.54	86.1	0.74	2	6.8	2.1	69	380
56	YX3-132M2-6	5.5	970	12.7	87.4	0.75	2	7.1	2.1	69	380
57	YX3-160M-6	7.5	970	16.4	89	0.78	2.1	6.7	2.1	73	380
58	YX3-160L-6	11	970	23.5	90	0.79	2.1	6.9	2.1	73	380
59	YX3-180L-6	15	980	30.9	91	0.81	2	7.2	2.1	73	380
60	YX3-200L1-6	18.5	980	37.9	91.5	0.81	2.1	7.2	2.1	73	380
61	YX3-200L2-6	22	980	44.3	92	0.82	2.1	7.3	2.1	73	380
62	YX3-225M-6	30	980	60.1	92.5	0.82	2	7.1	2.1	74	380
63	YX3-250M-6	37	980	72	93	0.84	2.1	7.1	2.1	76	380
64	YX3-280S-6	45	980	85	93.5	0.86	2.1	7.2	2	78	380
65	YX3-280M-6	55	980	104	93.8	0.86	2.1	7.2	2	78	380
66	YX3-315S-6	75	990	142	94.2	0.85	2	6.7	2	83	380
67	YX3-315M-6	90	990	172	94.5	0.84	2	6.7	2	83	380
68	YX3-315L1-6	110	990	207	95	0.85	2	6.7	2	83	380
69	YX3-315L2-6	132	990	245	95	0.8 6	2	6.7	2	83	380
70	YX3-355M1-6	160	990	294	95	0.87	2	6.7	2	85	380
71	YX3-355M2-6	200	990	368	95	0.87	2	6.7	2	85	380
72	YX3-355L-6	250	990	460	95	0.87	2	6.7	2	85	380
