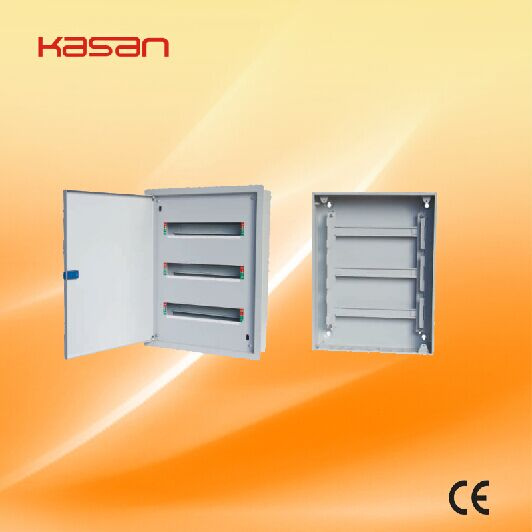

Three Phase Electrical Distribution Board

Name: Three Phase Electrical Distribution Board
Brand: all-electronics-online.com
SKU: 662078782
Availability: InStock
Rating: 4.9 (70 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KSPR-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Incoming:	MCB, ELCB, Isolator
Color Code:	Ral7032 Ral7035
Type:	Distribution Metering Box
Structure:	Protection

Product Description

waterproof distribution box,Outdoor waterproof distribution box,wall mounted galvanised distribution box,IP66 waterproof metal distribution box,power distribution box,Electrical enclosure distribution box,Power distribution box,Waterproof metal enclosure distribution box,Waterproof Electrical Enclosure Distribution Box,Industrial steel distribution box

steel distribution box / tableros electricos/ tablero eléctricos specifications:

1 Body and door manufactured in 1.2/1.5mm sheet steel

2 Mounting plate with folded edge in 2.0mmsheet steel

Surface finish:

Enclosure and door:Dipcoat-primed,powder-coated in textured Ral7032 or Ral7035 outside

Door opening Reversible 120 °

Protection:

Protection degree:IP66

Impact resistaance:IK10

Supply includes:

Body, door, galvanized mounting plate or orange mounting plate; Metal lock or plastic lock, key, screw, sealing gasket, gland plate.

Our Advantages:

1. 20 year's OEM & ODM experience

2. Spain Design

3. the color can remain for over 5 years

4. professional team

Dimensions(mm):

Reference	Height	Width	Depth	Thickness(mm)
	mm			Door	Body	MP
BJS1-2020/150	200	200	150	1.2	1.2	2.0
BJS1-3025/150	300	250	150
BJS1-3025/200	300	250	200
BJS1-33/150	300	300	150
BJS1-33/200	300	300	200
BJS1-34/200	300	400	200
BJS1-43/150	400	300	150
BJS1-43/200	400	300	200
BJS1-44/200	400	400	200
BJS1-46/250	400	600	250
BJS1-46/300	400	600	300
BJS1-54/150	500	400	150
BJS1-54/200	500	400	200
BJS1-54/250	500	400	250
BJS1-55/250	500	500	250
BJS1-64/150	600	400	150
BJS1-64/200	600	400	200
BJS1-64/250	600	400	250
BJS1-65/150	600	500	150
BJS1-65/200	600	500	200
BJS1-65/250	600	500	250
BJS1-66/250	600	600	250
BJS1-66/300	600	600	300
BJS1-68/300	600	800	300
BJS1-75/200	700	500	200	1.5	1.2	2.0
BJS1-75/250	700	500	250
BJS1-86/200	800	600	200
BJS1-86/250	800	600	250
BJS1-86/300	800	600	300
BJS1-86/400	800	600	400
BJS1-88/200	800	800	200
BJS1-88/300	800	800	300
BJS1-810/300	800	1000	300
BJS1-106/250	1000	600	250	1.5	1.5	2.0
BJS1-106/300	1000	600	300
BJS1-108/250	1000	800	250
BJS1-108/300	1000	800	300
BJS1-108/400	1000	800	400
BJS1-1010/300	1000	1000	300
BJS1-1012/300	1000	1200	300
BJS1-128/300	1200	800	300
BJS1-128/400	1200	800	400
BJS1-1210/300	1200	1000	300

other sizes and thickness avaliable on request .Cut-outs and drilled holes to your specifications.

we can provide customization according to your drawings or design scheme.
