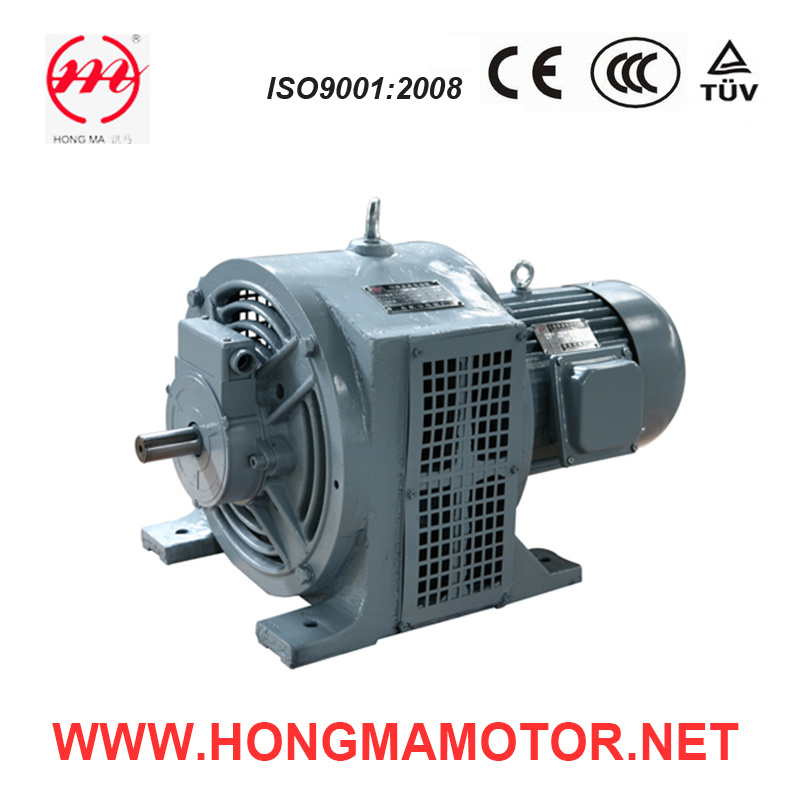

Three Phase Electro-Magnetic Asynchronous Induction Motor (112-4B-0.75KW)

Name: Three Phase Electro-Magnetic Asynchronous Induction Motor (112-4B-0.75KW)
Brand: all-electronics-online.com
SKU: 709673142
Availability: InStock
Rating: 4.8 (30 reviews)

Price:	US $ 169.8/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YCT112-4B-0.75KW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frame Size:	H112
Rated Power:	0.75kw
Rated Voltage:	220/380V;380/660V
Frequency:	50Hz, 60Hz
Protection Class:	IP23
Insulation Class:	B
Speed Range:	1:10
Speed Variation:	≤1%
Voltage Of Controller:	220V
Maximum Excitation Voltage:	≤90V
Application:	Industrial
Operating Speed:	Adjust Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	y-δ Starting
Certification:	Ce

Product Description

Product Description

YCT series is a latest product designed conformably in whole country adopts ways of changing the excitation current size to adjust output speed. YCT series are of high efficiency, low noise, small vibration, wide range of speed-regulation, no out-of-control zone, and negative feedback of speed. Its mounting dimension and power totally conform to IEC standard and JB/T7123-93 standard.
YCT series is made up of three phase asynchronous motor, electromagnetic speed differential clutch and techno-generator. It is usually associated with JD or ZTK controller to compose a set of ac unlimited adjustment devices. YCT series can be widely used in textile, printing and dyeing, cement, paper, printing, rubber, plastics, sugar, stirring, blast, fiber, cable and other industrial sectors.

Technical Data

Frame No.	Normal	Rated	Speed Range	Excitation	Excitation	Noise
Frame No.	Power	N.m	rpm	V	A	dB(A)
	Power	N.m	rpm	V	A	dB(A)
112-4A	0.55	3.6			0.98	75
112-4B	0.75	4.9	1230-125		1.01	75
132-4A	1.1	7.1	1230-125		1.3	75
132-4A	1.1	7.1			1.3	75
132-4B	1.5	9.7			1.5	78
160-4A	2.2	14.1			1.2	78
160-4B	3	19.2			1.51	82
180-4A	4	25.2			1.19	82
200-4A	5.5	36.1	1250-125		1.5	82
200-4B	7.5	47.7			1.63	86
225-4A	11	69		<=90	1.8	86
225-4B	15	94			1.91	90
250-4A	18.5	110			2.6	90
250-4B	22	137			2.88	90
280-4A	30	189	1320-132		2.46	97
315-4A	37	232			3.2	97
315-4B	45	282			3.89	99
355-4A	55	344	1340-440			99
355-4B	75	469	1340-440		_	103
355-4B	75	469			_	103
355-4C	90	564	1340-600			103

Package

Frame NO. 80--132 :Package by carton box and then packed by wooden box

Frame NO.160 and above:one wooden box per set
