Three Phase Electro-Magnetic Brake Asynchronous AC Motor

Name: Three Phase Electro-Magnetic Brake Asynchronous AC Motor
Brand: all-electronics-online.com
SKU: 780589375
Availability: InStock
Rating: 4.9 (116 reviews)

Price:	US $ 68.1-369/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HMEJ(AC)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frame Size Range:	H71-132
Rated Power Range:	0.12kw~7.5kw
Rated Voltage Range:	220/380V, 380/660V, 230/400V, 400V/690V
Frequency:	50Hz, 60Hz
Protection Class:	IP44, IP54, IP55
Insulation Class:	B\F\H
Mounting Type:	B3, B5, B14, B35multi and Pad Mounting
Ambient Temperature:	-20~+40 °c
Altitude:	≤1000m
Cooling Method:	IC411
Application:	Universal
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	y-δ Starting
Number Of Poles:	2, 4, 6, 8
Certification:	CE
Brand:	Hongma

Product Description

Product Description
HMEJ(YEJ) series three phase electro-magnetic AC brake induction motors are best used for automated systems where frequent braking is required, usually in lifting and handling industries, packaging and packing machines. They are very quiet in operation with compact dimensions.
HMEJ(YEJ) brake motors can be fed directly from the motor terminal box or from a separate line. Braking torque is adjustable (simply turning the adjusting screws of the brake). Special voltages for both the motor and brakes are available on request.

Technical Data

Frame Size Range	H71-132
Pole	2,4,6,8
Rated Power Range	0.12kw~7.5kw
Rated Voltage Range	220/380V,380/660V,230/400V,400V/690V
Frequency	50HZ,60HZ
Protection Class	IP44,IP54,IP55
Insulation Class	B\F\H
Mounting Type	B3,B5,B14,B35multi and pad mounting
Cooling Method	IC411
Terminal Box	Top Mounted

Connection:

Power under 3KW selects Star connection;Power up 3KW selects Delta

connection

Package

The range of frame size from 80 to 132 :Package by carton box and then

packed by wooden box

The range of frame size 160 and above:one wooden box per set

Our Cerfiticate

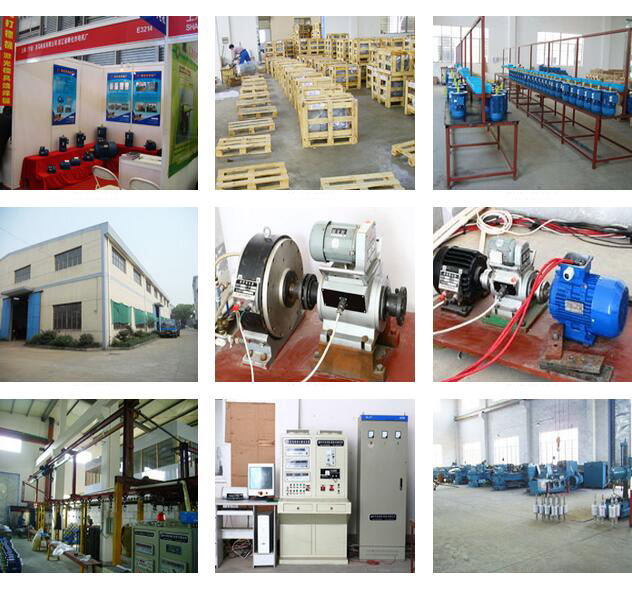

Our Factory
