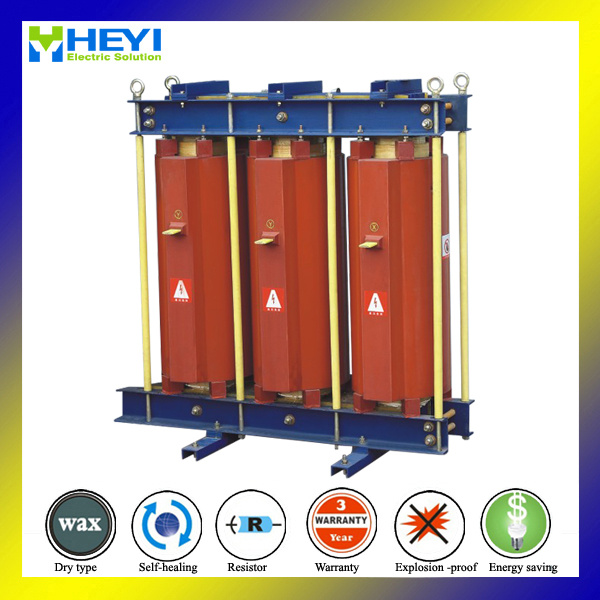

Three Phase Forming Solid 100kvar 10kv Dry Iron Core Reactor

Prod Model:	CKSC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Client Design
Color:	Grey
Package:	According to Client Requirement
Iron Core Reactor Feature:	Electrical Harmonic Filter Reactor
Hand Sample Time:	Within 3-5 Days
Port:	Ningbo/Shanghai
Ultrasonic Reactor Function:	Ultrasonic Reactor Protect Power Capacitor
Iron Core Reactor Type:	Dry Type
OEM:	Accept Iron Core Reactor
Material:	Cold Roller Silicon Steel Sheet
Application:	Rectifier
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Separated Winding Transformer
Brand:	OEM

Product Description

CKSC Dry type iron core series reactor three phase forming solid 100kvar
1.Filter reactor low loss cold roller silicon steel sheet
2.anti corrosion exposed parts
3.low temperature rise, low loss

CKSC Dry type iron core series reactor three phase forming solid 100kvar specification

type	rated current	rated circuit reactance rate	rated capacitor	W	D	H	E	F
CKSC-6/10-6%	5.77A	6%	100KVAR	715	400	770	400	320
CKSC-9/10-6%	8.66A	6%	150KVAR	715	400	770	400	320
CKSC-12/10-6%	11.55A	6%	200KVAR	720	400	780	400	320
CKSC-15/10-6%	14.43A	6%	250KVAR	720	400	780	400	320
CKSC-18/10-6%	17.32A	6%	300KVAR	760	400	830	400	320
CKSC-24/10-6%	23.09A	6%	400KVAR	780	400	850	450	350
CKSC-27/10-6%	25.98A	6%	450KVAR	820	450	875	450	350
CKSC-30/10-6%	28.87A	6%	500KVAR	820	450	885	450	350
CKSC-36/10-6%	34.64A	6%	600KVAR	820	450	890	450	350
CKSC-42/10-6%	43.30A	6%	750KVAR	850	450	920	450	350
CKSC-48/10-6%	46.19A	6%	800KVAR	865	450	960	450	350
CKSC-54/10-6%	51.96A	6%	900KVAR	895	450	960	450	350
CKSC-60/10-6%	57.74A	6%	1000KVAR	895	450	980	500	350
CKSC-72/10-6%	69.28A	6%	1200KVAR	940	450	1020	500	350
CKSC-84/10-6%	80.83A	6%	1400KVAR	940	450	1025	500	350
CKSC-90/10-6%	86.61A	6%	1500KVAR	960	450	1030	500	350
CKSC-108/10-6%	103.93A	6%	1800KVAR	1020	500	1050	500	350
CKSC-126/10-6%	121.25A	6%	2100KVAR	1050	500	1060	500	380
CKSC-144/10-6%	138.57A	6%	2400KVAR	1050	450	1150	500	380
CKSC-180/10-6%	173.21A	6%	3000KVAR	1100	500	1130	500	350
CKSC-216/10-6%	207.85A	6%	3600KVAR	1150	450	1160	500	380
CKSC-288/10-6%	277.14A	6%	4800KVAR	1350	500	1330	500	380

CKSC Dry type iron core series reactor three phase forming solid 100kvar advantage
1.global leading profession manufacture of filter reactor
2.100% pure copper for inside core , iron steel instruction with anti rust
3.Monthly production : 100000pcs
4.Fast delivery : you will get the order when you need it
5.2000 square meter workroom for 100worker
6.OEM is warmly welcome
7.Convenient : 45 minutes to wenzhou airport

CKSC Dry type iron core series reactor three phase forming solid 100kvar function
1 Improve voltage distribute on each line
2. Balance reactive power when overload circuit ,reduce power loss on the line
3.When the reactor neutral grounding via small reactor device,Also available small reactor compensation line and phase to ground capacitance,to accelerate the arc current automatically extinguished, easy to use

CKSC Dry type iron core series reactor three phase forming solid 100kvar Payment terms
1. 30% T/T advance , the balance against to the copy B/L
2. The other specific issues can negociate.
3. Pls confirm the details with us before do the prepayment.

CKSC Dry type iron core series reactor three phase forming solid 100kvar Packing information
1. Each with wooden pacakge
2.1pcs/ctn , flap into wooden  carton
3. G/N.W: 30/28kg
4. We can packing as your required

Why choose CKSC Dry type iron core series reactor three phase forming solid 100kvar
1).ISO9001,SGS,Gold golden supplier
2) Monthly Production Capacity -- 100000 Pcs
3)All goods examined before delivery by 10 QC staff
4)Prompt Reply Within 12 Hours
5)2000 square meters work environment
