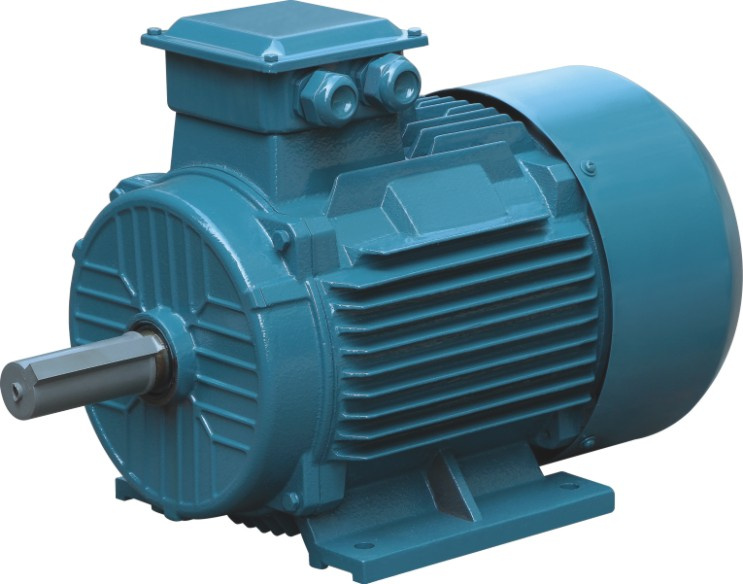

Three-Phase Induction Electrical Motor for Water Pump Ie1

Name: Three-Phase Induction Electrical Motor for Water Pump Ie1
Brand: all-electronics-online.com
SKU: 812465075
Availability: InStock
Rating: 4.4 (134 reviews)

Price:	US $ 119-121/Piece
Min Order:	15/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Y Y2 YX3
Voltage:	Special Voltages Available
Number Of Stator:	Three-Phase
Function:	Driving
Certification:	Ce
Brand:	Yinda Folk OEM

Product Description

IEC TEFC Three-phase Induction Motor
(Electrical Motor, Electric Motor, AC Motor, Asynchronous Motor, Capacitor Motor, Micro motor, Small Motor, Electromotor, Fan Motor, Gear Motor)

Standard features:
Cast iron Frame: 80-315L
Mounting type: B3
Power: 0.55kw(0.75HP)-200kw(270HP)
Squirrel cage rotor/Aluminium die cast
Continous duty: S1
Protection grade: IP44
Insulation class: B
Voltage: 380V

Optical features:
Aluminium frame 63-132M
Mounting type: B5/B14
Special voltages 220V, 660V

Technical Data:

TYPE	POWER KW	HORSEPOWER HP	VOLTAGE V	CURRENT A	FREQUENCY HZ	SPEED R/MIN	EFFICIENCY %	POWER FACTOR COS	LOCKED-ROTOR CURRENT/RATED CURRENT	LOCKED -ROTOR TORQUE/RATED TORQUE	MAX TORQUE/RATED TORQUE	NOISE LwdB(A)
Y80M1-2	0.75	1	380	1.8	50	2830	75	0.84	6.5	2.2	2.3	71
Y80M2-2	1.1	1.5	380	2.5	50	2830	77	0.86	7	2.2	2.3	71
Y90S-2	1.5	2	380	3.4	50	2840	78	0.85	7	2.2	2.3	75
Y90L-2	2.2	3	380	4.7	50	2840	82	0.86	7	2.2	2.3	75
Y100L-2	3	4	380	6.4	50	2880	82	0.87	7	2.2	2.3	79
Y112M-2	4	5.5	380	8.2	50	2890	85.5	0.87	7	2.2	2.3	79
Y132S1-2	5.5	7.5	380	11.1	50	2900	85.5	0.88	7	2	2.2	83
Y132S2-2	7.5	10	380	15	50	2900	86.2	0.88	7	2.2	2.2	83
Y160M1-2	11	15	380	22	50	2930	87.2	0.88	7	2	2.2	87
Y160M2-2	15	20	380	29	50	2930	88.2	0.88	7	2	2.2	87
Y160L-2	18.5	25	380	36	50	2930	89	0.89	7	2	2.3	87
Y180M-2	22	30	380	42.2	50	2940	89	0.89	7	2	2.2	92
Y200L1-2	30	40	380	57	50	2950	90	0.89	7	2	2.2	95
Y200L2-2	37	50	380	70	50	2950	90.5	0.89	7	2	2.2	95
Y225M-2	45	60	380	84	50	2970	91.5	0.89	7	2	2.2	97
Y250M-2	55	75	380	103	50	2970	91.5	0.89	7	2	2.2	97
Y280S-2	75	100	380	140	50	2970	91.5	0.89	7	2	2.2	99
Y280M-2	90	120	380	167	50	2970	92	0.89	7	2	2.2	99
Y315S-2	110	150	380	203	50	2980	92.5	0.89	7	1.8	2.2	104
Y315M-2	132	180	380	242	50	2980	93	0.89	7	1.8	2.2	104
Y315L1-2	160	220	380	292	50	2980	93.5	0.89	7	1.8	2.2	104
Y315L2-2	200	270	380	365	50	2980	93.5	0.89	7	1.8	2.2	104
Y80M1-4	0.55	0.75	380	1.5	50	1390	73	0.76	6	2.2	2.3	67
Y80M2-4	0.75	1	380	2	50	1390	74.5	0.76	6	2.2	2.3	67
Y90S-4	1.1	1.5	380	2.8	50	1400	78	0.78	6.5	2.3	2.3	67
Y90L-4	1.5	2	380	3.7	50	1400	79	0.79	6.5	2.3	2.3	67
Y100L1-4	2.2	3	380	5	50	1420	81	0.82	7	2.2	2.3	70
Y100L2-4	3	4	380	6.8	50	1420	82.5	0.81	7	2.2	2.3	70
Y112M-4	4	5.5	380	8.8	50	1440	84.5	0.82	7	2.2	2.3	74
Y132S-4	5.5	7.5	380	11.7	50	1440	85.5	0.84	7	2	2.3	78
Y132M-4	7.5	10	380	15	50	1440	87	0.85	7	2.2	2.3	78
Y160M-4	11	15	380	23	50	1460	88	0.84	7	2.2	2.3	82
Y160L-4	15	20	380	30	50	1460	88.5	0.85	7	2.2	2.2	82
Y180M-4	18.5	25	380	35	50	1470	91	0.86	7	2	2.2	82
Y180L-4	22	30	380	43	50	1470	91.5	0.86	7	2	2.2	82
Y200L-4	30	40	380	57	50	1470	92.2	0.87	7	2	2.2	84
Y225S-4	37	50	380	70	50	1480	91.8	0.87	7	1.9	2.2	84
Y225M-4	45	60	380	84	50	1480	92.3	0.88	7	1.9	2.2	84
Y250M-4	55	75	380	103	50	1480	93	0.88	7	2	2.2	86
Y280S-4	75	100	380	140	50	1480	93	0.88	7	2	2.2	90
Y280M-4	90	120	380	164	50	1480	93.5	0.88	7	2	2.2	90
Y315S-4	110	150	380	201	50	1480	93.5	0.89	7	1.8	2.2	98
Y315M-4	132	180	380	240	50	1490	94	0.89	7	1.8	2.2	101
Y315L1-4	160	220	380	289	50	1490	94.5	0.89	7	1.8	2.2	101
Y315L2-4	200	270	380	361	50	1490	94.5	0.89	7	1.8	2.2	101
Y90S-6	0.75	1	380	2.3	50	910	72.5	0.7	5.5	2	2.2	65
Y90L-6	1.1	1.5	380	3.2	50	910	73.5	0.72	5.5	2	2.2	65
Y100L-6	1.5	2	380	4	50	940	77.5	0.74	6	2	2.2	67
Y112M-6	2.2	3	380	5.6	50	940	80.5	0.74	6	2	2.2	67
Y132S-6	3	4	380	7.3	50	960	83	0.76	6.5	2	2.2	71
Y132M1-6	4	5.5	380	9.4	50	960	84	0.77	6.5	2	2.2	71
Y132M2-6	5.5	7.5	380	12.6	50	960	85.3	0.78	6.5	2	2.3	71
Y160M-6	7.5	10	380	17	50	970	86	0.78	6.5	2	2	75
Y160L-6	11	15	380	25	50	970	87	0.78	6.5	2	2	75
Y180L-6	15	20	380	31	50	970	89.5	0.81	6.5	1.8	2	78
Y200L-6	18.5	25	380	45	50	970	89.8	0.83	6.5	1.8	2	78
Y200L1-6	22	30	380	34	50	970	90.2	0.83	6.5	1.8	2	78
Y200L2-6	30	40	380	60	50	980	90.2	0.85	6.5	1.7	2	81
Y225M-6	37	50	380	72	50	980	91	0.86	6.5	1.6	2	87
Y280S-6	45	60	380	85	50	980	93.5	0.86	6.5	1.6	2	87
Y280M-6	55	75	380	104	50	980	92	0.86	6.5	1.6	2	88
Y315S-6	75	100	380	141	50	990	93	0.87	6.5	1.6	2	88
Y315M-6	90	120	380	169	50	990	93.5	0.87	6.5	1.6	2	88
Y315L1-6	110	150	380	205	50	990	92	0.87	6.5	1.6	2	89
Y315L2-6	132	180	380	245	50	990	92.5	0.87	6.5	1.6	2	89
Y112M-8	2.2	3	380	4.8	50	710	73	0.66	5.5	2	2	63
Y160M1-8	4	5.5	380	9.9	50	720	84	0.73	6	2	2	69
Y160M2-8	5	7.5	380	13	50	720	85	0.74	6	2	2	69
Y160L-87	7.5	10	380	8	50	720	86	0.75	5.5	2	2	72
Y180L-8	11	15	380	25	50	730	86.5	0.77	6	1.7	2	72
Y200L-8	15	20	380	34	50	730	88	0.76	6	1.8	2	75
Y225S-8	18.5	25	380	41	50	730	89	0.76	6	1.7	2	75
Y250M-8	30	40	380	63	50	730	90.5	0.8	6	1.6	2	88
Y280S-8	37	50	380	78	50	740	92	0.8	6.5	1.6	2	88
Y280M-8	45	60	380	93	50	740	92.5	0.8	6.5	1.6	2	89
Y315S-8	55	75	380	113	50	740	92	0.8	6.5	1.6	2	89
Y315M-8	75	100	380	152	50	740	92.5	0.81	6.5	1.6	2	89
Y315L1-8	90	120	380	179	50	740	92.5	0.82	6.5	1.6	2	89
Y315L2-8	110	150	380	218	50	740	92.5	0.82	6.5	1.6	2	89

Yinda located in Wenling city of Zhejiang provice, which is 15 minutes driving from Wenling Train Station.

Establised in 1988 and renamed in 2003, Zhejiang Yinda Machine Electricity Co., Ltd. Engaged in developing reliable motors, as well as welding machine and scrao wire stripping machines to satisfying the market.

Our products:

1. Electric Motors:

Single-phase AC motor, (including Capacitor start & run motor, capacitor run motor, capacitor start motor, resistance start motor) ML, MC, MY, YL, YC, YY, YU, YCL

Three-phase Electric motor, IE3, IE2

Three-Phase double speed motor, YD series

Electromagnetic Brake AC Motor YEJ/Y2EJ series

Change Speed Frequency Vataible Inverter Duty Motor YVP/YVF2 series

Custom motors are available.

2. Kinds of recycling equipment such as Scrap Wire stripping machine & Motor reccycling machine

3. Welding Machines:

MMA inverter Welding, ZX7 series

TIG Welding

MIG Welding

BX1 series AC Arc Welding

Bx6 Series AC Arc Welding

Bx6 series stainless body welding

Bx series wooden leg welding
