| Prod Model: |
Y2 315L1-6 |
| Technology: |
The Introduction of German Technology |
| Competitive: |
Top1 Electric Machinery Factory |
| Place Of Origin: |
Fuan City-The Original Place of Generatorand Motor |
| Warranty: |
We May Make 2 Years Quality Warranty |
| One-Stop Service: |
More Than 16 Years Old Factory |
| Our Advantage: |
Our Workers Are All From Chinese Earliest Mindong |
| Delivery Port: |
Fuzhou, Shenzhen, Any Port in China |
| Delivery Time: |
Shipped in 25days After Payment |
| Inside Packing: |
Foam and Plastic Package |
| Outside Packing: |
Plywood Package |
| Number Of Stator: |
Three-Phase |
| Function: |
Control |
| Certification: |
Ce |
| Brand: |
Emean |
Product Description

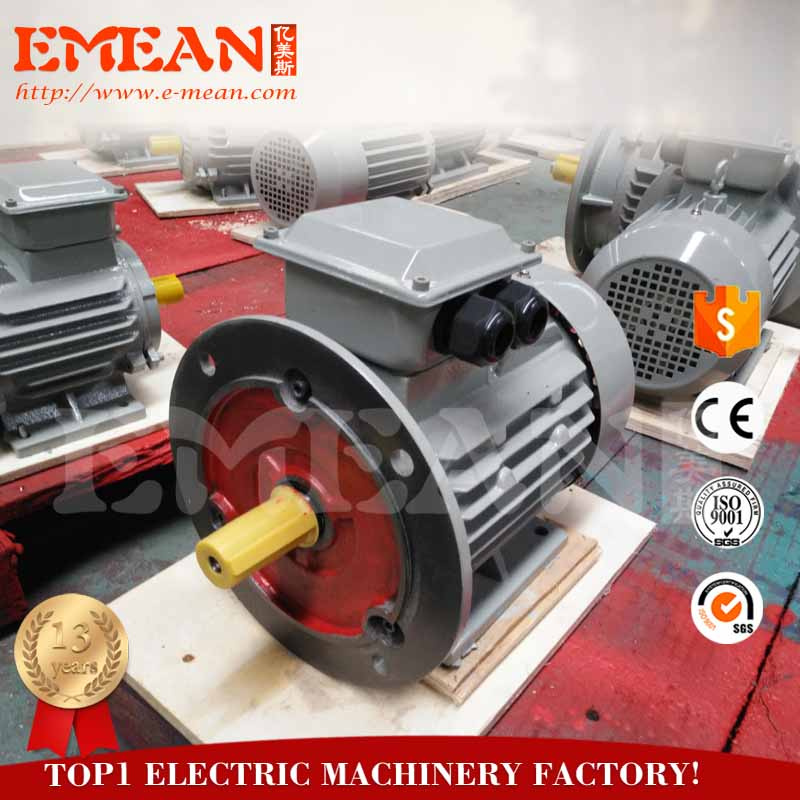

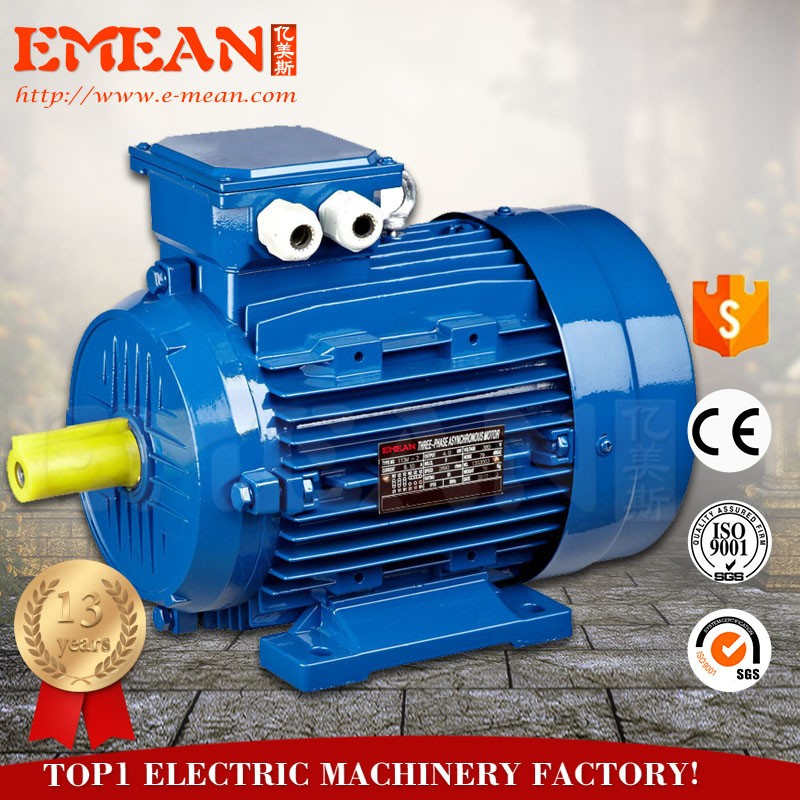

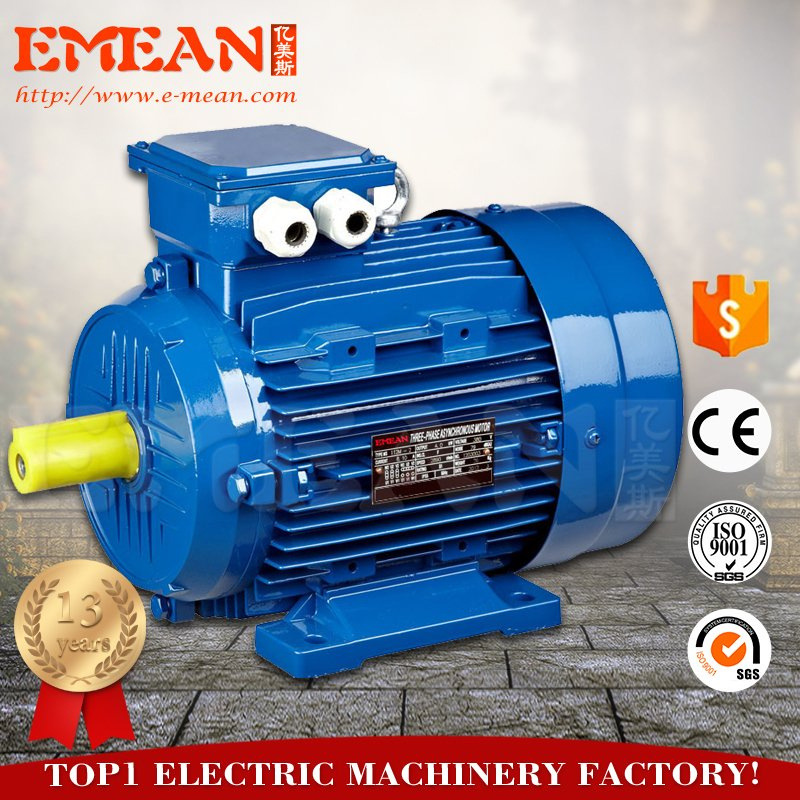

Three Phase Induction Motor Electric Motor Y2 Series
We are have 16 years manufacture experience and supply one-stop service for 13 years.
Welcome to contact us. www.e-mean.com ; P:0086-15860667222
| TYPE | Output | Stator Length | Current
(A) | Power
Factor | Eff
(%) | Speed
(r.p.m) | Locked rotor
torque | Locked rotor
current | Max torque
Rated torque |
| KW | HP | Rated torque | Rated current | |
| Synchronous Speed 3000r/min(2p)50Hz |
| Y2-801-2 | 0.75 | 1 | 65 | 1.8 | 0.83 | 75 | 2890 | 2.2 | 6.0 | 2.2 |
| Y2-802-2 | 1.1 | 1.5 | 80 | 2.6 | 0.84 | 77 | 2900 | 2.2 | 7.0 | 2.2 |
| Y2-90S-2 | 1.5 | 2 | 85 | 3.4 | 0.84 | 79 | 2900 | 2.2 | 7.0 | 2.2 |
| Y2-90L-2 | 2.2 | 3 | 110 | 4.8 | 0.85 | 81 | 2930 | 2.2 | 7.0 | 2.2 |
| Y2-100L-2 | 3 | 4 | 100 | 6.3 | 0.87 | 83 | 2930 | 2.2 | 7.0 | 2.2 |
| Y2-112M-2 | 4 | 5.5 | 105 | 8.1 | 0.88 | 85 | 2930 | 2.2 | 8.0 | 2.2 |
| Y2-132S1-2 | 5.5 | 7.5 | 105 | 11 | 0.88 | 86 | 2940 | 2.2 | 8.0 | 2.2 |
| Y2-132S2-2 | 7.5 | 10 | 125 | 15 | 0.88 | 87 | 2950 | 2.2 | 8.0 | 2.2 |
| Y2-160M1-2 | 11 | 15 | 125 | 21.3 | 0.89 | 88 | 2950 | 2.0 | 8.0 | 2.2 |
| Y2-160M2-2 | 15 | 20 | 155 | 28.7 | 0.89 | 89 | 2970 | 2.0 | 8.0 | 2.2 |
| Y2-160L-2 | 18.5 | 25 | 195 | 34.6 | 0.90 | 90 | 2970 | 2.0 | 8.0 | 2.2 |
| Y2-180M-2 | 22 | 30 | 175 | 40.9 | 0.90 | 90 | 2970 | 2.0 | 8.0 | 2.2 |
| Y2-200L1-2 | 30 | 40 | 180 | 55.4 | 0.90 | 91.2 | 2970 | 2.0 | 8.0 | 2.2 |
| Y2-200L2-2 | 37 | 50 | 210 | 67.7 | 0.90 | 92 | 2980 | 2.0 | 8.0 | 2.2 |
| Y2-225M-2 | 45 | 60 | 210 | 82.3 | 0.90 | 92.3 | 2980 | 1.8 | 8.0 | 2.2 |
| Y2-250M-2 | 55 | 75 | 195 | 101 | 0.90 | 92.5 | 2980 | 1.8 | 7.0 | 2.2 |
| Y2-280S-2 | 75 | 100 | 225 | 134 | 0.90 | 93 | 2980 | 1.8 | 7.0 | 2.2 |
| Y2-280M-2 | 90 | 120 | 260 | 160 | 0.91 | 93.8 | 2980 | 1.8 | 7.0 | 2.2 |
| Y2-315S-2 | 110 | 150 | 260 | 194 | 0.91 | 94.3 | 2980 | 1.8 | 7.0 | 2.2 |
| Y2-315M-2 | 132 | 180 | 315 | 233 | 0.91 | 94.6 | 2980 | 1.8 | 7.0 | 2.2 |
| Synchronous Speed 1500r/min(4p)50Hz |
| Y2-711-4 | 0.25 | 0.33 | | 0.79 | 0.74 | 65 | 1400 | 2.2 | 5.5 | 2.2 |
| Y2-712-4 | 0.37 | 0.5 | | 1.12 | 0.75 | 67 | 1400 | 2.2 | 5.5 | 2.2 |
| Y2-801-4 | 0.55 | 0.75 | | 1.6 | 0.75 | 71 | 1400 | 2.2 | 5.5 | 2.2 |
| Y2-802-4 | 0.75 | 1 | | 2 | 0.77 | 73 | 1400 | 2.2 | 6.0 | 2.2 |
| Y2-90S-4 | 1.1 | 1.5 | | 2.9 | 0.77 | 75 | 1400 | 2.2 | 6.0 | 2.2 |
| Y2-90L-4 | 1.5 | 2 | | 3.7 | 0.79 | 78 | 1400 | 2.2 | 6.0 | 2.2 |
| Y2-100L1-4 | 2.2 | 3 | | 5.1 | 0.81 | 80 | 1410 | 2.2 | 7.0 | 2.2 |
| Y2-100L2-4 | 3 | 4 | | 6.8 | 0.82 | 82 | 1420 | 2.2 | 7.0 | 2.2 |
| Y2-112M-4 | 4 | 5.5 | | 8.8 | 0.82 | 84 | 1420 | 2.2 | 7.0 | 2.2 |
| Y2-132S-4 | 5.5 | 7.5 | | 11.8 | 0.83 | 85 | 1440 | 2.2 | 7.0 | 2.2 |
| Y2-132M-4 | 7.5 | 10 | | 15.5 | 0.84 | 87 | 1440 | 2.0 | 7.0 | 2.2 |
| Y2-160M-4 | 11 | 15 | | 22.3 | 0.85 | 88 | 1460 | 2.0 | 7.0 | 2.2 |
| Y2-160L-4 | 15 | 20 | | 30 | 0.85 | 89 | 1460 | 2.0 | 7.0 | 2.2 |
| Y2-180M-4 | 18.5 | 25 | | 36.4 | 0.85 | 90.5 | 1470 | 2.2 | 7.5 | 2.2 |
| Y2-180L-4 | 22 | 30 | | 43.1 | 0.85 | 91 | 1470 | 2.2 | 7.5 | 2.2 |
| Y2-200L-4 | 30 | 40 | | 57.4 | 0.86 | 92 | 1470 | 2.2 | 7.5 | 2.2 |
| Y2-225S-4 | 37 | 50 | | 69.9 | 0.87 | 92.5 | 1480 | 2.2 | 7.5 | 2.2 |
| Y2-225M-4 | 45 | 60 | | 84.7 | 0.87 | 92.8 | 1480 | 2.2 | 7.5 | 2.2 |
| Y2-250M-4 | 55 | 75 | | 103 | 0.89 | 93 | 1480 | 2.2 | 7.0 | 2.2 |
| Y2-280S-4 | 75 | 100 | | 140 | 0.86 | 93.8 | 1480 | 2.2 | 7.0 | 2.2 |
| Y2-280M-4 | 90 | 120 | | 167 | 0.86 | 94.2 | 1490 | 2.2 | 7.0 | 2.2 |
| Y2-315S-4 | 110 | 150 | | 201 | 0.87 | 94.5 | 1490 | 2.1 | 6.9 | 2.2 |
| Synchronous Speed 1000r/min(6p)50Hz |
| Y2-802-6 | 0.55 | 0.75 | | 1.8 | 0.7 | 65 | 900 | 2.0 | 5.0 | 2.2 |
| Y2-90S-6 | 0.75 | 1 | | 2.3 | 0.7 | 69 | 910 | 2.0 | 5.5 | 2.2 |
| Y2-90L-6 | 1.1 | 1.5 | | 3.2 | 0.7 | 72 | 910 | 2.0 | 5.5 | 2.2 |
| Y2-100L-6 | 1.5 | 2 | | 3.9 | 0.8 | 76 | 940 | 2.0 | 5.5 | 2.2 |
| Y2-112M-6 | 2.2 | 3 | | 5.6 | 0.8 | 79 | 940 | 2.0 | 6.5 | 2.2 |
| Y2-132S-6 | 3 | 4 | | 7.4 | 0.8 | 81 | 960 | 2.0 | 6.5 | 2.2 |
| Y2-132M1-6 | 4 | 5.5 | | 9.8 | 0.8 | 82 | 960 | 2.0 | 6.5 | 2.2 |
| Y2-132M2-6 | 5.5 | 7.5 | | 12.9 | 0.8 | 84 | 960 | 2.0 | 6.5 | 2.0 |
| Y2-160M-6 | 7.5 | 10 | | 17 | 0.8 | 86 | 970 | 2.0 | 6.5 | 2.0 |
| Y2-160L-6 | 11 | 15 | | 24.2 | 0.8 | 87.5 | 970 | 2.0 | 6.5 | 2.0 |
| Y2-180L-6 | 15 | 20 | | 31.6 | 0.8 | 89 | 970 | 2.0 | 7.0 | 2.0 |
| Y2-200L1-6 | 16.5 | 25 | | 38.6 | 0.8 | 90 | 970 | 2.0 | 7.0 | 2.0 |
| Y2-200L2-6 | 22 | 30 | | 44.7 | 0.8 | 90 | 970 | 2.0 | 7.0 | 2.0 |
| Y2-225M-6 | 30 | 40 | | 59.3 | 0.8 | 91.5 | 980 | 2.0 | 7.0 | 2.1 |
| Y2-250M-6 | 37 | 50 | | 71 | 0.9 | 92 | 980 | 2.0 | 7.0 | 20 |
| Y2-280S-6 | 45 | 60 | | 86 | 0.9 | 92.5 | 980 | 2.0 | 7.0 | 20 |
| Y2-280M-6 | 55 | 75 | | 105 | 0.9 | 92.8 | 980 | 2.0 | 7.0 | 20 |
| Y2-315S-6 | 75 | 100 | | 141 | 0.9 | 93.5 | 990 | 2.0 | 7.0 | 20 |
| Y2-315M-6 | 90 | 120 | | 169 | 0.9 | 93.8 | 990 | 2.0 | 7.0 | 20 |
| Y2-315L1-6 | 110 | 150 | | 206 | 0.9 | 94 | 990 | 2.0 | 6.7 | 20 |
| Y2-315L2-6 | 132 | 180 | | 244 | 0.9 | 94.2 | 990 | 2.0 | 6.7 | 20 |
Good factory Supplier save you time and money, help your win market,
|
| OEM welcomed. HS NO. reference:85015200 00 |
| 5-50-500-1000-5000-10000-50000 pcs depend different size ,item and category. MIN and SMALL quantity accept |
Price
(Factory Lowest price) | we are factory( our factory address for you check: JI'AN ROAD FUAN CITY,FUJIAN,CHINA), ensure lowest price and good quality and best service for you, we best service 24 hour online. |
| General 25-30 days ,biggest order depend quantity |
| Inside foam packing,outside carton packing (the frame size smaller than 112)
Plywood case packing (the frame size bigger than 112)
LCL with pallet packing |
| Machine tools,pumps,fans,transport machinery,mixer,agriculture machinery and food processing machines,etc |
| More products details , our Advantage,package ways, lowest price etc pls check next details and contact us (P:0086-15860667222) |
Factory Advantage─────────────────────────────────────────| As a factory supplier profit/Assurance for you | About our products profit for you: |
| 1.100% Product quality protection | 1.We have the Professional technical team |
| 2.100% On-time shipment protection | 2.Motor process more than 13 years |
| 3.100% Payment protection | 3.Engine process more than 13 years |
| 4.Most Popular "electric machinery"factory | 4. Alternator process more than 13 years |
| 5.We passed CE and ISO and SGS certified | 5.We have the Germany advanced detection equipment |
WE are factory: add: JIAN ROAD FUAN CITY,FUJIAN,CHINA
our some process advantage for you reference:
1)Our factory has over 16 years history and 13 year export experience.
2)we have two factories and an Import/Export company.
3)Our generator comply with CE standard
4)our quality warranty is one year or 1200 running hour.
5)We introduce the latest technology in Germany
6) OEM welcomed.

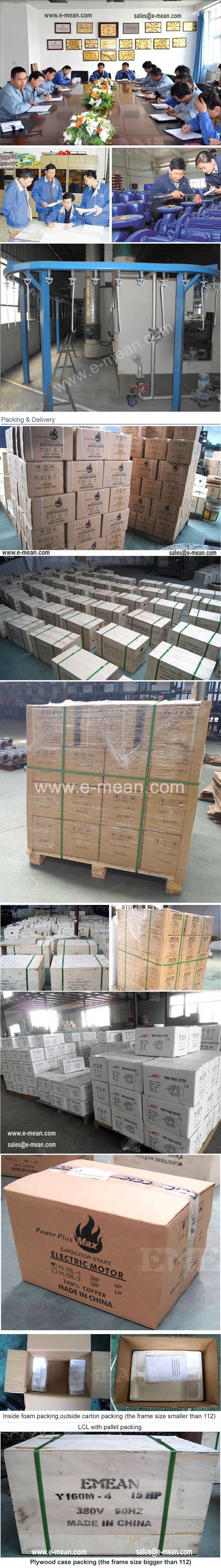

| Good and safe Package.We pack very careful protection your goods. |
| 1. HS code for you | Single phase AC motor:85014000 ;
Three phases AC motor power over 750W: 85015100
Three phases AC motor power over 750W and lower 75KW: 85015200
Three phases AC motor power over 75kW: 85015300 |
| 2. General packing | We have general packing,white/brown,color box,plywood case packing. |
| 3.OEM one-stop packing | Happy your send packing design OEM packing it. |
Check below for more information on placing an order
1. Inquiry-Professional quotation.
2. Confirm the price,lead time,payment term etc.
3. Our sales send the Proforma Invoice with our seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Initial Production Stage-Inform the clients that we have got the payment,And will make the samples according to your request, send you photos to get your approval. After approval, we inform that we will arrange the production & inform the estimated time.
6. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.
7. End Production-Mass production products photos will send to you for approval. You can also arrange the third party Inspection .
8. Clients make payment for balance and Ship the goods , Inform the tracking number and check the status for clients.
9. Order can be say "finish" when you receive the goods and satisfy with them .
10. Feedback to our about Quality , Service, Market Feedback & Suggestion. And we can do better .
Used for field: machine tools, pumps, fans, transport machinery, mixer, agriculture machinery, food machines, etc.
Please feel free contact us anytime, it's our honor to service for you. we are together.
EMEAN NEVER LET YOUR POWER STOP, BETTER FOR YOU BETTER LIFE!
Fuzhou Emean Electric Machinery Co., Ltd. is one of the biggest enterprises, lies in "China Electrical Machinery and Appliances City"--Fuan. EMEAN is a private enterprise established in 2003, which is a comprehensive electrical machinery manufacturing company integrating product designs, production, marketing and service.
Rely on scientific and technological development, we continue to provide users high-tech products, which is our consistent pursuit. On the basis of absorbing the foreign advanced technology, we have already fetched in 10 lines advanced international machinery production. The main products manufactured by our company consist of more than 10 series, over 100 types, involving generators, diesel generating sets, gasoline generating sets and concrete cutter, of which all of our products have been passed the national attestation CCC, CE certificate, Nigeria Soncap and EPA certificate.
EMEAN is a young enterprise, but she owns the fresh and great-hearted blood, which make her more charmful. "Quality assurance, user first" is the agreement of EMEAN executives. Communicate with the domestic industry, scientific research institutions exchange and cooperation so as to improving the quality, such as: Design and production, commissioning and maintenance. Then occupy the market, and expand the scale of the company. We have been moving forward to a more prosperous achievement under the fierce competition.
Today, EMEAN staff pursue the guidelines--"aggressive, realistic, strict and unity" to blaze new trails. We make technology as the core, quality as life and users to God, dedicated to provide you with the highest & cost-effective products and meticulous after-sales service in order to shape a bright future.
