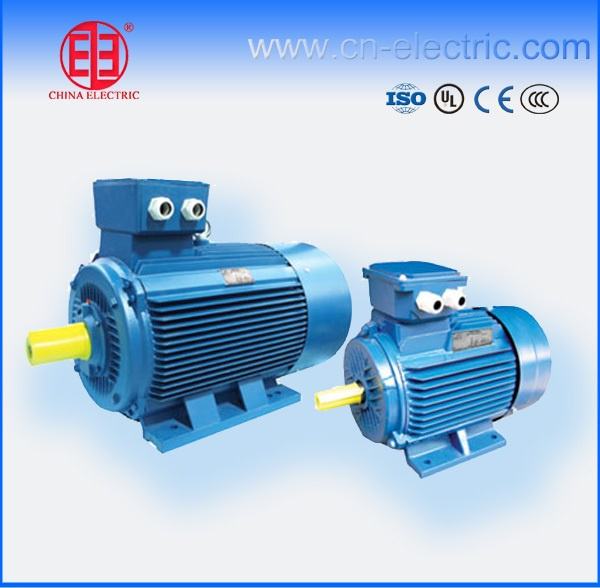

Three Phase Induction Motor for General Use
| Price: |
US $ 50-10000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Y, YE2, YE3 |
| Output Power: |
0.18kw-375kw |
| Efficiency: |
Ie1, Ie2, Ie3 |
| Structure: |
Squirrel Cage Cast Iron Shell Asynchronous Motor |
| Winding: |
100% Red Copper |
| Protection: |
IP44, IP54, IP55, IP56 |
| Driving: |
Compressor, Pump, Fan,Blower, Crusher, Cutting Lat |
| Voltage: |
380V, 415V, 400V,or as Required |
| Cooling Method: |
IC411, IC410 |
| Application: |
Industrial |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Soft Starter |
| Species: |
Y, Y2, Y3,Ye2, Ye3 |
| Number Of Poles: |
2,4,6,8,10,12 |
| Certification: |
Ce |
| Brand: |
China Electric |
Product Description
Y/Y2/YE2/YE3 asychronous three phase induction motor
Frame size: 80mm~355mm
Rated Power: 0.18Kw~375Kw
Introduction:
Y2 series Three Phase Asynchronous Induction Electric motors are newly designed by our company for European and American market on the basis of Y2 series. The motors are conformity with IEC60034-1 and JB/T8680-2008 standards, also up to the international advanced level of 90's, it possess sophisticated features such as new construction, good appearance, slight vibration, low noise etc. Its rated power, mounting size are same as Y2 series. The efficiency of the Motor meets EFF2, EFF1. the motors are Class F(Temperature rise B) insulation , IP55. Motors can be equipped with PTC, for frame size 160 and above also can be equipped with re-greasing system. Chinese good bearings and SKF, NSK bearings all available as request.
Operating Conditions:
Ambient temperature: -15°C≤θ≤40°C
Altitude: not exceed 1000m
Rated voltage: 380V or any voltage between 220V-760V.
Rated frequency: 50HZ, 60HZ
Protection Class: IP44, IP54 ,IP55
Insulation Class: B, F, H
Cooling method: ICO141 Duty: S1 (continuous)
Connection: Star connection for up to 3kw, delta connection for 4kw and above.
Remarks: Motors can be equipped with PTC, for frame size 160 and above also can be equipped with re-greasing system. Terminal box on top , right and left are available. Key way can be closed type or opened type. Right side or left are available.
Range Of Performance:
0.18~315kw 2 pole
0.12~315kw 4 pole
0.18~250kw 6 pole
0.18~200kw 8 pole
45.0~160kw 10 pole
Limits Of Use:
Ambient temperature: -15°C≤θ≤40°C
Altitude: not exceed 1000m
Rated voltage: ±5%
Options On Request:
Rated voltage: 380V, any voltage between 220V-760V
Rated frequency: 50HZ or 60HZ
Protection class: IP44 / IP54 / IP55
Insulation class: Class B / Class F
Bearing: Chinese good bearings, or SKF,NSK if request
Technical parameter:
For 380/50Hz, Y2 series motor only.| Model | Power | Current | Speed | Efficiency | Power factor | Noise | Weight |
| KW | A | r/min | % | db | kg |
| Y2-80M1-2 | 0.75 | 1.83 | 2825 | 75.0 | 0.83 | 67 | 15 |
| Y2-80M2-2 | 1.1 | 2.61 | 2825 | 76.2 | 0.84 | 67 | 16 |
| Y2-90S-2 | 1.5 | 3.46 | 2840 | 78.5 | 0.84 | 72 | 20 |
| Y2-90L-2 | 2.2 | 4.85 | 2840 | 81.0 | 0.85 | 72 | 24 |
| Y2-100L-2 | 3 | 6.34 | 2880 | 82.6 | 0.87 | 76 | 30 |
| Y2-112M-2 | 4 | 8.2 | 2890 | 84.2 | 0.88 | 77 | 38 |
| Y2-132S1-2 | 5.5 | 11.1 | 2900 | 85.7 | 0.88 | 80 | 56 |
| Y2-132S2-2 | 7.5 | 14.9 | 2900 | 87.0 | 0.88 | 80 | 61 |
| Y2-160M1-2 | 11 | 21.2 | 2930 | 88.4 | 0.89 | 86 | 100 |
| Y2-160M2-2 | 15 | 28.6 | 2930 | 89.4 | 0.89 | 86 | 112 |
| Y2-160L-2 | 18.5 | 34.7 | 2930 | 90.0 | 0.9 | 86 | 134 |
| Y2-180M-2 | 22 | 41 | 2940 | 90.5 | 0.9 | 89 | 165 |
| Y2-200L1-2 | 30 | 55.4 | 2950 | 91.4 | 0.9 | 92 | 223 |
| Y2-200L2-2 | 37 | 67.9 | 2950 | 92.0 | 0.9 | 92 | 235 |
| Y2-225M-2 | 45 | 82.1 | 2970 | 92.5 | 0.9 | 92 | 286 |
| Y2-250M-2 | 55 | 100 | 2970 | 93.0 | 0.9 | 93 | 367 |
| Y2-280S-2 | 75 | 135 | 2970 | 93.6 | 0.9 | 94 | 475 |
| Y2-280M-2 | 90 | 160 | 2970 | 93.9 | 0.91 | 94 | 522 |
| Y2-315S-2 | 110 | 195 | 2980 | 94.0 | 0.91 | 96 | 855 |
| Y2-315M-2 | 132 | 233 | 2980 | 94.5 | 0.91 | 96 | 940 |
| Y2-315L1-2 | 160 | 279 | 2980 | 94.6 | 0.92 | 99 | 980 |
| Y2-315L2-2 | 200 | 348 | 2980 | 94.8 | 0.92 | 99 | 1060 |
| Y2-355M-2 | 250 | 434 | 2980 | 95.2 | 0.92 | 103 | 1650 |
| Y2-355L-2 | 315 | 545 | 2980 | 95.4 | 0.92 | 103 | 1850 |
| Y2-80M1-4 | 0.55 | 1.57 | 1390 | 71.0 | 0.75 | 58 | 14 |
| Y2-80M2-4 | 0.75 | 2.05 | 1390 | 73.0 | 0.76 | 58 | 15 |
| Y2-90S-4 | 1.1 | 2.85 | 1400 | 76.2 | 0.77 | 61 | 20 |
| Y2-90L-4 | 1.5 | 3.68 | 1400 | 78.5 | 0.79 | 61 | 23 |
| Y2-100L1-4 | 2.2 | 5.09 | 1420 | 81.0 | 0.81 | 64 | 31 |
| Y2-100L2-4 | 3 | 6.73 | 1420 | 82.6 | 0.82 | 64 | 35 |
| Y2-112M-4 | 4 | 8.8 | 1440 | 84.2 | 0.82 | 65 | 42 |
| Y2-132S-4 | 5.5 | 11.7 | 1440 | 85.7 | 0.83 | 71 | 60 |
| Y2-132M-4 | 7.5 | 15.6 | 1440 | 87.0 | 0.84 | 71 | 72 |
| Y2-160M-4 | 11 | 22.5 | 1460 | 88.4 | 0.84 | 75 | 109 |
| Y2-160L-4 | 15 | 30 | 1460 | 89.4 | 0.85 | 75 | 128 |
| Y2-180M-4 | 18.5 | 36.3 | 1470 | 90.0 | 0.86 | 76 | 159 |
| Y2-180L-4 | 22 | 42.9 | 1470 | 90.5 | 0.86 | 76 | 179 |
| Y2-200L-4 | 30 | 58 | 1470 | 91.4 | 0.86 | 79 | 234 |
| Y2-225S-4 | 37 | 70.2 | 1480 | 92.0 | 0.87 | 81 | 274 |
| Y2-225M-4 | 45 | 85 | 1480 | 92.5 | 0.87 | 81 | 304 |
| Y2-250M-4 | 55 | 103 | 1480 | 93.0 | 0.87 | 83 | 383 |
| Y2-280S-4 | 75 | 140 | 1480 | 93.6 | 0.87 | 86 | 513 |
| Y2-280M-4 | 90 | 167 | 1480 | 93.9 | 0.87 | 86 | 575 |
| Y2-315S-4 | 110 | 201 | 1480 | 94.5 | 0.88 | 93 | 840 |
| Y2-315M-4 | 132 | 240 | 1480 | 94.8 | 0.88 | 93 | 930 |
| Y2-315L1-4 | 160 | 288 | 1480 | 94.9 | 0.89 | 97 | 1060 |
| Y2-315L2-4 | 200 | 360 | 1480 | 94.9 | 0.89 | 97 | 1150 |
| Y2-355M-4 | 250 | 443 | 1490 | 95.2 | 0.9 | 101 | 1720 |
| Y2-355L-4 | 315 | 559 | 1490 | 95.2 | 0.9 | 101 | 1940 |
| Y2-80M1-6 | 0.37 | 1.3 | 900 | 62.0 | 0.7 | 54 | 13 |
| Y2-80M2-6 | 0.55 | 1.79 | 900 | 65.0 | 0.72 | 54 | 14 |
| Y2-90S-6 | 0.75 | 2.29 | 910 | 69.0 | 0.72 | 57 | 20 |
| Y2-90L-6 | 1.1 | 3.18 | 910 | 72.0 | 0.73 | 57 | 24 |
| Y2-100L-6 | 1.5 | 4 | 940 | 76.0 | 0.75 | 61 | 30 |
| Y2-112M-6 | 2.2 | 5.57 | 940 | 79.0 | 0.76 | 65 | 40 |
| Y2-132S-6 | 3 | 7.4 | 940 | 81.0 | 0.76 | 69 | 54 |
| Y2-132M1-6 | 4 | 9.8 | 940 | 82.0 | 0.76 | 69 | 68 |
| Y2-132M2-6 | 5.5 | 12.9 | 940 | 84.0 | 0.77 | 69 | 75 |
| Y2-160M-6 | 7.5 | 17.2 | 970 | 86.0 | 0.77 | 73 | 102 |
| Y2-160L-6 | 11 | 24.5 | 970 | 87.5 | 0.78 | 73 | 126 |
| Y2-180L-6 | 15 | 31.6 | 970 | 89.0 | 0.81 | 73 | 169 |
| Y2-200L1-6 | 18.5 | 38.6 | 970 | 90.0 | 0.81 | 76 | 215 |
| Y2-200L2-6 | 22 | 44.7 | 970 | 90.0 | 0.83 | 76 | 220 |
| Y2-225M-6 | 30 | 59.3 | 980 | 91.5 | 0.84 | 76 | 276 |
| Y2-250M-6 | 37 | 71.1 | 980 | 92.0 | 0.86 | 78 | 355 |
| Y2-280S-6 | 45 | 85.9 | 980 | 92.5 | 0.86 | 80 | 462 |
| Y2-280M-6 | 55 | 105 | 980 | 92.8 | 0.86 | 80 | 496 |
| Y2-315S-6 | 75 | 142 | 987 | 93.5 | 0.86 | 85 | 810 |
| Y2-315M-6 | 90 | 170 | 987 | 93.8 | 0.86 | 85 | 910 |
| Y2-315L1-6 | 110 | 207 | 987 | 94.0 | 0.86 | 85 | 1000 |
| Y2-315L2-6 | 132 | 245 | 987 | 94.2 | 0.87 | 85 | 1075 |
| Y2-355M1-6 | 160 | 292 | 980 | 94.5 | 0.88 | 92 | 1460 |
| Y2-355M2-6 | 200 | 365 | 980 | 94.5 | 0.88 | 92 | 1660 |
| Y2-355L-6 | 250 | 457 | 980 | 94.5 | 0.88 | 92 | 1880 |
| Y2-80M1-8 | 0.18 | 0.88 | 645 | 51.0 | 0.61 | 52 | 13 |
| Y2-80M2-8 | 0.25 | 1.15 | 645 | 54.0 | 0.61 | 52 | 15 |
| Y2-90S-8 | 0.37 | 1.49 | 675 | 62.0 | 0.61 | 56 | 19 |
| Y2-90L-8 | 0.55 | 2.17 | 675 | 63.0 | 0.61 | 56 | 22 |
| Y2-100L1-8 | 0.75 | 2.4 | 690 | 71.0 | 0.67 | 59 | 28 |
| Y2-100L2-8 | 1.1 | 3.32 | 690 | 73.0 | 0.69 | 59 | 31 |
| Y2-112M-8 | 1.5 | 4.4 | 700 | 75.0 | 0.69 | 61 | 39 |
| Y2-132S-8 | 2.2 | 6.04 | 710 | 78.0 | 0.71 | 64 | 54 |
| Y2-132M-8 | 3 | 7.9 | 710 | 79.0 | 0.73 | 64 | 63 |
| Y2-160M1-8 | 4 | 10.3 | 720 | 81.0 | 0.73 | 68 | 91 |
| Y2-160M2-8 | 5.5 | 13.6 | 720 | 83.0 | 0.74 | 68 | 103 |
| Y2-160L-8 | 7.5 | 17.8 | 720 | 85.5 | 0.75 | 68 | 128 |
| Y2-180L-8 | 11 | 25.1 | 730 | 87.5 | 0.76 | 70 | 165 |
| Y2-200L-8 | 15 | 34.1 | 730 | 88.0 | 0.76 | 73 | 224 |
| Y2-225S-8 | 18.5 | 41.1 | 730 | 90.0 | 0.76 | 73 | 255 |
| Y2-225M-8 | 22 | 47.4 | 730 | 90.5 | 0.78 | 73 | 292 |
| Y2-250M-8 | 30 | 63.4 | 730 | 91.0 | 0.79 | 75 | 368 |
| Y2-280S-8 | 37 | 77.8 | 740 | 91.5 | 0.79 | 76 | 470 |
| Y2-280M-8 | 45 | 94.1 | 740 | 92.0 | 0.79 | 76 | 520 |
| Y2-315S-8 | 55 | 111 | 740 | 92.8 | 0.81 | 82 | 780 |
| Y2-315M-8 | 75 | 151 | 740 | 93.0 | 0.81 | 82 | 950 |
| Y2-315L1-8 | 90 | 178 | 740 | 93.8 | 0.82 | 82 | 1025 |
| Y2-315L2-8 | 110 | 217 | 740 | 94.0 | 0.82 | 82 | 1080 |
| Y2-355M1-8 | 132 | 261 | 740 | 93.7 | 0.82 | 90 | 1510 |
| Y2-355M2-8 | 160 | 315 | 740 | 94.2 | 0.82 | 90 | 1670 |
| Y2-355L-8 | 200 | 387 | 740 | 94.5 | 0.83 | 90 | 1900 |
| Y2-315S-10 | 45 | 100 | 594 | 91.5 | 0.75 | 82 | 810 |
| Y2-315M-10 | 55 | 121 | 594 | 92.0 | 0.75 | 82 | 910 |
| Y2-315L1-10 | 75 | 162 | 594 | 92.5 | 0.76 | 82 | 1090 |
| Y2-315L2-10 | 90 | 191 | 594 | 93.0 | 0.77 | 82 | 1190 |
| Y2-355M1-10 | 110 | 230 | 590 | 93.2 | 0.78 | 90 | 1510 |
| Y2-355M2-10 | 132 | 275 | 590 | 93.5 | 0.78 | 90 | 1690 |
| Y2-355L-10 | 160 | 333 | 590 | 93.5 | 0.78 | 90 | 1860 |
China ELECTRIC, Shanghai FORTUNE ELECTRIC Co., Ltd. is located in Shanghai China. It has employees more than 1000. Its factory is about 30, 000~50, 000 square meters. It passed ISO 9001: 2008. All its products passed CE Certificate for European Union, UL and CSA for North America, GOST for Russia and SONCAP for Nigeria.
China ELECTRIC is qualified to issue Form E Certificate of Origin for ASEAN customers, China-Pakistan FTA Certificate of Origin and all Preferential Certificate of Origin for Peru, Chile, India, Bangladesh and Sri Lanka. It also permitted to issue CIQ Certificate of Pre-shipment Inspection for exporting to Africa, such as Egypt.
China ELECTRIC is specialized in manufacturing and exporting electrical machines. Its main products are as below:
GW-JJ series aluminum shell mechanical tilting coreless medium frequency induction melting furnace, induction holding furnace;
GWG-J (GW-J) series steel shell hydraulic tilting coreless medium frequency induction melting furnace, induction holding furnace;
HX series electric steel-making arc furnace;
LF series ladle refinery furnace;
Continuous casting machine, CCM;
Z2, Z4 series DC motor;
Z series medium/large size DC motor;
ZYZJ series DC motor for sugarcane mill;
ZJJ800 series DC motor for rolling mill auxiliary drive
ZFQZ series frequently starting/braking DC Motor
ZSN4 series DC Motor for driving cement rotary kiln
Y, Y2, YKK, YKS series medium/large size squirrel-cage motor;
YR, YRKK, YRKS series medium/large size wound rotor slip ring motor;
YLS, YLKK, YLKS, YLST, YLKKT, YLKST series vertical type medium/large size squirrel-cage motor;
VHS series IEC standard Vertical hollow shaft motor;
OHS series NEMA standard Vertical hollow shaft motor;
China ELECTRIC is one of the biggest manufacturer and exporter for medium frequency induction melting furnace, high voltage motor and DC motor.
Customer satisfaction is the mission of China ELECTRIC. Professional, timely and careful is the basic essence and work attitude of China ELECTRIC's every member.
Thanks to the competitiveness both in quality, service and price, China ELECTRIC's products are distributed to most of the countries and regions around the world, such as Bulgaria, Croatia, Romania, Slovenia, Turkey, Armenia, Azerbaijan, Ukraine, Kazakhstan, Uzbekistan, Russia, Iran, Dubai, Yemen, Saudi Arabia, Egypt, Nigeria, South Africa, Pakistan, Sri Lanka, Mexico, Chile, Peru, Bolivia, Uruguay, Argentina, Australia, Singapore, Malaysia, Vietnam, Thailand, Indonesia, Philippines and etc. China ELECTRIC warmly welcomes both former and new customers to further develop business relationship and partnership for prosperous futures.
