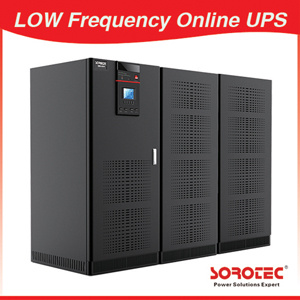

Three Phase Low Frequency Online UPS Gp9335c Series 120-800kVA (3pH in/3pH out)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
GP9335C 120-800KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating Temperature Range: |
0~40 Oc |
| Transient Response Time: |
<5ms |
| Frequency: |
50/60Hz |
| Bypass Frequency Range: |
50/60Hz±10% |
| Bypass Voltage Range: |
-20%~+15% |
| Input Power Factor: |
>0.98(If Harmonic Filter Is Added) |
| Input Soft Start Function: |
0-100% 5-300settable |
| Input Frequency Range: |
45Hz~65Hz |
| Input Voltage Range: |
±25% |
| Rated Frequency: |
50/60Hz |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Sorotec |
Product Description
Three Phase Low Frequency Online UPS Gp9335c Series 120-800kVA (3pH in/3pH out)Key Features:1.6-inch extra large LCD that display 12 language( Chinese/English/Russian/Spanish/French and so on).
2.Intelligent battery management maintains battery automatically to prolong the battery life.
5.Layered independently-sealed ventilation channel and redundant fan, a dust filter embedded make it highly efficient to dissipate heat anf protect the product effectively under severe environment.
6.Extra strong capability to withstand output overload and short circuit, ensuring the system stability and system safety under extreme conditions.
7.Extra wide input voltage and frequency range make it adapt to severe power grid environment.
8.Standard input/output filter improves the system EMC performance.
9.Intelligent battery management maintains battery automatically to prolong the battery life.ApplicationsMainly used in large IDC rooms, bank/securities settlement center, communication network management center, semiconductor product lines and large automation production and its control system. According to the special needs of users was improved, and used in large sports venues, conference room, theater and highway and railway tunnels metal halide lamp lighting system.Technical Specifications of Three Phase UPS GP9335C 120-800KVA| Model | GP9335C 120-800KVA |
| 6P | 6P | 12P | 6P | 12P | 6P | 12P | 6P | 12P | 12P | 12P | 12P |
| Rated Nominal | 120KVA/108KW | 160KVA/144KVA | 200KVA/180KW | 300KVA/270KW | 400KVA/360KW | 500KVA/450KW | 600KVA/540KW | 800KVA/720KW |
| Rated input voltage | 380/400/415VAC 3-phase 4-wire |
| Rated frequency | 50/60HZ |
| Input parameters |
| Input voltage range | ±25% |
| Input frequency range | 45Hz~65Hz |
| Input soft start function | 0-100% 5-300settable |
| Input power factor | >0.98(If harmonic filter is added) |
| Input harmonic current (THDi) | <4.5%(If harmonic filter is added) |
| Bypass |
| Bypass voltage range | -20%~+15% |
| Bypass frequency range | 50/60HZ±10% |
| Output parameters |
| Inverter output voltage | 380/400/415VAC 3-phase 4-wire |
| Voltage stability | ±1%(Steady status),±3%(Transient status) |
| Frequency | 50/60Hz |
| Mains power synchronization window | ±5% |
| Actually measured frequency accuracy (internal clock) | 50/60Hz±0.05Hz |
| Output power factor | 0.9(Output 90kW per 100kVA) |
| Transient response time | <5ms |
| Inverter overload capability | At 0.9 power factor, 110% for 1 hour, 125% for 10 minutes and 150% for 60s |
| Short circuit current from inverter | 3ph 1.5ln for 5seconds,1ph 2.9ln for 5seconds |
| DC Voltage | 360/384/432/480VDC |
| Maximum Bypass Capability | 100% for 100ms |
| Phase Shift Characteristic | with 100% balanced load | <1° |
| with 100% balanced load | <1° |
| Total Harmonic Distortion(THDv) | 100% linear load | <1% |
| 100% non-linear load | <3% |
| System efficiency (full load) | Up to 94% (inverter efficiency is up to 98%) |
| Rectifier output parameters |
| Charger output voltage stability | 1% |
| DC ripple voltage | ≤1% |
| Operating environment |
| Operating temperature range | 0~40°C |
| Storage temperature | -25~70°C(Without battery) |
| Relative humidity | 0~95% No condensation |
| Maximum Operating Height | ≤Elevation 1000m, for elevation above 1000m, derate by 1% for every increase of 100m |
| Noise (1m) | 58-68dB |
| Protection level | IP20 |
| Standard | Safety: IEC60950-1 IEC62040-1-1 UL1778 EMC IEC62040-2 CLASS C2 EN50091-2 CLASS A Design and Test IEC62040-3 |
| Physical Parameters |
| Weight(kg) | 980 | 1420 | 11200 | 1750 | 1350 | 2000 | 1600 | 2200 | 2100 | 2750 | 3690 | 6390 | 7390 |
| Dimension(WxDxh)mm | 900X855X1900 | 1250X855X1900 | 1640X855X1900 | 1250X855X1900 | 1640X855X1900 | 2280X855X1900 | 2385X1000X1950 | 3955X1090X1950 |
Shenzhen SORO Electronics Co., Ltd is a professional manufacturer in the field of power electronics for over 10 years. We have two large production sites and one SMT department in Zhejiang and Shenzhen. SORO has been a leading ente-rprise in the UPS industry in China.
Since established, The company has carried out three strategies: Operation innovation strategy, people-oriented strategy, technical guidance str-ategy, and implemented strict scientific management with full-fledged quality management system.
The company invests 5% of its annual revenue in researching and development every year. We had international advanced equipments for developing \testing and producing. SORO invited the best technical elites at home, meanwhile, the company established perfect cooperateion relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
The company ranks first in passing the ISO9001 international quality system certification. We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC); cUL; FCC.
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran...And so on. We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
SORO would like to cooperate with famous electric enterprise and create the briliant future based on the constant innovation spirit\uncompromising quality\the advanced technology \the standard and efficient service.
