Three Phase Low Frequency Online UPS (TC10K-120K)

Prod Model:	TC10K-120K
Power Source:	Electric Power
Phase:	Three Phase
Protection:	Overvoltage
Type:	Low UPS
Classification:	Power
Brand:	Greenmaster

Product Description

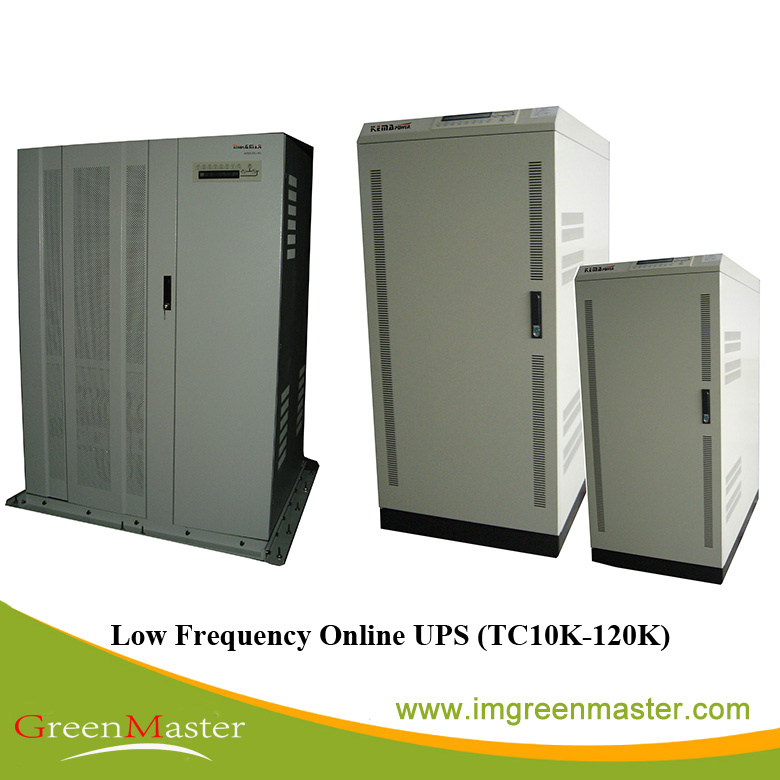

Three Phase Low Frequency Online UPS (TC10K-120K)


* I/P: 220VAC or 110VAC,O/P:220VAC or 110VAC ± 1%


* Capacity:2K/3K/4K/6K/8K/10K/12K/15K/20KVA


* Output PF: 0.8


* Pure sine wave


* Transfer Time:0 ms


* DC Voltage: 2KVA:48VDC,3KVA:96VDC,6/8/10/12/15/20 KVA:192VDC


* Bat.:External Batterys


* Charge Current: 6A



Key feature:


1.Three phase in, three phase out


2.Microprocessor control


3.100% unbalance protection design


4.True on-line double conversion design providing all power protection


5.Isolated output


6.Sine wave pulse width modulation


7.IGBT inverter design.


8.Wide Input voltage windows


9.Pure sine wave output less than 3% THD


10.Expandable battery run time


11.Generator compatible


12.Cold start


13.Load/Battery power meter display


14.Overload, on-line, battery status LED/LCD


15.Advanced Battery Management


16.Automatic charging in UPS off mode


17.Smart RS-232 communication port


18.Optional SNMP card


Product Show:

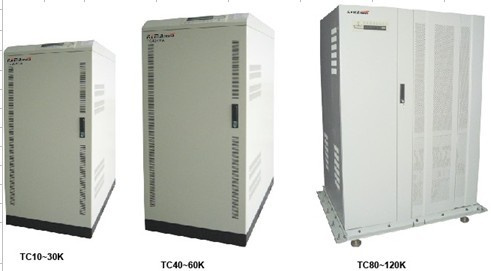

Technical Specifications


MODEL		TC10K	TC15K	TC20K	TC30K	TC40K	TC60K	TC80K	TC100K	TC120K
Capacity		10KVA	15KVA	20KVA	30KVA	40KVA	60KVA	80KVA	100KVA	120KVA
Power		8KW	12KW	16KW	24KW	32KW	48KW	64KW	80KW	96KW
Power Factor		0.8
Input	Phase	3 phase 4 wire and ground
	Voltage Range	380V±20%(3 phase), phase voltage 220V
	Frequency Range	45 - 65Hz
	Rectifier	3 phase 6 pulses, 12 pulses is optional
Output	Phase	3 phase 4 wire and ground
	Wave form	Pure sine wave
	Crest Factor	3:01
	Rated voltage	380/400/415V optiona+ -1% for static load, 5% forfluctuant load
	Phase voltage setting	200 - 244VAC, pls confirm when order
	Transient response	+/-5%, 10ms
	Frequency	50 / 60 Hz + / - 0.05%
	Total harmonic   distortion	< 3%(linear load, < 5%( nonlinear load)
	Short circuit current	Short current for 0.1s (200% current)
	Overload capacity	Overload 125% for 10 Mins, 125%-150% for 1min .automatically resume when load become normal
Battery	Battery	Maintenance free lead-acid cell
	DC Voltage	384VDC							396VDC
	Max Charge Current	6-30A adjustable
Bypass	Type	Static state + manual maintenance bypass
	Input Phase	3 phase 4 wire and ground
	Input voltage range	15% - 25% (the front control panel selectable)
	Transfer time	Inverter / bypass transfer switch time(Overload): 0ms inverter / bypass transfer switch time (fault inverter) 1ms
Efficiency	Whole unit	>80%
	Inverter	91	91	92	92	93	93	95	95	95
Remote signaling		Dry contact (battery low, battery discharging, bypass/ fault); output 12Vdc/80mA,Optional parts
Communication interface		RS232 ( SNMP , modem optional )
Running temperature		0-40 degree Celsius
Relative Humidity		Less than 95% (without condensing)
Noise at 1 M		less than 60 dB
Degree of protection		IP20
Applicable Standards		EN50091-1-EMC EN50091-2liv.A
Product size(mm)		780*580*1170				1000*660*1450		1200*900*1820
product weight(Kg)		180	220	250	300	400	470	640	740	740
Package size(mm)		945*745*1395				1135*810*1755		1450*1110*1880
Package weight(Kg)		200	270	300	350	480	550	700	800	800
