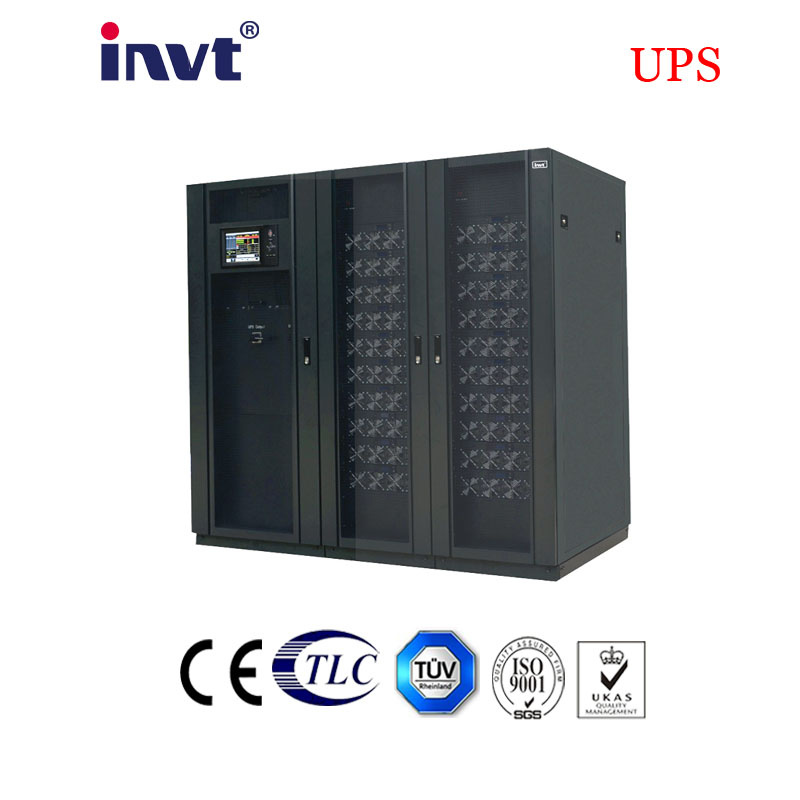

| Prod Model: |
RML120/20X |
| Capacity: |
120kVA |
| Power Module: |
Pml20X (20kVA/16kw) |
| Frequency Range: |
40Hz-70Hz |
| Power Factor: |
0.8 |
| Voltage: |
200V/208V/220V |
| Voltage Regulation: |
1.5% |
| Crest Factor: |
3:1 |
| Charge Power: |
20%*System Power |
| IP Class: |
IP20 |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Brand: |
Invt |
Product Description
Independent LCD for Each Power Module

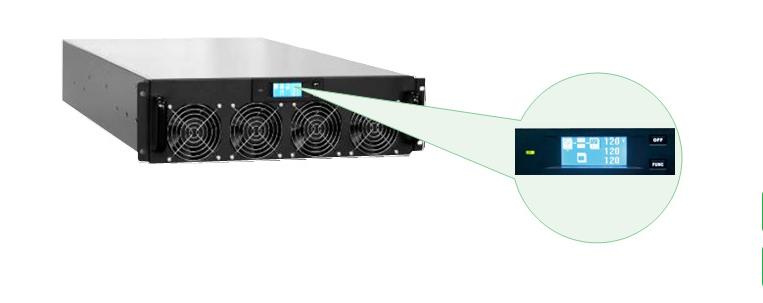

Each power module has an independent LCD, gives users' direct overview of status data and alarms in real time.
Friendly Interface
Provide graphical and text based information of alarms, status data, instructions that users can have more friendly and safer operation.
Isolated Air Flow

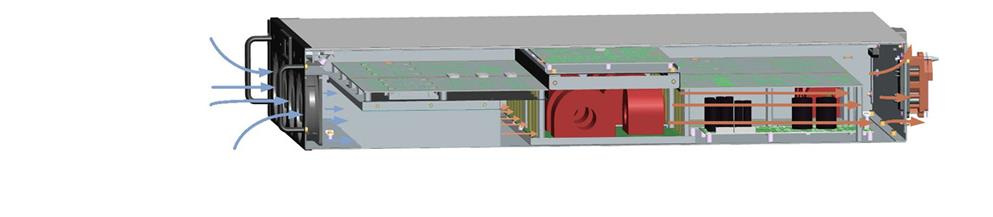

The dedicated and redundant hot-swappable power modules take the most unique structure design. In this design, the PCB boards and heat-sinkers are in two completely different layers, which allows the UPS run in dusty environments, significantly improving its stability and environmental adaptability.
- Cooling air flows in the lower layer, keeping the upper PCB free of dust
- One air flow channel ensures fans redundancy, even one fan fails, power module can run normally
Unique Design for High Reliability

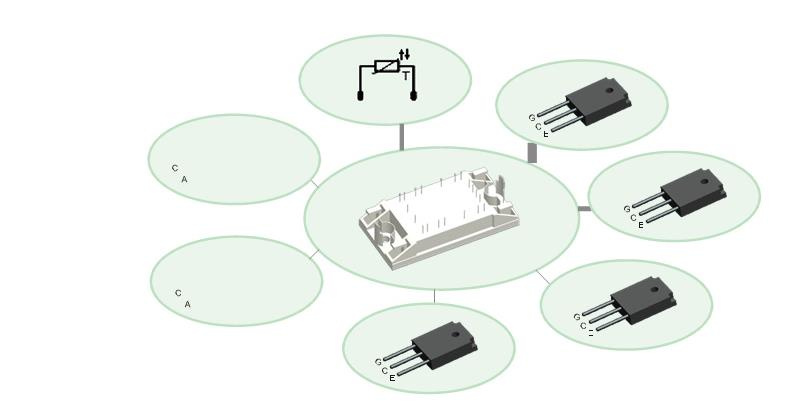

Instead of discrete IGBT and SCR components, RML series UPS uses modular IGBT and SCR in Rectifier and Inverter, bringing in extremely high reliability.
- All components in one module, less fault points, higher reliability
- All components integrated as one modular design, smaller disparity
- Less space needed, UPS with compact design and higher power design
- Integrated inner thermal sensors, display IGBT inner temperature directly
High Density ,Modular, Scalable

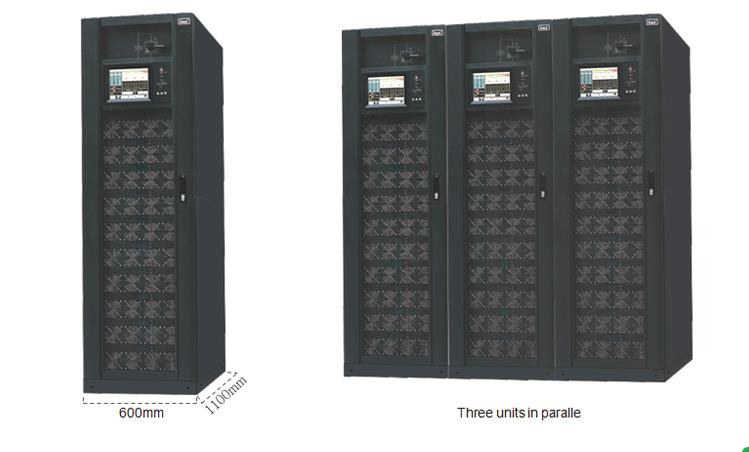

- High power density, footprint for 200kVA is 0.66m², power density 240kW/m², saving valuable data center space
- Scalable from 20kVA to 600kVA, max 30 power modules in parallel
- Inherently N+X redundant

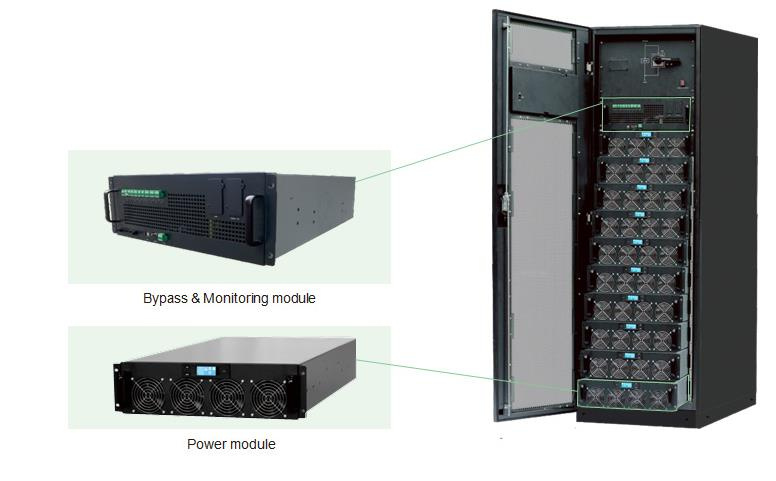

- Hot-swappable power module and bypass & monitoring module
- Additional charging module, extra charging current 50A×N for long time back up application
ODEL | RML400/20X | RML200/20X | RML120/20X | RML300/15X | RML150/15X | RM090/15X |
Capacity | 400kVA/320kW | 200kVA/160kW | 120kVA/96kW | 300kVA/300kW | 150kVA/150kW | 90kVA/90kW |
Power module | PML20X (20kVA/16kW) | PML15X (15kVA/15kW) |
INPUT |
Phase | 3 Phase + Neutral + Ground, 200V/208V/220V (line-line) |
Voltage range | 166-261Vac (line-line), full load;
166-125Vac (line-line), load derated from 100%-75% linearly |
Frequency range | 40Hz-70Hz |
Power factor | >0.99 |
THDi | THDi<3% @ 100% linear load |
OUTPUT |
Voltage | 200V/208V/220V |
Voltage regulation | 1.5% |
Power factor | 0.8 | 1.0 |
THDu | THD<1% (linear load), THD<6% (non-linear load) |
Crest factor | 3:1 |
Overload capability | 110% for 1 hour; 125% for 10 min; 150% for 1 min; >150% for 200ms |
BATTERY |
Voltage | ±120VDC |
Charge power precision | ±1% |
Charge power | 20%*System Power |
SYSTEM |
System efficiency | Normal mode:>93%; ECO mode:>98%; Battery mode:>93% |
Display | 10.4" color touch screen LCD + LED + Keyboard |
IP class | IP20 |
Interface | Standard: RS232, RS485, Dry contacts, USB; Optional: SNMP, Expansion dry contact card |
Operation/Storage temperature | 0-40ºC/-40-70ºC |
Relative humidity | 0-95% (non-condensing) |
Noise | 72dB @ 100% load, 68dB @ 45% load (1 meter away) | 65dB @ 100% load, 62dB @ 45% load (1 meter away) | 72dB @ 100% load, 68dB @ 45% load
(1 meter away) | 65dB @ 100% load, 62dB @ 45% load
(1 meter away) |
PHYSICAL |
Weight(kg) | Cabinet | 660 | 220 | 165 | 660 | 220 | 165 |
Power Module | PML20X: 34 | PML15X: 32 |
Dimension (W*D*H)
(mm) | Cabinet | 2000*1050*2000 | 600*1100*2000 | 600*1100*1600 | 2000*1050*2000 | 600*1100*2000 | 600*1100*1600 |
Power Module | PML20X/ PML15X: 460*790*134 |
The DM series modular UPS provides the compact footprint of less than 4.5sq.m with maximum capacity of 900kVA in parallel, designed to protect any critical load for medium and larger data center achieving maximum availability. The DM series feature the latest technology of 3-level technology and PFC input control, which guarantees high efficiency of 94% and ultra-reliability, making it an excellent choice for medium and larger facilities.
As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.
The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.
INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
