| Prod Model: |
5IK90 |
| Motor: |
AC Motor |
| Gearbox: |
80mm |
| Torque: |
High Torque |
| Rated Speed: |
1250-2700rpm |
| Voltage: |
110V 220V Gear Motor |
| Gears: |
Metal Gear |
| Duty: |
Cont |
| Power: |
6W-180W |
| Material: |
RoHS Material |
| Frequency: |
50Hz |
| Number Of Stator: |
Single-Phase |
| Function: |
Driving |
| Certification: |
Ce RoHS |
| Brand: |
Kingly |
Product Description

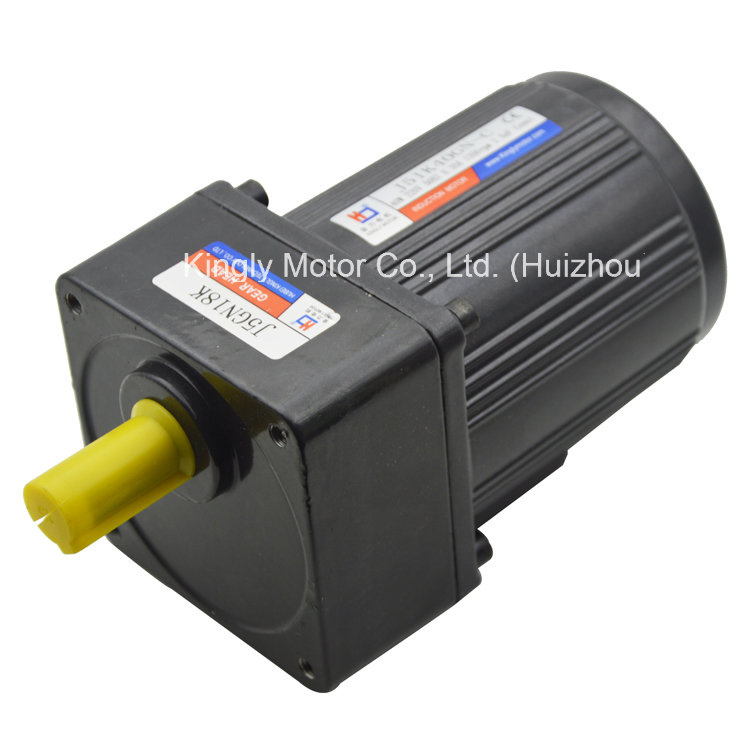

Specification: 80mm Ac Induction Motor 50HZ 90W 1ph 110v 220v 380v
Power:6- 250W
Voltage:110V to 380V 1PH/3PH
Ruduction Ratio:1:3-1:150
Rated Speed :1250rpm-2700rpm
Rated Torque:3.0-6.4kgf.cm
Gearbox Diameter:80mm
Capacitor/Ve:20.0uF/250 5.0uF/450
Motor dimensions:D90mmxL141mm
Length of Gear: 65mm
Frequency:50HZ/60HZ
Poles:2/4 Duty:Cont
Typical Aplications:
Packing Machine Paper feeder, Accessory automobile
Electronic lock optic equipment
Monitor, Precision instrnment
Robot, Financial apparatus
Ad equipment, Audio equipment
Healthful equipment
Also We can design the motor according to your Voltage, Speed, Shaft length and so on

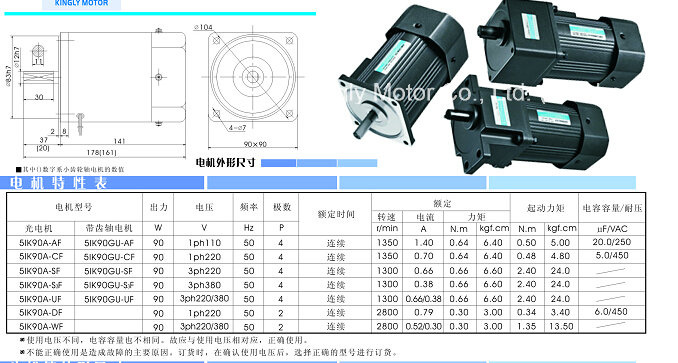

Specification:| Motor Specification |
| Motor Model | Power | Voltage | Frenquency | Poles | Duty | Rated | | Starting Torque | Capacitor/Ve |
| Speed | Current | Torque |
| Optical Motor | Motor with Gear and Shaft | W | V | Hz | P | r/min | A | N.m | kgf.cm | N.m | kgf.cm | uF/VAC |
| 5IK90A-AF | 5IK90GU-AF | 90 | 1ph110 | 50 | 4 | Constant | 1350 | 1.40 | 0.64 | 6.40 | 0.50 | 5.00 | 20.0/250 |
| 5IK90A-CF | 5IK90GU-CF | 90 | 1ph220 | 50 | 4 | Constant | 1350 | 0.70 | 0.64 | 6.40 | 0.48 | 4.80 | 5.0/450 |
| 5IK90A-SF | 5IK90GU-SF | 90 | 3ph220 | 50 | 4 | Constant | 1300 | 0.66 | 0.66 | 6.60 | 2.40 | 24.0 | |
| 5IK90A-S3F | 5IK90GU-S3F | 90 | 3Ph380 | 50 | 4 | Constant | 1300 | 0.38 | 0.66 | 6.60 | 2.40 | 24.0 | |
| 5IK90A-UF | 5IK90GU-UF | 90 | 3Ph220/380 | 50 | 4 | Constant | 1300 | 0.66/0.38 | 0.66 | 6.60 | 2.40 | 24.0 | |
| 5IK90A-DF | | 90 | 1Ph220 | 50 | 2 | Constant | 2800 | 0.79 | 0.30 | 3.00 | 0.34 | 3.40 | 6.0/450 |
| 5IK90A-WF | | 90 | 3Ph220/380 | 50 | 2 | Constant | 2800 | 0.52/0.30 | 0.30 | 3.00 | 1.35 | 13.50 | |

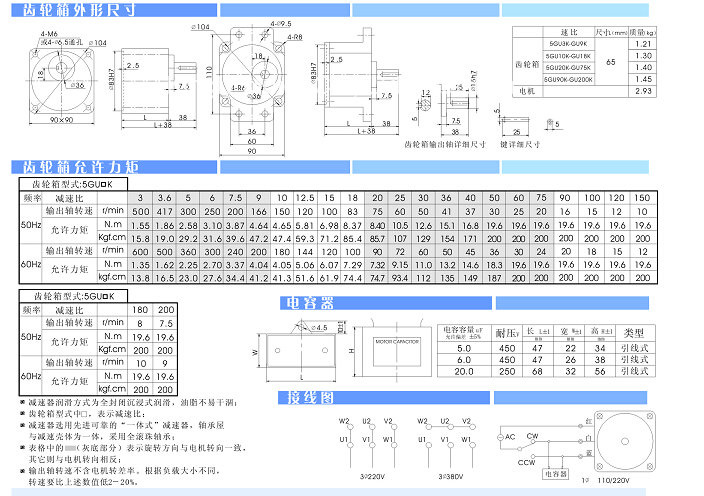

| | Reduction Ratio | Length(mm) | Weight(kg) | | | | | | | | | | |
| Gearbox | 5GU3K-GU9K | 65 | 1.21 | | | | | | | | | | |
| 5GU10K-GU18K | 1.30 | | | | | | | | | | |
| 5GU20K-GU75K | 1.40 | | | | | | | | | | |
| 5GU90K-GU200K | 1.45 | | | | | | | | | | |
| Motor | | | 2.93 | | | | | | | | | | |
