Three Phase off Grid Solar Inverter with Strong Loading Ability

Name: Three Phase off Grid Solar Inverter with Strong Loading Ability
Brand: all-electronics-online.com
SKU: 816413555
Availability: InStock
Rating: 4.5 (103 reviews)

Price:	US $ 1450-12650/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CNS330
Efficiency:	>=95%
Phase:	3φ4W+Gnd
Display:	LCD/LED

Product Description

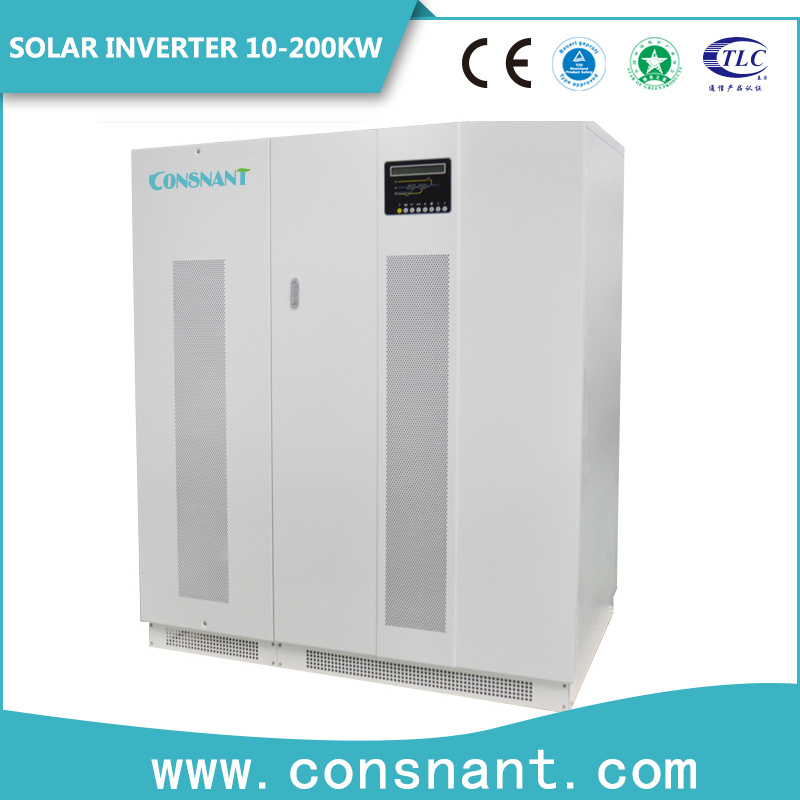

CNS330 Series Three Phase Off Grid Solar Inverter 8-200KW
Strong loading ability
Possible to use on parallel 6 units maximum

Characteristics:
Advanced IGBT module with high reliability.Realize various intelligent control functions basing on DSP full digital control technology.Perfect production function, higher system reliability.Data communication through RS232 port or dry contact to realize monitoring operation status.Aesthetic appearance, functional integrity, friendly human-machine interface

CNS330 10KVA-250KVA
Model(KVA)	10		20	30	40	60	80	100	120		160		200		250
Capacity (KW)	8		16	24	32	48	64	80	96		128		160		200
Input
Battery Voltage		384VDC
Maximum Recharge Current	0.2×C10
AC Ripple Voltage	<1%
Inverter Output
Rated Power (KVA)	10		20	30	40	60	80	100	120		160		200		250
Active Power (KW)	8		16	24	32	48	64	80	96		128		160		200
Phase	3φ4W+GND
Voltage(Vac)	L - N: 230 L - L: 400 (200,208,220 are available for customization)
Regulation of the Output Voltage		348~424 Vac phase/neutral(from control panel)
Protection	Output voltage circuit, overload, over-temperature, battery low voltage output over/low voltage
LCD Display	Output voltage, frequency, battery voltage, load, DC current, ect.
LED Display		Work status of inverter, fault indication and overloading
Frequency	50/60Hz configurable
Overload	110% 125% 150% of the rated current for 5h/10'/1'
Frequency Stability	±0.05% on main failure; ±2%(selectable from ±1% to±5%)with main supply present
Wave Form	Sine wave, THD<3% at linear load
Efficiency	>=95%
Communication	RS232/RS485, dry connection communication signal
Operation Temperature	0ºC to +40ºC
Relative Humidity	<95% non condensing
Colour		Light grey(RAL 7035)
Noise	54dBA at 1m
Protection Degree	IP20
Efficiency Smart Mode	Up to 98%
Compliance	Safety: EN 62040-1-1(Directive 2006/95/EC); EMC:6200-2(Directive 2004/108/EC)
Weight(KG)N.W	205		215	243	293	234	456	517	740	755		1138		1350
	5557301210						8007301400		11157301400			14208501600

STANDARD: Conform to GB/IEC regulation: EMC: GB7260.2/IEC62040-2
-GB/17626.2~5/IEC61000-4-2~5 SAFETY:GB4943
Note: Product specifications are subject to change without further notice.

Shenzhen CONSNANT Technology Co., Ltd. (simple name: CONSNANT) is a professional manufacturer engaged in research, development and production of UPS (Uninterruptible Power Supply) including the Modular UPS, Outdoor & Indoor UPS, Industrial special UPS, Low Frequency & High Frequency Online UPS and Solar Power System both for home appliance and telecom equipments.

Our product has obtained the CE, ISO 9001, ISO 14001 and local Chinese TLC certificates. Having reached good sales results in China, we are now expanding our sales overseas.

We are proud of the fact that most of our company's engineering staff is well-qualified and has gained experience in relevant fields more than 10 years. In order to protect your equipment from electrical supply network instability, we offer innovative solutions that obtain higher availability systems, improve efficiency and offer flexible solutions to meet specific needs and range of application. The UPS product is widely used in data and computing centers, finance institutions, banks, within industry and medical fields.

We welcome any kind of collaboration, will enjoy any opportunities of dealing with new costumers: From distributors to ultimate consumers, undertake both wholesale and retail orders, including the sale of finished goods or parts.

If you start work with us, you will not only get high-quality product at reasonable price, but also maintain the profitable conditions for further years.

We are located in the world-famous High-Tech center - Shenzhen city, China. Our factory is close to airport. If you are lucky to visit the city, you are kindly welcomed to visit our factory.
