| Prod Model: |
S9, S9-M SERIES |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Energy Saved: |
Long-Term Reliable Service Life |
| Free From Untanking: |
Freem From Maintenance |
| Low Noise: |
Impacted Structure in Design |
| Small Size And Artistic Appearance: |
Corrugated Tank Is Small Size in Good Looking |
| Application: |
Power |
| Phase: |
Three |
| Cooling Method: |
Oil-immersed Type Transformer |
| Brand: |
People |
Product Description

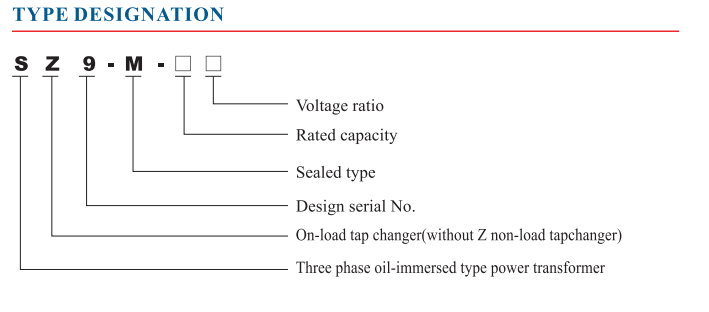

General

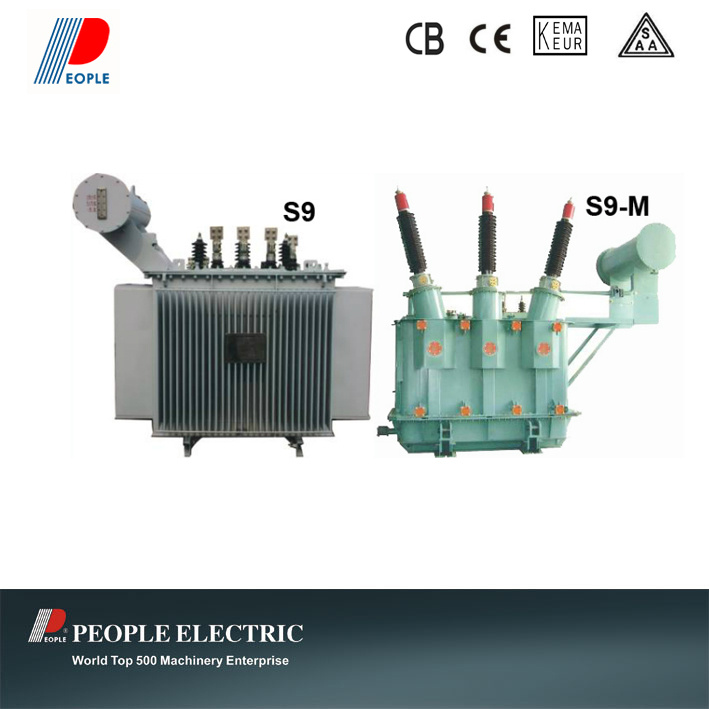

Different from normal type, S9, S9-M series three phase oil-immersed transformer is cooled by the corrugated plate of tank without conservator. It is applicable to10kV-110kV, 50Hz power transmission and distribution system for power supply and lighting in industrial and agricultural field.
FEATURE
1. Energy saved:
Compared with old type S7, no-load loss decreases 10.25% averagely and on load current decreases 37.9%, which means 18.39% operation cost is reduced.
2. Long-term reliable service life:
Fully enclosed transformer tank and rim shall be bolted together or welded firmly. Isolation between oil and air keeps insulation away from moisture, which lowers insulation aging and mproves service life.
3. Free from untanking:
Free from untanking before operation, so its cost is saved.
4. Free from maintenance:
5. Low noise:
Impacted structure in design, new material and new technology adopted and low noise.
6. Small size and artistic appearance
Owing to the corrugated plate used for radiation, oil volume is changed by adjustment and compensation through expansion and shrinkage of corrugated plate when the temperature of oil is changed. Corrugated tank is small size in good looking.
OPERATION CONDITION
1. Max ambient temperature: +40º C
2. Min ambient temperature: -30º C(outdoor type)
3. Daily mean temperature: <30º C annual mean temperature<20º C
| Rated Capacity (kVA) | Voltage combination | No-load loss(W) | Load Loss (W) | No-load Current (%) | Impedance Voltage (%) | Weight | Track Gauge A×B (mm) | Outline dimension(mm) L×W×H |
| High voltage (kV) | TappingRange | Low Voltage | Vector Group | | Insulation oil weight | |
| 10 | 6; 6.3; 6.6; 10; 10.5; 11; | ±2×2.5%; or±5% | 0.4 | Yyn0 or Dyn11 | 70 | 300 | 2.4 | 4.0 | 75 | 50 | 175 | 400×400 | 680×450×910 |
| 20 | 100 | 500 | 2.3 | 115 | 65 | 235 | 400×400 | 720×580×960 |
| 30 | 130 | 600 | 2.1 | 150 | 70 | 300 | 400×400 | 770×600×1000 |
| 50 | 170 | 870 | 2.0 | 215 | 95 | 405 | 400×400 | 840×610×1030 |
| 63 | 200 | 1040 | 1.9 | 240 | 100 | 445 | 400×450 | 845×6300×1050 |
| 80 | 250 | 1250 | 1.8 | 285 | 110 | 505 | 400×400 | 890×640×1070 |
| 100 | 290 | 1500 | 1.6 | 330 | 115 | 570 | 400×450 | 1060×620×1140 |
| 125 | 340 | 1800 | 1.5 | 375 | 135 | 650 | 400×550 | 1120×6300×1180 |
| 160 | 400 | 2200 | 1.4 | 465 | 150 | 735 | 550×550 | 1200×645×1170 |
| 200 | 480 | 2600 | 1.3 | 525 | 160 | 895 | 550×550 | 1250×660×1210 |
| 250 | 560 | 3050 | 1.2 | 655 | 200 | 1075 | 550×650 | 1320×740×1270 |
| 315 | 670 | 3650 | 1.1 | 730 | 235 | 1240 | 550×650 | 1345×760×1305 |
| 400 | 800 | 4300 | 1.0 | 860 | 265 | 1375 | 550×650 | 1395×780×1360 |
| 500 | 960 | 5150 | 1.0 | 4.5 | 1060 | 340 | 1705 | 660×750 | 1520×840×1390 |
| 630 | 1200 | 6200 | 0.9 | 1225 | 350 | 2015 | 660×750 | 1535×850×1455 |
| 800 | 1400 | 7500 | 0.8 | 1430 | 440 | 2405 | 820×850 | 1650×950×1540 |
| 1000 | 1700 | 10300 | 0.7 | 1555 | 470 | 2500 | 820×850 | 1820×1100×1580 |
| 1250 | 1950 | 12000 | 0.6 | 1820 | 620 | 3170 | 820×850 | 1840×1120×1605 |
| 1600 | 2400 | 14500 | 0.6 | 2220 | 640 | 4600 | 820×900 | 1930×1160×1780 |
| 2000 | 2900 | 17500 | 0.6 | 3095 | 975 | 5600 | 820×900 | 1980×1180×1950 |
