| Prod Model: |
S9-M-30~1600KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated High Voltage: |
6/6.3/10 Ka |
| Tapping Range: |
±5% |
| Rated Low Voltage: |
0.4 |
| Application: |
Audio |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Ville |
Product Description
Application:

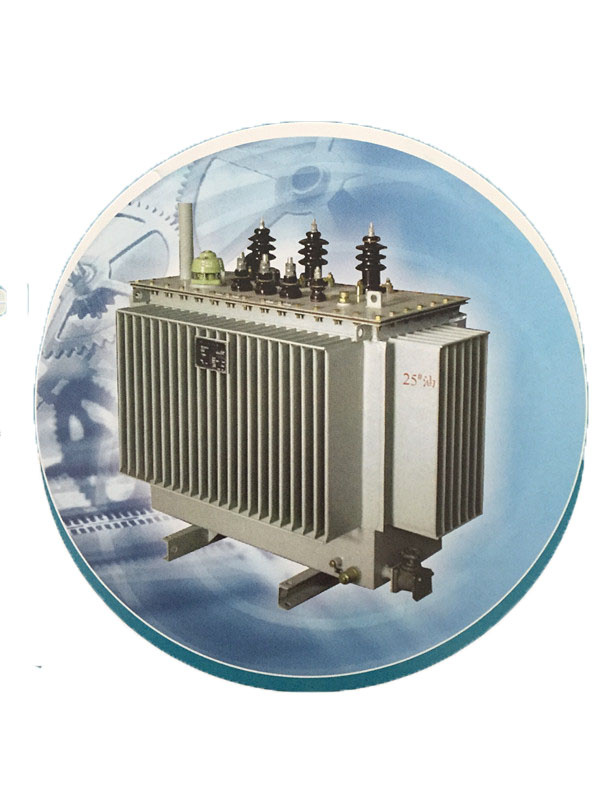

S9-M-10/30~1600KVA Three phase Oil-immersed Sealed Transformer is used in 10KV,50HZ, power transmission and distribution system for power distribution in industrial and agricultural fields, power supply and lighting.
Product Features:
1. Energy saving
In comparison with old type of S7, the average no-load power loss of S9 decreases 10.25%, the no-load current decreases
37.9%, and the average operation cost decreases 18.9% than the old type.
2. Long service life
Transformer oil tank is fully sealed. The oil tank and its edge shall be connected by bolts or welded. The transformer oils
never touch with air, so it can extend service life.
3. High reliability
Some sealing parts of transformer oil tank have been improved and a higher process has been applied in sealing, so
reliability should be guaranteed.
4. Small area occupied
A kind of corrugated-plate radiator applied in S9-M Transformers, through thermal-expansion and shrinking of the
corrugated-plate while oil temperature changes, it could be instead of oil storage box. The shape of corrugated-plate radiators
is beautiful and occupies a small area.
| Products Model | Rated Capcity (kVA) | Rated Voltage | Symbol | No-load Loss (W) | Load Loss (W) | No-load Current (%) | Impedance Voltage (%) | Weight (kg) | Dimensions (length*width*height) |
| High Voltage (kA) | Tapping Range | Low Voltage |
| S9-M-30/10 | 30 | 6 6.3 10 | ±5% | 0.4 | Y,yn0 | 130 | 600 | 2.1 | 4 | 350 | 1051*641*1009 |
| S9-M-50/10 | 50 | 170 | 870 | 2.0 | 432 | 1096*656*1036 |
| S9-M-63/10 | 63 | 200 | 1040 | 1.9 | 474 | 1116*666*1085 |
| S9-M-80/10 | 80 | 250 | 1250 | 1.8 | 542 | 1146*681*1085 |
| S9-M-100/10 | 100 | 290 | 1500 | 1.6 | 596 | 1161*686*1115 |
| S9-M-125/10 | 125 | 340 | 1800 | 1.5 | 701 | 1206*701*1145 |
| S9-M-160/10 | 160 | 400 | 2200 | 1.4 | 791 | 1251*711*1160 |
| S9-M-200/10 | 200 | 480 | 2600 | 1.3 | 913 | 1293*738*1201 |
| S9-M-250/10 | 250 | 560 | 3050 | 1.2 | 1053 | 1338*753*1236 |
| S9-M-315/10 | 315 | 670 | 3650 | 1.1. | 1245 | 1398*768*1293 |
| S9-M-400/10 | 400 | 800 | 4300 | 1.0 | 1506 | 1498*858*1365 |
| S9-M-500/10 | 500 | 960 | 5150 | 0.9 | 4.5 | 1744 | 1573*893*1395 |
| S9-M-630/10 | 630 | 1200 | 6200 | 0.8 | 2102 | 1658*928*1515 |
| S9-M-800/10 | 800 | 1400 | 7500 | 0.7 | 2506 | 1827*1067*1612 |
| S9-M-1000/10 | 1000 | 1700 | 10300 | 0.6 | 3002 | 1932*1172*1712 |
| S9-M-1250/10 | 1250 | 1950 | 12000 | 0.5 | 3424 | 1977*1187*1802 |
| S9-M-1600/10 | 1600 | 2400 | 14500 | 0.4 | 4036 | 2465*1675*1805 |
Our advantages:
Quality Assurance
--From the very beginning, VILLE ensures quality in every step to achieve the best quality.
Experience Sharing
--With more than 30 years' experience in power industry, VILLE brings you an optimized solution.
Global Service
--Wherever you are, VILLE global network will support and provide you with value.
Quick Response
--In response to your needs without delay, VILLE knows the value of your time.
Packaging Details: The accessories packed in plywood cases,the main body in nude.
Our Best Service For You
1. Pre sale service
A. Make technical solution
B. Send quotation, technical data sheet and drawing
C. Prepare power transmission plan, testing plan,and shipment plan
2. In sale service
A. Supervise the manufacturing schedule totally in accordance with the plan
B. Send photos to customer during every manufacturing process(hold point)
C. Inform the customer one week before testinng.
3. After sale service
A. Installation and commissioning, training the workers
B. Quick response within 12 hours any time
C. Provide 12 months gurantee period normally.
