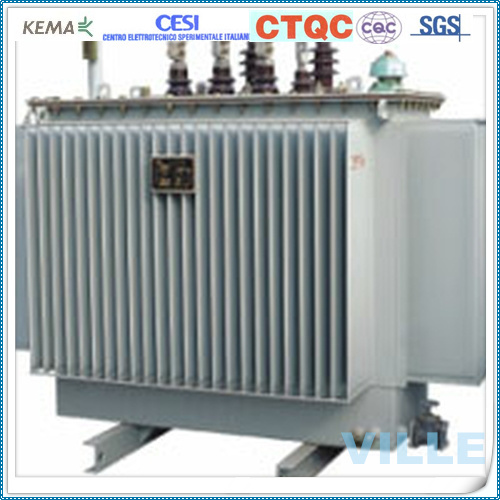

Three-Phase Oil-Immersed Type Fully Sealed Power Transformer
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
SZ10/11 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
10kv |
| Frequency: |
50Hz |
| Capacity: |
30~2500kVA |
| Vender Group: |
: Yyn0;Dyn11 |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Application: |
Audio |
Product Description
The hermetically sealed transformer is the transformer of which inner tank is totally isolated from the outside atmosphere, its volume changes with shrinkage and expansion of the corrugated tank sides. Moisture and oxygen can not enter the tank from outside, thus slowing down the aging of the insulating material. It doesn't need core-lifting check before operation or maintenance after putting into operation, which greatly improves the reliability of transformer. It adopts PCCAD as design software, and meets IEC60076, GB1094 standard, and has passed the ISO9001 quality system certification. The coils, wound by high intensity enameled wire(or paper wrapped)with cylinder(or disc) structure and ampere-turn balance, reasonable insulation structure, have a good short-circuit withstand capacity. The fastening parts are locknuts. Even after long-distance transportation, they are not loose. All sealing material is made of high quality acrylic rubber, which can effectively prevent againest light-aging, electricity aging and heat aging. It is equipped with "remote sensor" signal thermometer and pressure relif valves to enhance the reliablity of transformers.
It is suitable for 10kV, 50Hz power transmission and distribution, It can be used in residential areas, commercial streets, industrial and mining enterprises and rural areas for power supply and lightings
This product has the characteristics of energy-saving, long service life, high operation reliability and small occupation area.
Without such device like conservator and air breather, it ensures that the transformer oil is not in contact with air. So commonly, the transformers can be used for continuously for 20 years without any particular treatment.
Excellent rubber is adpoted in the sealing parts
Vacuum oil filling process is used.
Capacity: 30~2500kva
Voltage: 6, 6.3, 6.6, 10, 10.5, 11± 5% or ± 2x2.5% LV: 0.4KV
Vender group: Yyn0; Dyn11
Impedance: 4% 4.5%
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
