Three Phase Outdoor Combined Transformer

Name: Three Phase Outdoor Combined Transformer
Brand: all-electronics-online.com
SKU: 797712535
Availability: InStock
Rating: 4.9 (123 reviews)

Price:	US $ 995-1000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JLSZXW3-17.5 (12.47kV, 24kV)
Application:	Position Sensor
Type:	Combined Transformer
Phase:	Single, Three

Product Description

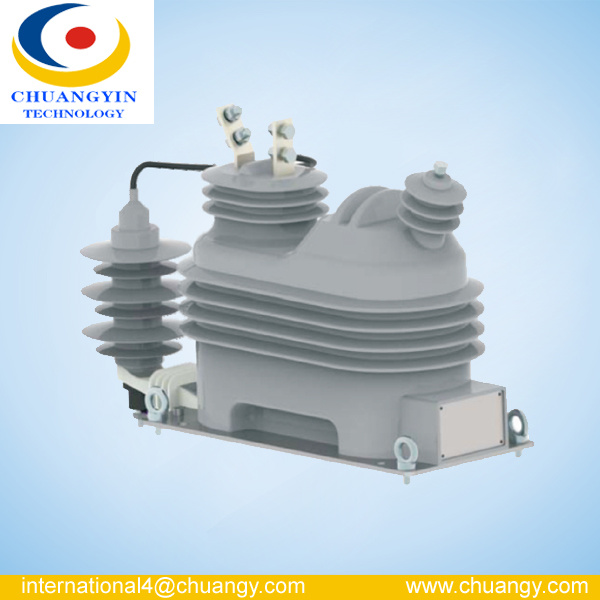

JLSZXW5-17.5 Outdoor Combined Transformer

Main technical parameter
Rated frequency: 50/60Hz:
Rated insulation level: 36/70/170kV (IEC) or 40.55/95/200kV (GB)

Type	Rated Voltage ratio(V)	Accuracy class	Rated output (VA)	Rated current ratio	Accuracy class	Rated output (VA)
JLSZXW5-17.5F	10/1.732 110/1.732 120/1.732 100 110 120	0.2 0.5 1	15 30 50	20-40/5	0.2S 0.2 0.5S 0.5 1	10 12.5 15
				50-100/5
				…
				400-800
				500-1000
				600-1200

Note:Upon request we are glad to offer transformers according to other technical specs.

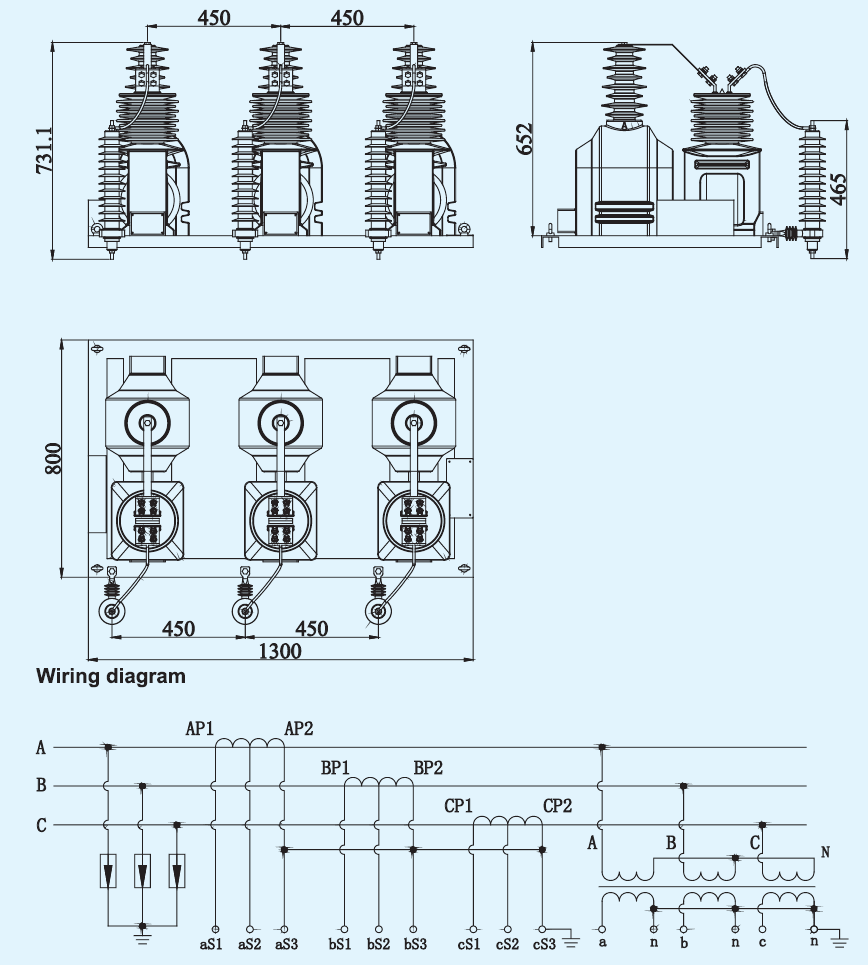

Outline Drawing

Note:
Please browse our website and download product catalogue for detailed information.
The above parameter is only for reference as typical data, customer-made is subject to customers' request.
